GASOLINE ENGINE 8.1 S INBOARD MODELS
Page 36 of 58
Electrical Connections

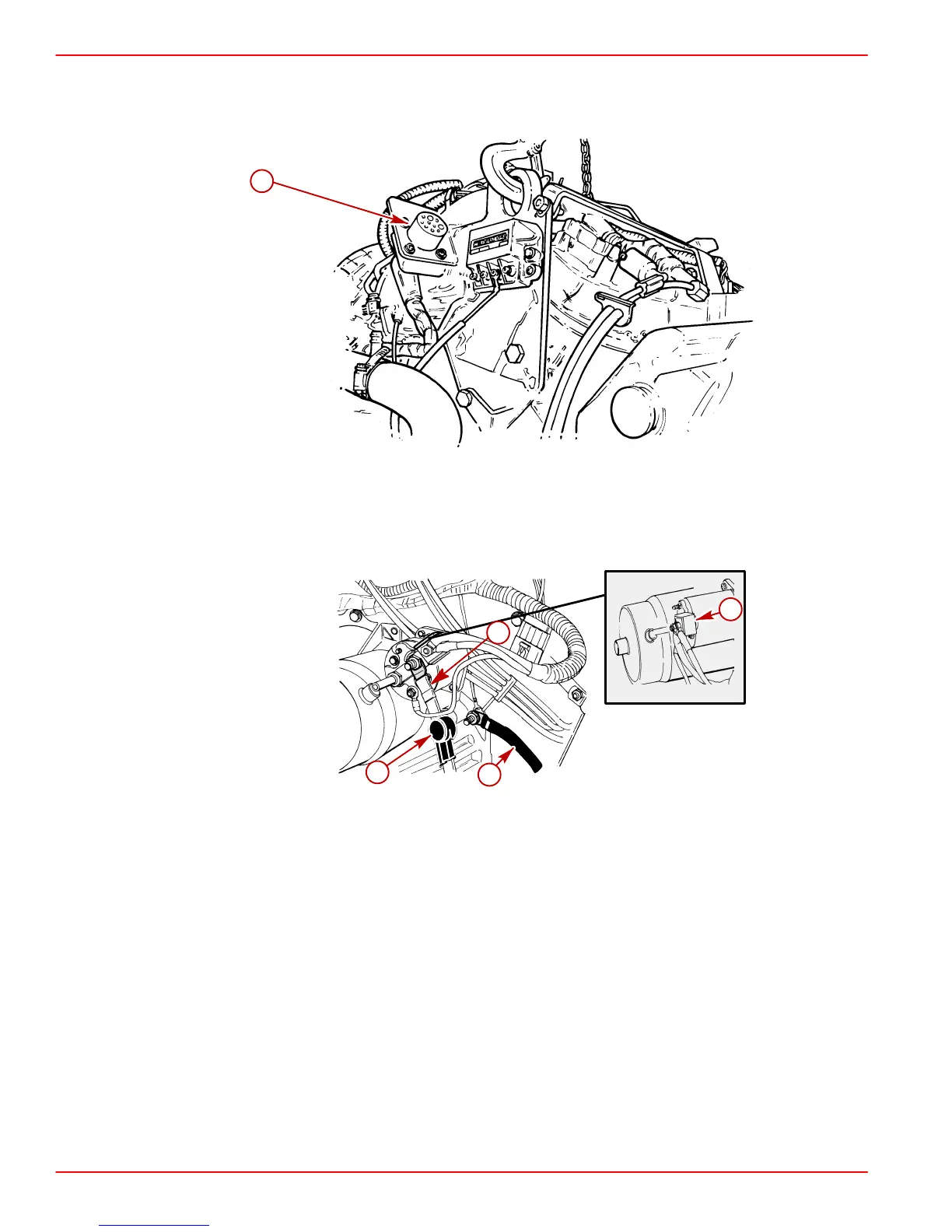

1. Connect the instrumentation wiring harness to engine harness plug at location shown.
a
76938
a-Engine Harness Plug
2. Coat both battery cable terminals with Quicksilver Liquid Neoprene. After liquid
neoprene has dried, slide rubber boot over positive cable connection.
74660
74503
b
d
a
c
a-Negative (BLK) Battery Cable
b-Positive (RED) Battery Cable
c-Rubber Boot (Shipped with Engine)
d-90 Amp Fuse - DO NOT Remove
3. Drape battery cables over top of engine to prevent them from getting in the way during
installation.
