GASOLINE ENGINE 8.1 S INBOARD MODELS
Page 4 of 58
Serial Number Decal Placement
There are three engine serial number decal strips provided with each power package. One
should be used for each of the following:
• Engine Specification Decal
• Warranty Registration Card
• Operation and Maintenance Manual identification page.

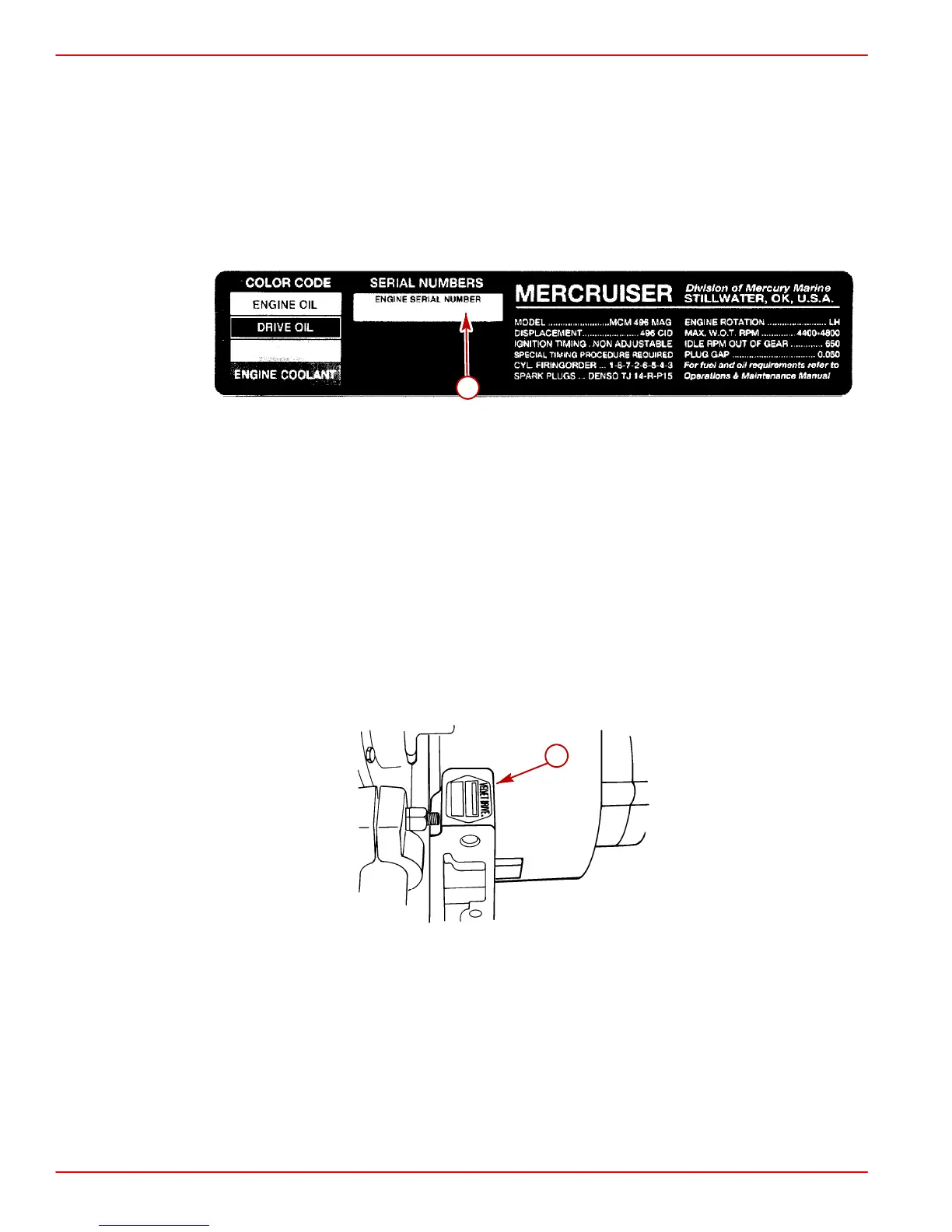

Affix engine serial number decal to specification / serial number decal in position shown.
77643
a
a-Specification/Serial Number Decal
Engine Rotation
Engine rotation is described when observed from the rear of the engine (transmission end)
looking forward (water pump end).
Engine rotation is indicated on engine specifications and serial number decal.
Transmissions
Velvet Drive Transmissions
On the Velvet Drive 5000A and 5000V Transmissions the transmission identification plate
indicates gear ratio, serial number and model.
71778
a
Velvet Drive 5000A - 8° Down-Angle Transmission Shown (5000V V-Drive Similar)
a-Transmission Identification Plate
