Section 4 - Maintenance
Page 40 90-8M0114081 eng DECEMBER 2015

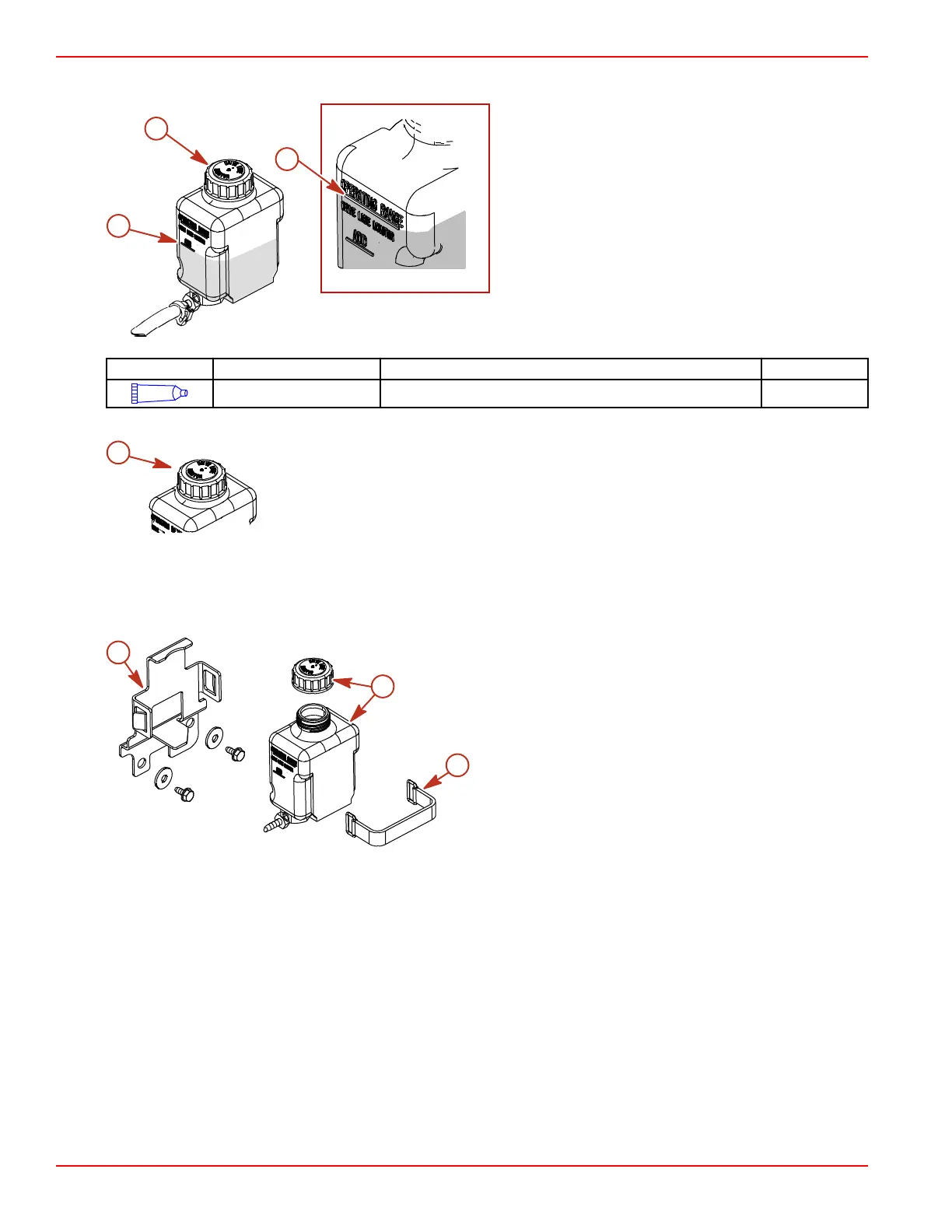

3. Fill the gear lube monitor with the specified gear lube so that the gear lube level is in the operating range. Do not overfill.
Gear lube monitor
a - Gear lube level at the "ADD" mark
b - Gear lube level at the "OPERATING RANGE" mark
c - Gear lube monitor cap
Tube Ref No. Description Where Used Part No.
87
High Performance Gear Lube Gear lube monitor 92-858064K01
4. Ensure that the rubber gasket is inside the gear lube monitor cap and install the cap. Do not overtighten.
a - Gear lube monitor cap
NOTE: When filling the entire sterndrive, refer to Changing .
Changing
1. Remove the gear lube monitor from the bracket.
a - Gear lube monitor bracket
b - Gear lube monitor and cap
c - Retaining strap
2. Empty the contents of the gear lube monitor into a suitable container.
3. Install the gear lube monitor in the bracket.
4.
Bravo One X Models:
a. Remove the propeller.
b. Lower the sterndrive to the full down (in) position.
c. Remove the gear lube fill and drain plug and sealing washer.
19947
b
a
c
a
19962
5500
c
b
a
