Section 4 - Maintenance
90-8M0114081 eng DECEMBER 2015 Page 45

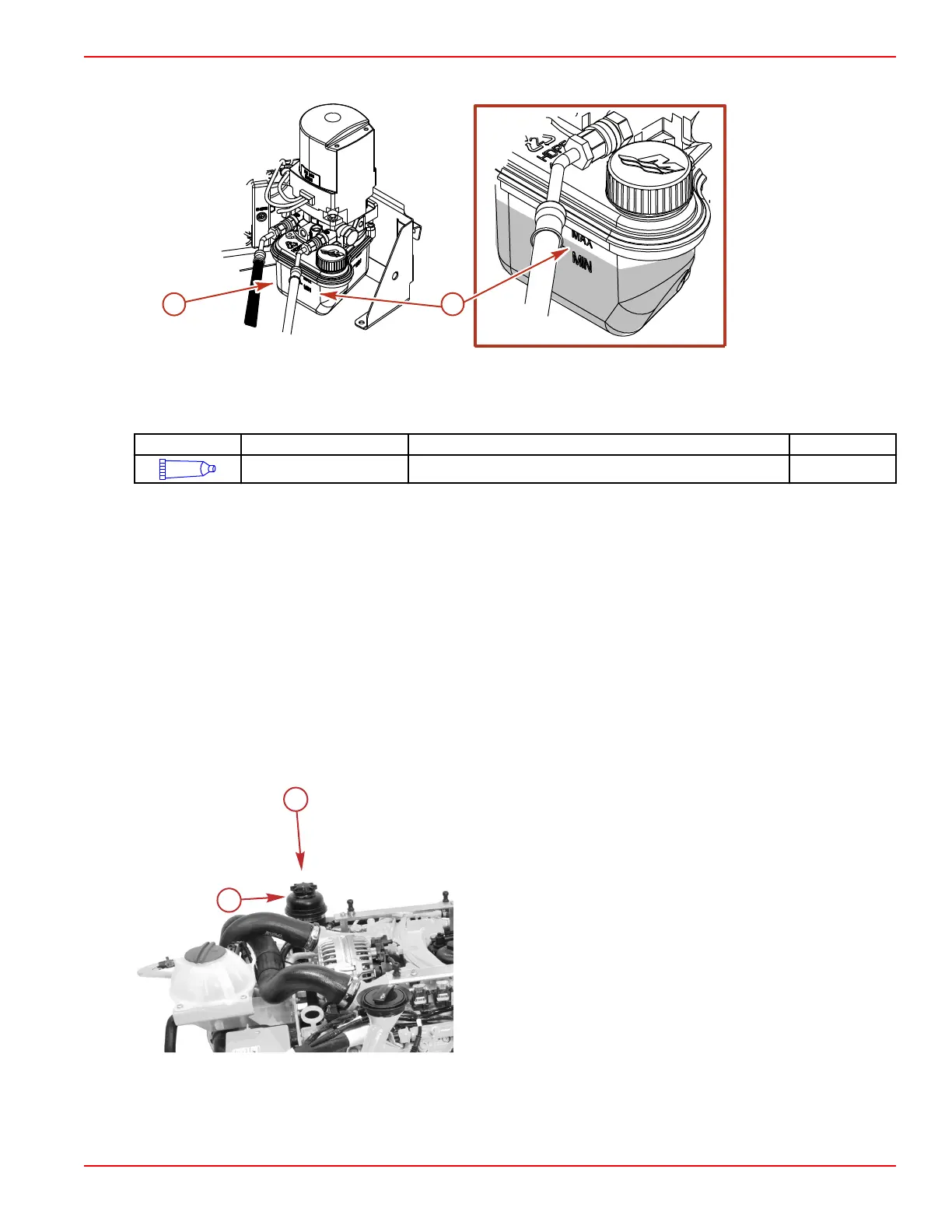

3. Add the specified fluid to bring the fluid level to within the "MIN" and "MAX" lines on the reservoir.
a - Reservoir
b - "MIN" and "MAX" lines
Tube Ref No. Description Where Used Part No.
114
Power Trim and Steering Fluid Power trim pump 92-858074K01
4. Install the fill cap.
Changing
Power trim fluid does not require changing unless it becomes contaminated with water or debris. Contact your Mercury Diesel
authorized repair facility.
Power Steering Fluid
The power steering fluid level should be checked at regular intervals.
IMPORTANT: Do not leave the steering wheel at full lock longer than 15 seconds with the engine running. The power steering
fluid will heat up considerably when the steering wheel is at full lock and could damage the power steering system.
When the steering wheel is at full lock, power steering pump noise will increase as the pump is under full load and the engine
idle RPM will be reduced momentarily.
Checking
1. Center the sterndrive and stop the engine.
2. Remove the fill cap and dipstick from the fluid reservoir and observe the level.
a - Fill cap
b - Power steering fluid reservoir
IMPORTANT: If fluid is not visible in the fluid reservoir, see your Mercury Diesel–authorized repair facility.
Filling
1. Remove the fill cap/dipstick and wipe it with a clean cloth.
a
b
7876
