NOTE:
Like tires on a car, spare tubes are always a measure of good insurance. Your STUDIO CALIBER was carefully
constructed with reliability in mind! Given the proper care and maintenance, it will deliver years of trouble free service. However,
any pro guitarist who is out there gigging will tell you; spare tubes are a must for the fabled cord bag and may someday be worth
their weight in gold. Spare fuses are also a very easy way to ensure an uninterrupted performance.
PAGE 6
This is the A.C.’s (Alternating Current) main fuse and provides electrical current protection from outside A.C.
fluctuations, as well as power tube failure damage. Should the fuse blow, replace it with the same rating in a slo-blo
type package. The domestic U.S. version requires a 1
1/4 AMP slow blo fuse. A power tube short or failure is often the
cause of a blown fuse...Follow the cold start procedure mentioned in the On/Standby switch section and watch the
tubes as you turn the Standby to the On position. If a power tube is going bad or is arcing you will see it! Turn the
Standby Switch to Standby immediately and replace the faulty power tube and the fuse if necessary. If you see nothing
abnormal as you lift the Standby, it is possible that a power tube shorted temporarily and blew the fuse. If this is the
case it may work again normally. To be extra safe you may want to replace both power tubes in the "shotgun"
troubleshooting tradition and save the replaced set as spares.
FUSE:
1/2 A
1/4
1A
FTSW EQ/REV:
This 1/4" Stereo jack allows you control of the Reverb remotely when a Mono cable and MESA Reverb
Footswitch are connected. This footswitch is an option and can be ordered by calling us direct, or by
contacting your nearest MESA / Boogie Pro Center.
FUSE
1.25A
2.5A SB
RECORDING
FTSW REV
RECORDING:
This jack provides direct-to-console interfacing for recording or sound reinforcement applications. It is a circuit
dedicated to reproducing the roll off that occurs in the output section with a
speaker connected. With accuracy, it faithfully captures the STUDIO
CALIBER's soulful character. The send level strength is determined by the
Gain and Master Controls. From this recording jack, adequate signal level will
be available to you for most of your recording needs and live performances.
FUSE
1/2 A
1/4
1A
FX MIX
0%
1
00
%
FTSW REV
RETURN
SEND
RECORDING
FUSE

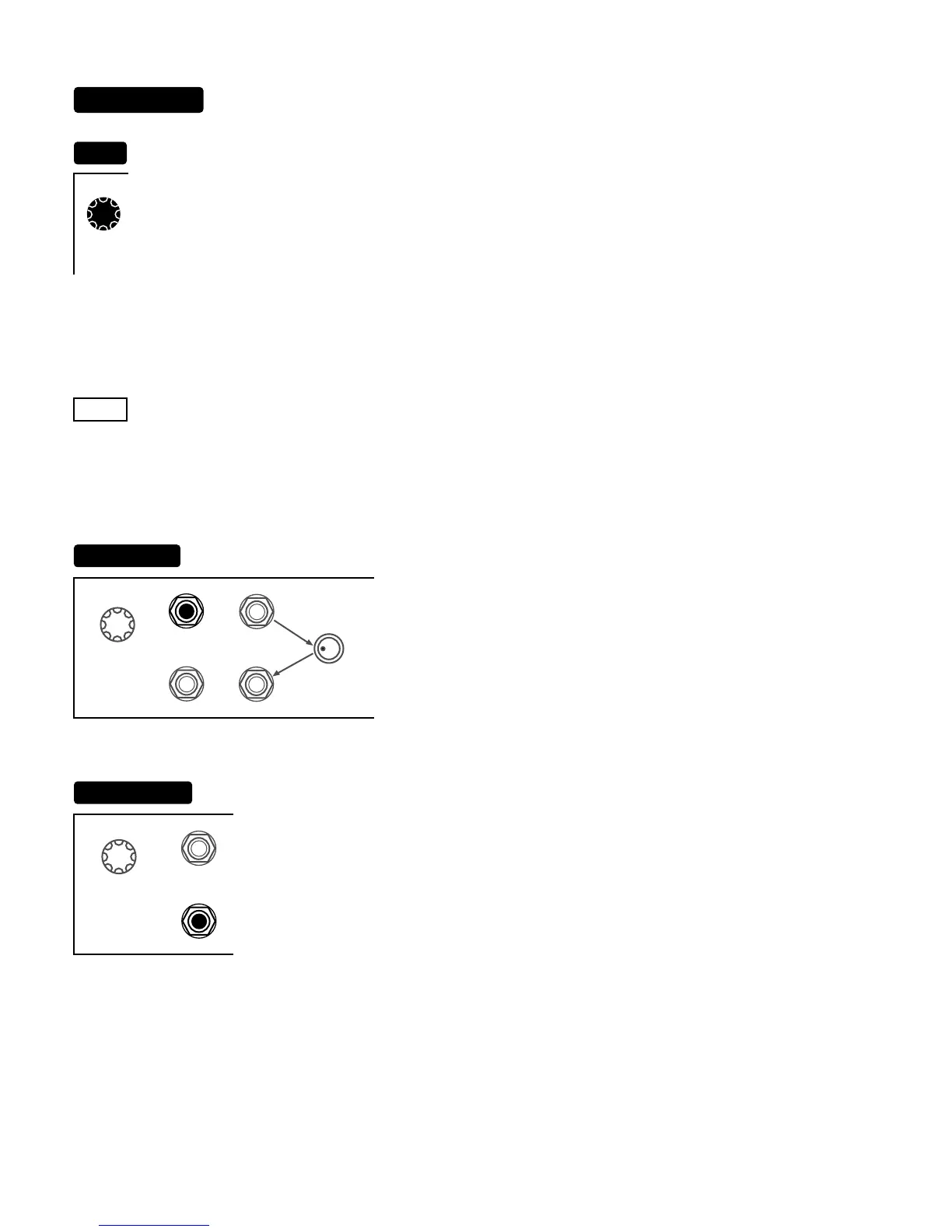

REAR PANEL:
