7 QZ 70 en 11

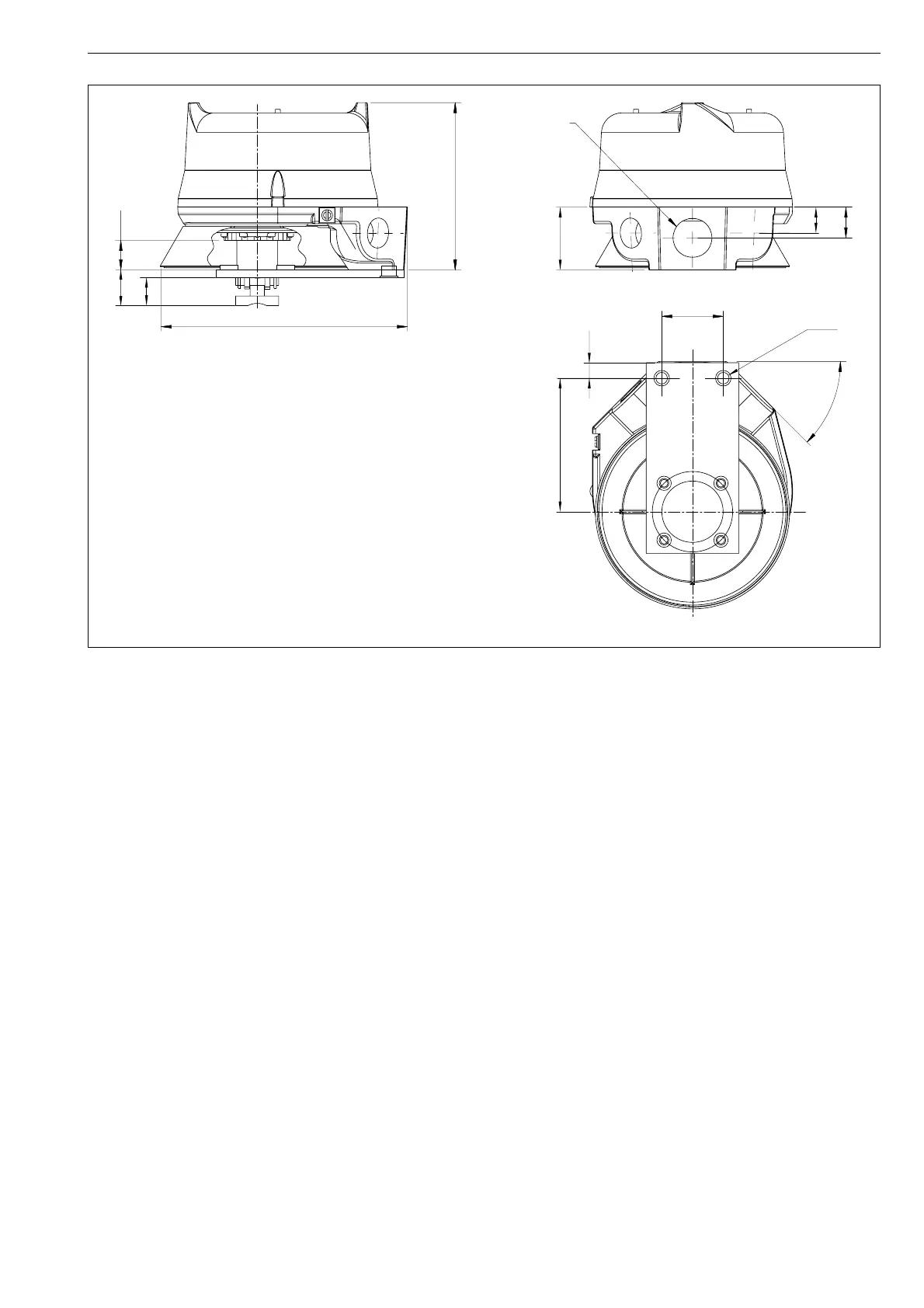

4 DIMENSIONS
153
38
16
19
45°
38
6.8 (2)
10
83
17
22
17
SEE NOTE 2
SEE NOTE 1
NOTES:
1) COVER HEIGHTS MAY VARY ON DIFFERENT MODELS.
- UNIT HEIGHT WITH SHORT COVER = 102 mm
COVER REMOVAL CLEARANCE = 143 mm
- UNIT HEIGHT WITH MEDIUM COVER = 123 mm
COVER REMOVAL CLEARANCE = 184 mm
- UNIT HEIGHT WITH TALL COVER = 155 mm
COVER REMOVAL CLEARANCE = 241 mm
CONSULT FACTORY FOR COVER SIZES ON
SPECIFIC MODELS.
2) CONDUIT ENTRY SIZES MAY VARY ON DIFFERENT MODELS.
CONSULT FACTORY FOR CONDUIT SIZES ON
SPECIFIC MODELS.
