Metso Neles Quartz LIMIT SWITCH User Manual

12 7 QZ 70 en

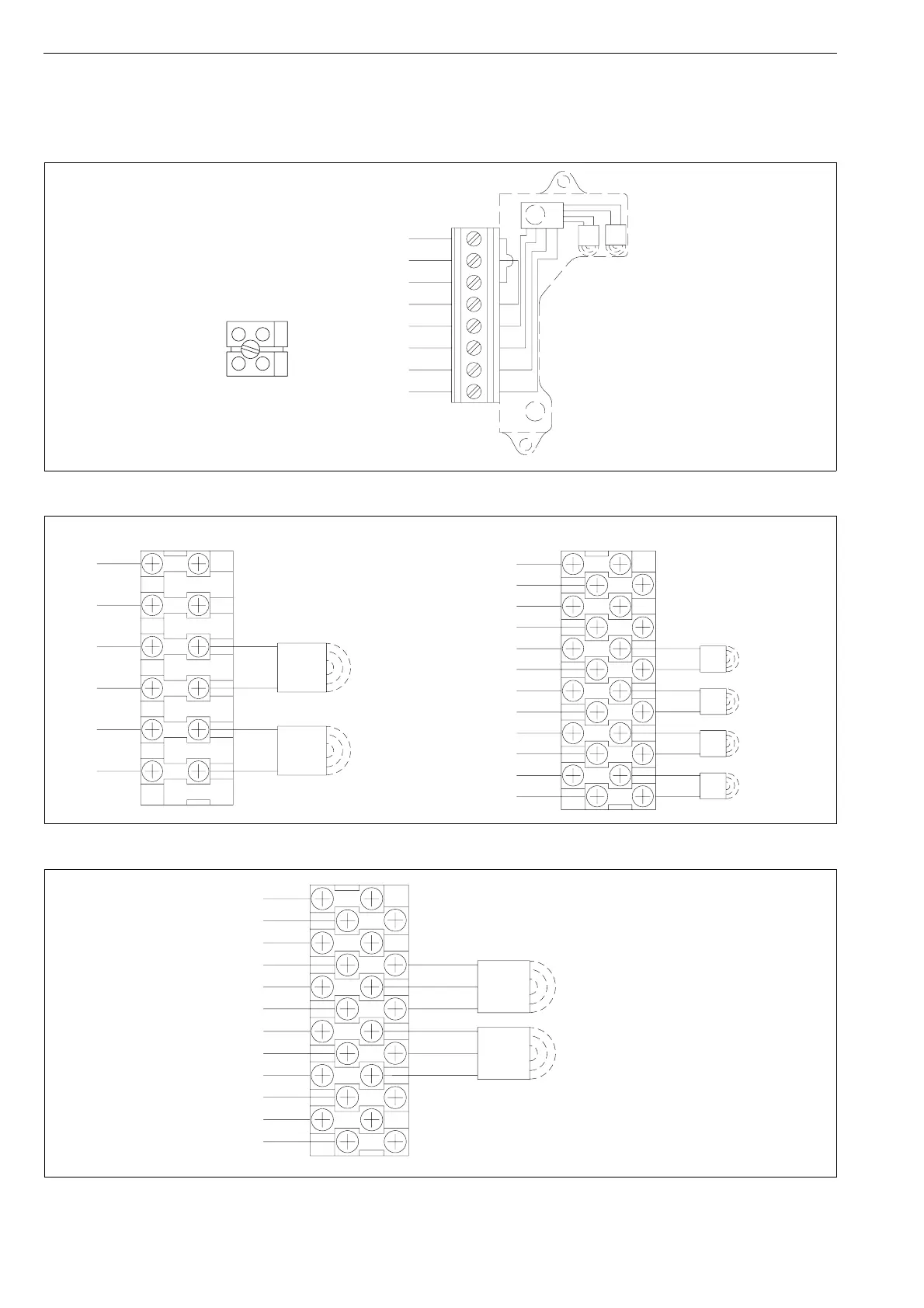

5 WIRING DIAGRAMS
5.1 Inductive Proximity Sensors
5.1.1 Type 33
5.1.2 Type X
5.1.3 Types E and F
SOL1
SOL 2
SOL PWR 1
SOL PWR 2
TOP SW NO
TOP SW C
BTM SW C
BTM SW NO
Note: Models with 3
conduit entries have
an additional 2 pole
terminal block.
SPARE
SPARE
SPARE
SPARE
C
NO/NC
C
NO/NC
C
NO/NC
C
NO/NC
SPARE
SPARE
C
NO/NC
C
NO/NC
TOP SWITCH
BOTTOM SWITCH
TOP SWITCH
BOTTOM SWITCH
SECOND SWITCH
THIRD SWITCH
Note: Models with 2 SST’s and
3 conduit entries have a 12 pole
terminal block (8 spares)
2 SST Sensors 4 SST Sensors
SPARE
SPARE
SPARE
SPARE
TOP SWITCH
BOTTOM SWITCH
TOP SW -
TOP SW +
LOAD
LOAD
SPARE
SPARE
BTM SW +
BTM SW -
