Appendix 3:
℃
10 11 12 13 14 15 16 17 18 19 20 21 22
℉
48 50 52 54 56 58 60 62 64 66 68 70 72
℃
23 24 25 26 27 28 29 30 31 32 33 34 35
℉
74 76 78 80 82 84 86 88 90 92 94 96 98

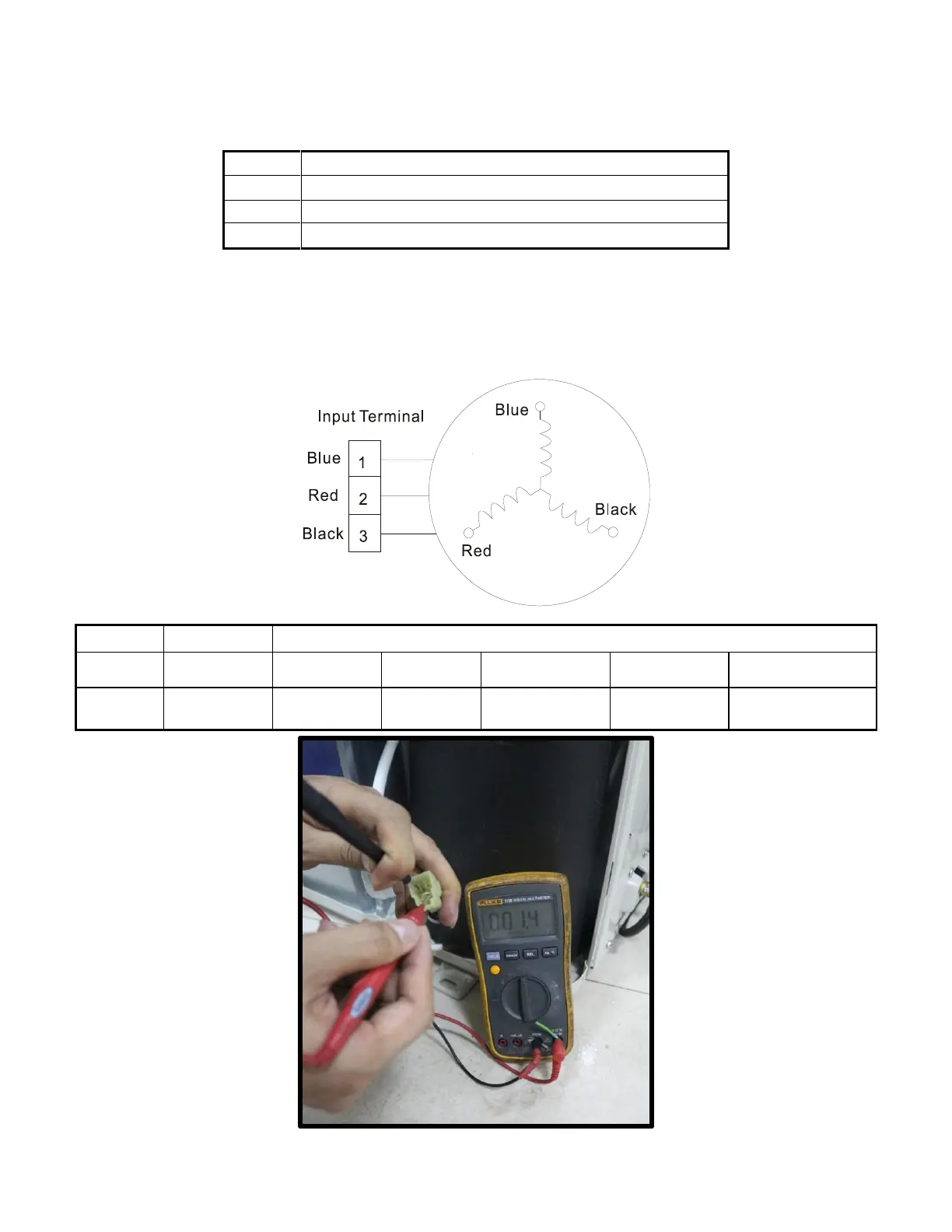

2. Compressor check
Measure the resistance value of each winding by using the tester.
Position
Resistance Value
ATM150D23UFZ
ATF235D22UMT
ATF250D22UMT
ATF310D43UMT
ATQ360D1UMU
ATQ420D1UMU
Blue - Red
1.72 Ω
0.75 Ω
0.75 Ω
0.65 Ω
0.37 Ω
0.38Ω
