Indoor Unit Disassembly 9
2.2 Electrical parts (Antistatic gloves must be worn.)
Note: Remove the front panel (refer to 1. Front panel) before disassembling electrical parts.

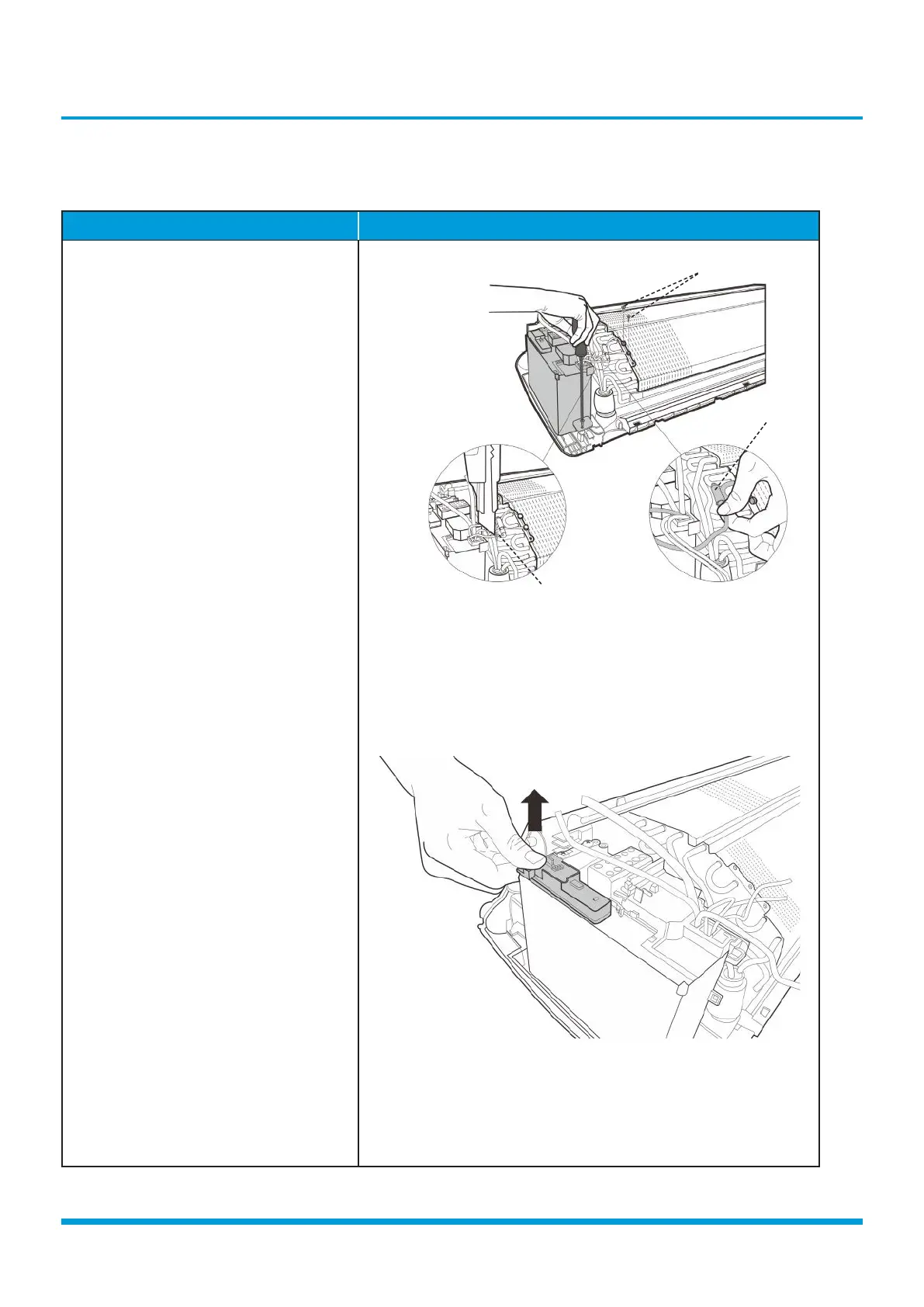

Procedure Illustration
1) Cut the ribbon by a shear, then pull
out the coil temperature sensor (T2)
(see CJ_AB_INV_014).
2) Remove one fixing screw of the
electronic control box and two screws
used for the ground connection (see
CJ_AB_INV_014).
3) An upward force is maintained until
the cover of electronic control box is
removed (see CJ_AB_INV_015).
CJ_AB_INV_014
CJ_AB_INV_015
Note: This section is for reference only. Actual unit appearance may vary.
Ribbon
T2 Sensor
Ground Screws
To Next Page
