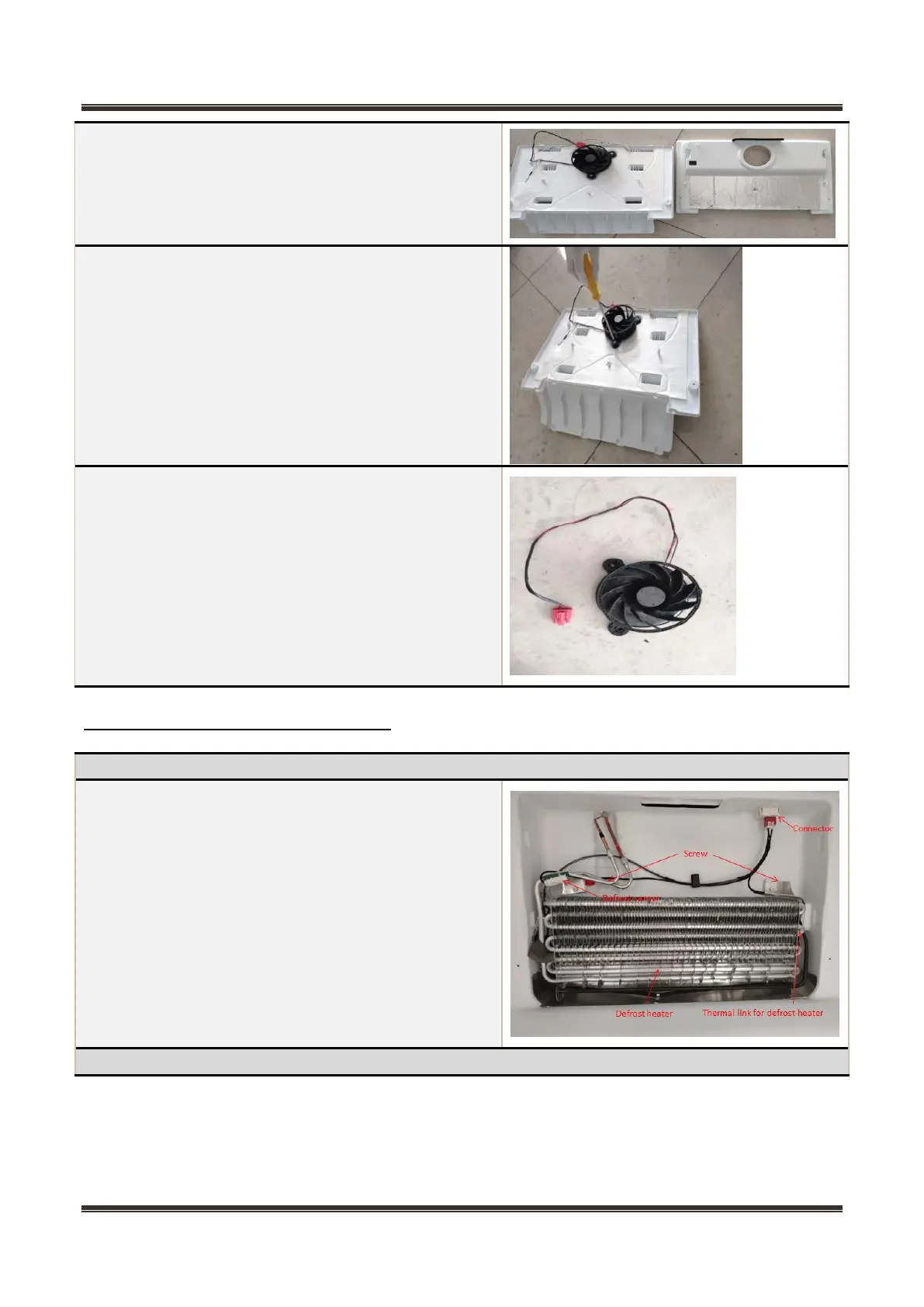

2）Pry up the plastic hooks ,and separate the rear
board of air duct assembly from front board of air duct
assembly；
3）use cross screwdriver to remove the 3 pcs screws,
separate the bracket from the fan motor;
4）pull the fan blades with big strength, until it is
separated from the shaft of fan motor; if need to
replace the fan motor, the reverse operation is for
assembly
8.6 Evaporator and Defrost system
Evaporator in freezing chamber
Evaporator in freezing chamber
1） Remove the air duct components in freezing
chamber.
2） Disconnect all connectors.
3） Remove the welding on inlet and outlet tubes.
4） Remove two screws which are used to fix the
evaporator and remove the evaporator.
Components on the evaporator
