WIRING DIAGRAMS (CONT)
4-WAY
DC-FAN
OPTIONAL:
DC-FAN
CN 7
3
CN 60
OPTIONAL
CRANKCASE
HEATER
CN 17
OPTIONAL
BL UE
BROWN
YELLOW OR BLACK
INDOOR UNIT
S
L2
/
L2
POWER SUPPLY
RED
BLUE OR BLACK
Y/G
L1
Y/G
AMBIENT TEMP. SENSOR
DISCHARGE TEMP. SENSOR
CN 21
CONDENSER TEMP
. SENSOR
Y/G
CN 1A
Y/G
Y/G
COMPRESSOR
Y/G
CN 50
3
U
V
W
BLUE
RED
BLACK
AC-FAN
CAPACITOR
OPTIONAL:
AC-FAN
5
3
Y/G
Notes:
This symbol indicates the element
is optional, the actual shape shall
prevail.
CN 32
CN 9
REACTOR
1005AL
OPTIONAL
BLUE
BLUE
MAIN
BOARD
CN 25
RED
BLUE
%
&2'(
&1$
&1
&1
&2'(
&1
&1
&1
3$571$0( 3$571$0(
&1
&1~&1
Input: 220V high voltage connector with
L/N/signal/ground
Output: 0~320V DC to connect DC FAN
To connect PFC reactor
Input: temperature sensor connector (0~5V DC)
Output: 0~220V AC to connect AC FAN
Output: 0~320V AC to connect compressor
Output: 0~220V AC to connect 4-way valve
Output: 220V AC to connect crankcase heater

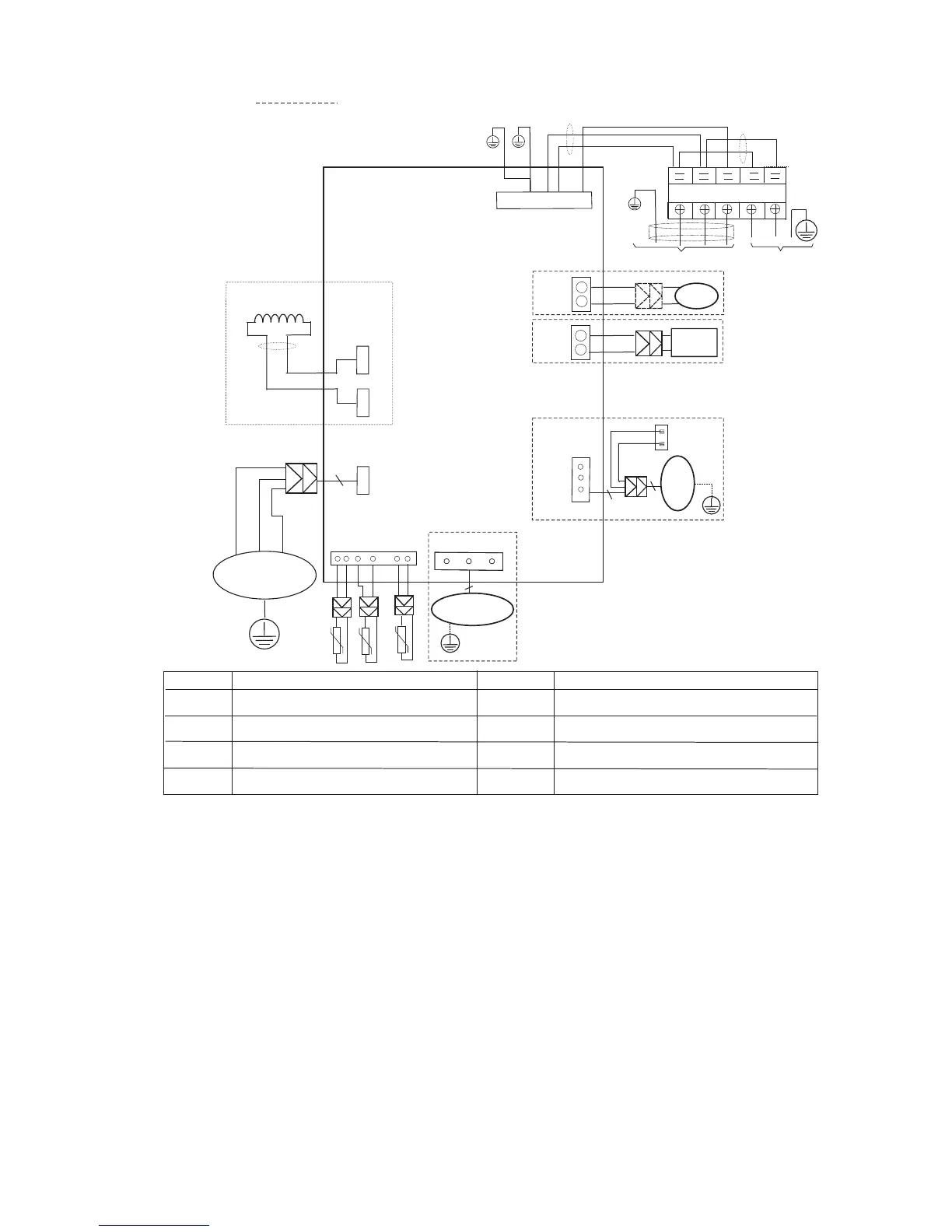

Fig. 8 - Wiring Diagram − Sizes 09K, 12K (208−230V)
