P.21
4.Overview of main parts

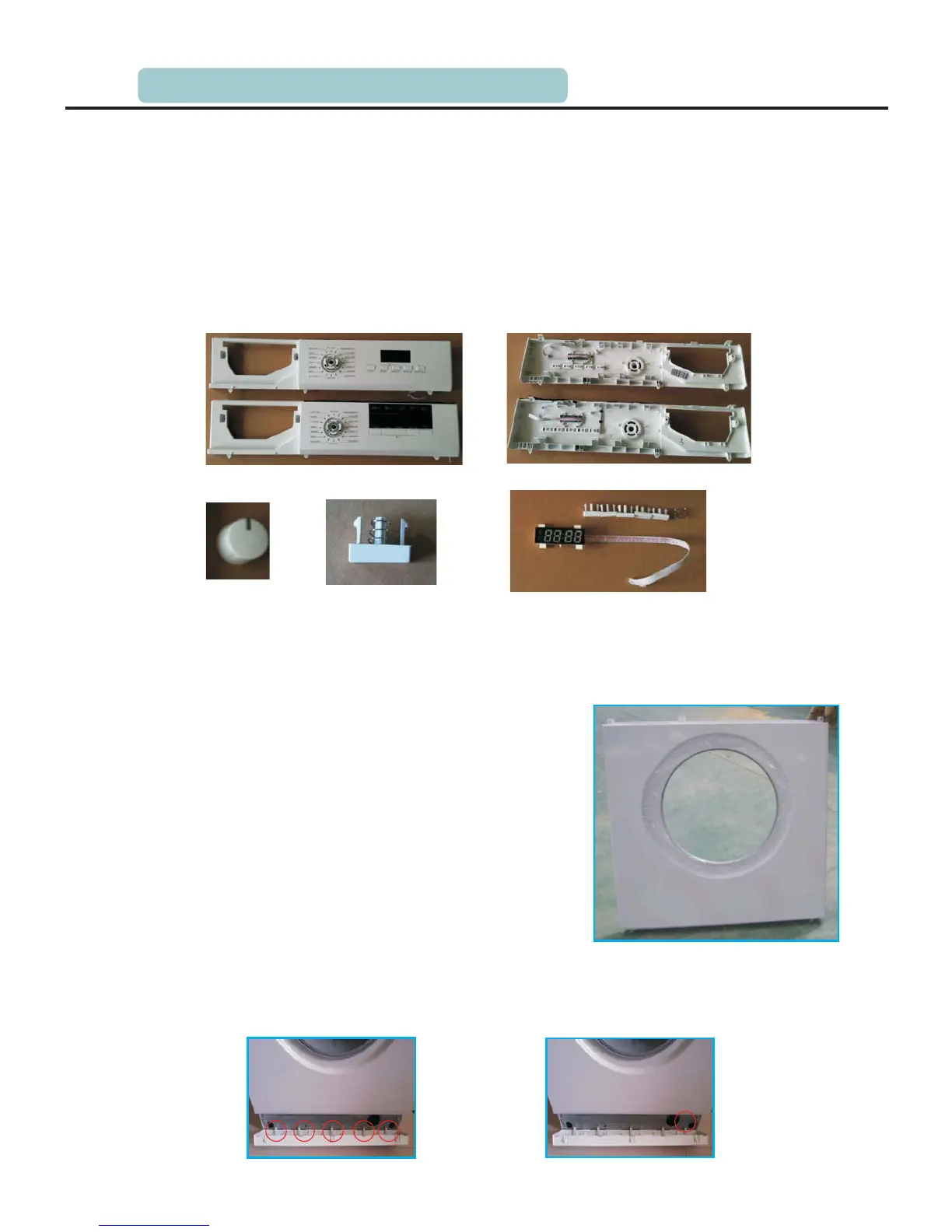

4.3 Control panel kit
Control panel kit consists of control panel, dalle,spring, button,light transferrer etc.
As the key apparance part of washing machine, control panel's appearance and quality
have direct influence on costumers. Midea washing machine is known as fashionable and
compact appearance.
The material of control panel is the slap-up and splendid ABS material and its mold is
specular polished.
4.4 Front plate
The material of front plate is PCM and its thickness
is 0.8mm. Connection of Front plate and cabinet is
pensile structure with screw. Both sides of the back
of the front plate have a hole respectively which is
to append front plate support. Finally maintainer
can fasten front plate on cabinet with five screws.
Three holes at the top of the front plate is used to fix
the control panel.
Door hole is in the center of front plate, and its left
side is hinge and the right side is door lock.
4.5 Lower panel
Lower panel is locked to lower
reinforce and then fixed with a
screw.
4.OVERVIEW OF MAIN COMPONENTS
