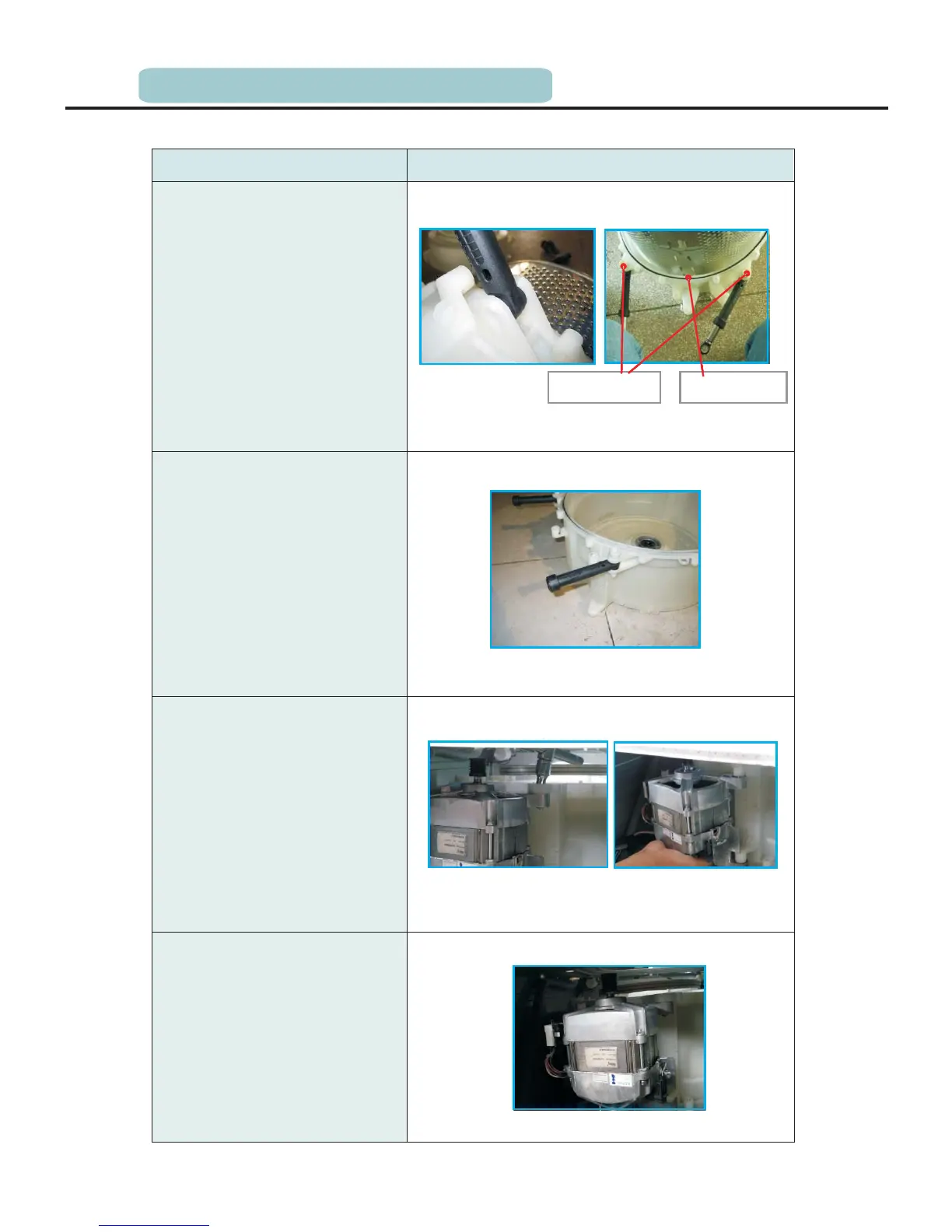

Operation step Picture
23 Undo the absorber
① Lift out the outer tub kit
(means as 21 above).
② Undo the absorber pin
between absorber and rear
tub, remove the absorber.
24 Undo the motor
① First let the machine lie
down on the back and then pull
out the motor wire and
grounding wire. Use spanner to
remove the motor screw, and
lift up the motor with the other
hand in case of falling to the
drain pump.
② After two screws are
removed, change the motor.
First support it to clasp the
correct position, then install
the screws, and then install the
belt.
5.UNPACKING WAYS OF MAIN PARTS
⑤ Remove the screws
fixing the front and rear
tub, and then remove the
tub.
⑥ Remove the inner
drum kit.
Pin
Airproof Ring
