P.42
Operation step Picture

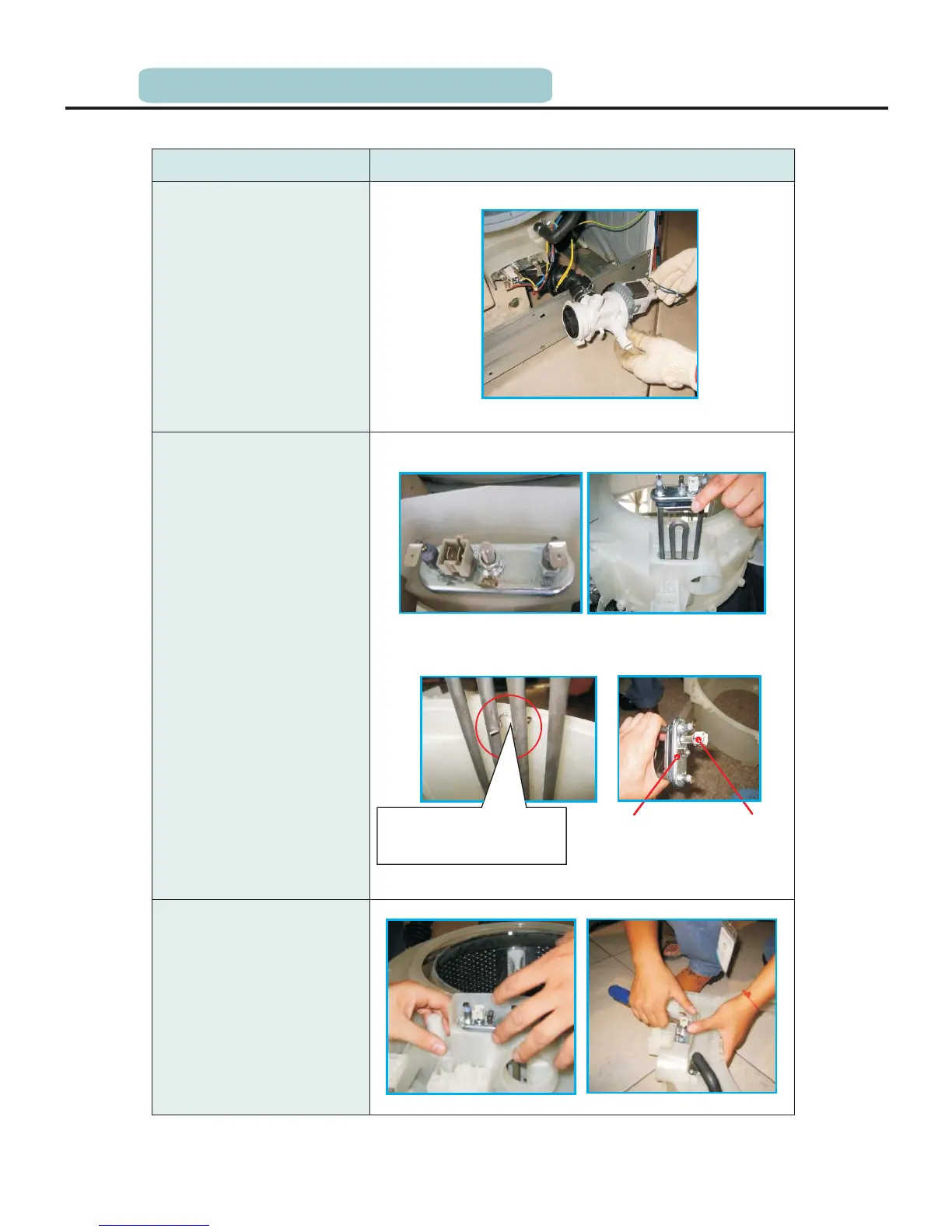

18 Undo the heater
① Undo the top cover,
control panel, lower cover
and front plate(methods
as followed).
② Pull out the heater
plug. Pay attention to the
position of the plug so as
to not connect a wrong
circuit next time.
③ Release the screw
fixing the heater.
④ Take out the heater.
19 Undo the NTC
temperature sensor
① Undo the top cover,
control panel, lower cover
and front plate(methods as
followed).
② Undo the NTC with
special tools.
Heater
NTC
In the red circle it is the
heater support, clamping
the heater.
5.UNPACKING WAYS OF MAIN PARTS
③ Nip out the clamp
between the outlet hose
and the drain pump, pull
out the outlet hose.
④ Loosen the screws
fitted on the drain pump,
and then pull out the drain
pump.
To Next Page
