Midea 50Hz AC Fan Coil Unit Two-pipe Wall-mounted Series MCAC-UTSM-201606
- 27 -

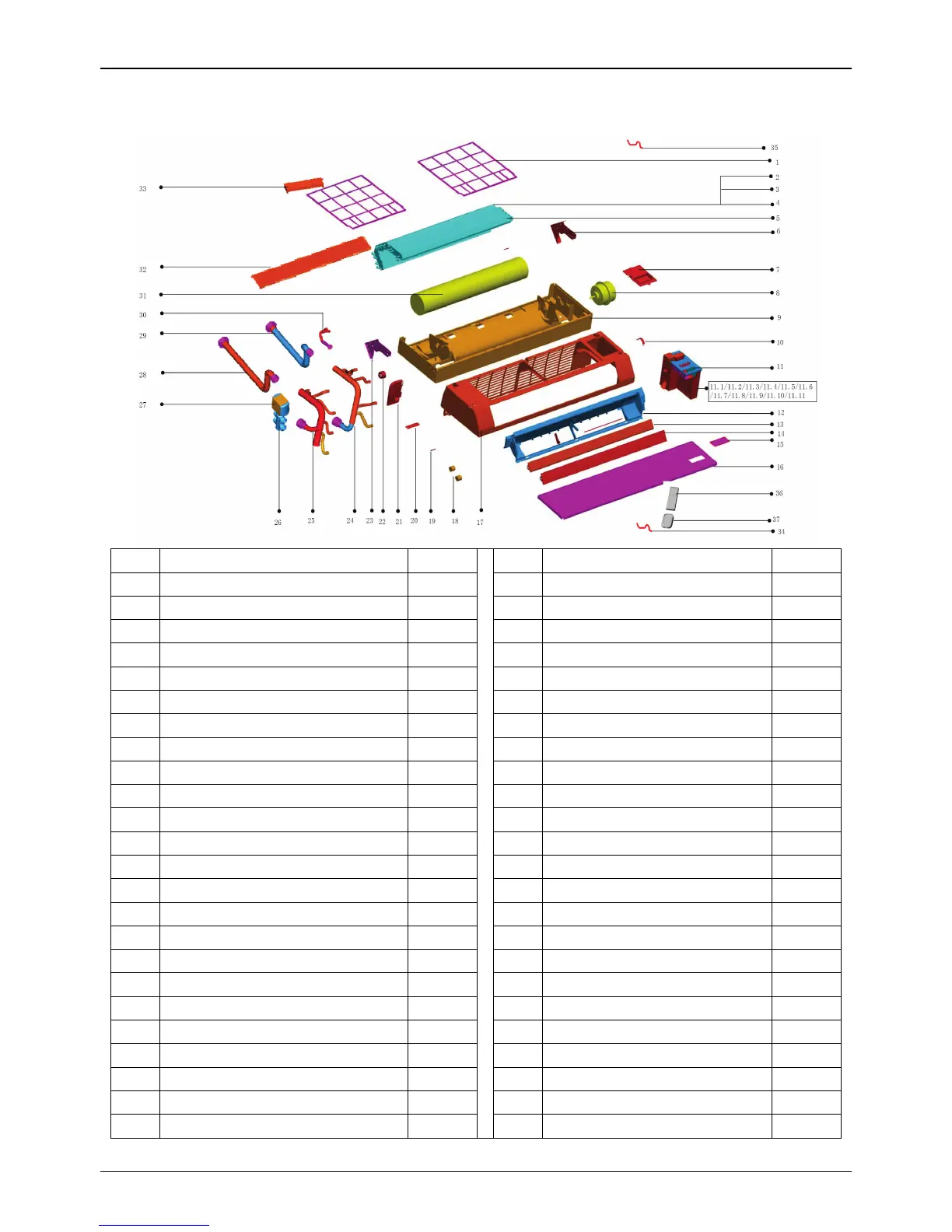

12. Exploded View
C panel
No. Part Name Quantity
No. Part Name Quantity
1 Filter 2 14 Louver 1
2 Evaporator I 1 15 Panel dalle 1
3 Evaporator II 1 16 Panel 1
4 Evaporator Ⅲ 1 17 Panel frame ass'y 1
5 Coil temp sensor 1 18 Stepper motor 2
6 Evaporate connect board 1 19 Screw cover 3
7 Display board ass'y 1 20 Pipe clamp 1
8 Motor 1 21 Drainage pan 1
9 Base pan assembly 1 22 Bearing base 1
10 Motor spud 2 23 Evaporator left clapboard 1
11 E-part box ass'y 1 24 Water inlet pipe ass'y 1
11.1 Dial code switch box cover 1 25 Water outlet pipe ass'y 1
11.2 Electric control box seat 1 26 Three-way valve 1
11.3 E-Part box cover 1 27 Control wire for 3-Ways valve 1
11.4 Electric control box soleplate 1 28 Outlet screw pipe ass'y 1
11.5 Electric control box side board ass'y 1 29 Inlet screw pipe ass'y 1
11.6 Dial code switch board ass'y 1 30 Discharge valve 1
11.7 Main controller ass'y 1 31 Cross fan 1
11.8 Transformer 1 32 Base pan holder 1
11.9 Wire joint 1 33 Formaldehyde killer 1
11.10 Wire joint, 3p 1 34 Room Temperature Sensor Ass'y 1
11.11 Motor capacitor 1 35 Network matching wire 1
12 Air outlet frame mount ass'y 1 36 Remote controller 1
13 Louver board 1 37 Remote controller holder ass'y 1
To Next Page
