Midea MKH3-700R3 User Manual

Midea AC Fan Coil Unit
45
a (mm)
≥150
b (mm)
≥90
c (mm)
≥50

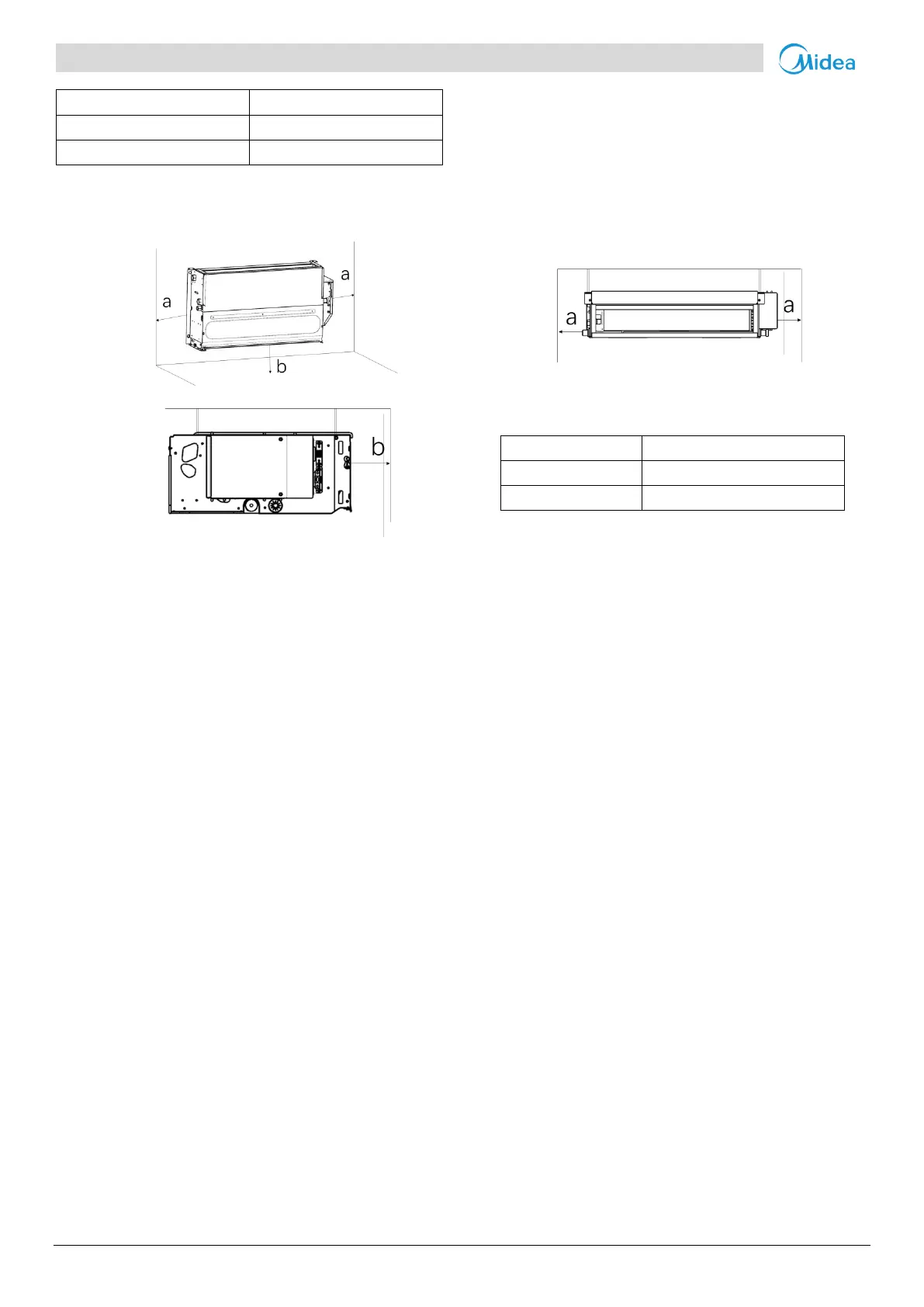

Uncased type
a (mm)
≥150
b (mm)
≥90
c (mm)
≥50
10.4 Units installation
Caution:
Installation must only be carried out by qualified technicians, trained to work with air-conditioning and refrigeration
systems. Incorrect installation could lead to unit malfunctioning and a consequent deterioration in performance.
For installation, follow the instructions set out below:
Check the space technically required for installation:
 Space required for installation.
 Space required for connecting the liquid lines and other valves.
 Space required for connecting power supply.
 Space required for connecting the unit to the external control panel (if any).
 Space required for setting flow route and air inlet (for specific models).
 Space required for correct and sufficient air flow.
 Space required for removing condensate water.
 Space required for cleaning the filter.
 Space required for cleaning internal assembly and maintenance.
Remove the casing:
Removing screws ①*2, ②*2 and ③*2 and then the casing as Figure 10.4.1.
