Midea AC Fan Coil Unit
47

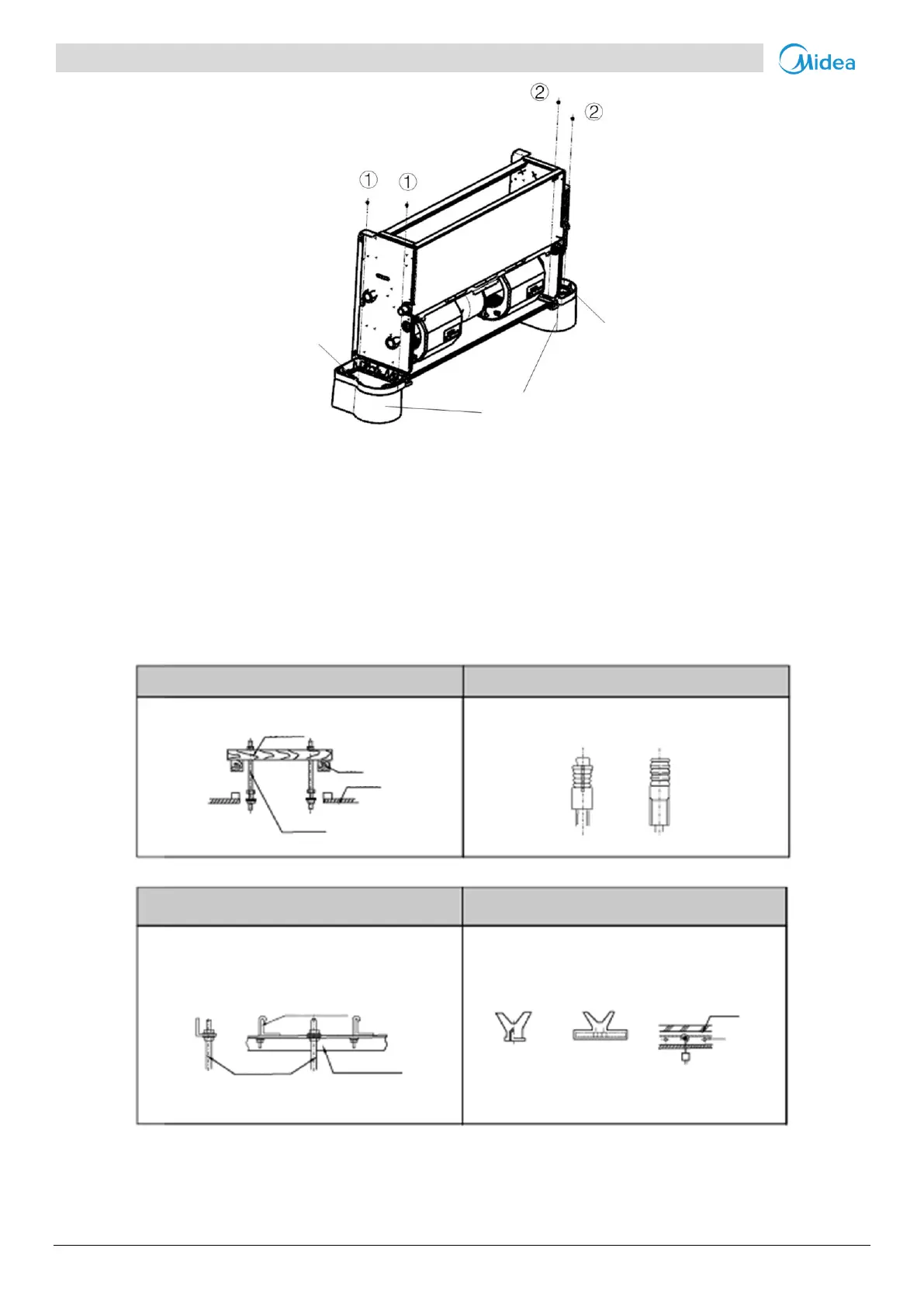

Figure 10.4.3
The footings shown in Figure 10.4.3 are optional. You can purchase them separately and install them as follows:
1. Put the footings beside the unit to be installed.
2. Place the mounting holes on the unit base into the corresponding footing locating pin and install screws ①*2
and ②*2 to fix the footing according to Figure 10.4.3.
Install the unit following the steps below in case it is ceiling mounted.
To match the existing structure, set the screw pitch according to the unit dimensions.
Wooden structure
Secure the square rod on the beam to set the lifting bolts.
Square bar material
Beam
Ceiling
Lifting bolt
Original concrete slab structure
Use embedded bolts, and pull bolts.
Steel framework
Directly set and use an angle steel for support.
Suspension bolt
Suspension bolt
Angle steel for support
Newly set concrete slab structure
Set using embedded appliances,
and embedded type of bolts.
Knife-type
insertion piece
Sliding-type
insertion piece
Reinforced bar
Embedded
bolt (hanging
and embedded
bolt of piping)
