40

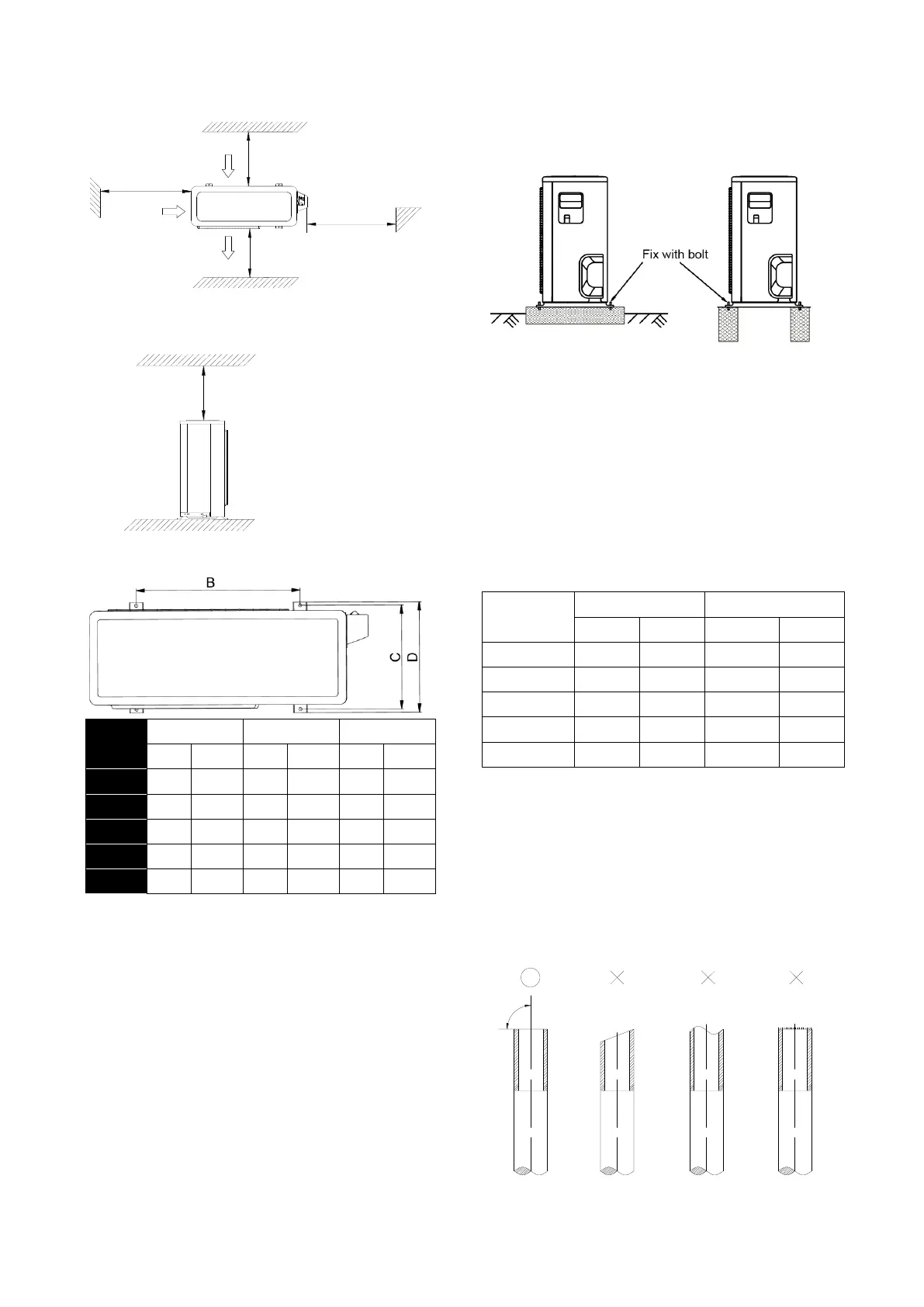

More than 30cm
(11.81in)
More than 60cm
(23.62in)
More than 200cm(78.74in)
Air inlet
Air inlet
More than 30cm(11.81in)
Air outlet
(Wall or obstacle)
Maintain channel
More than 60cm
(23.62in)
12.3.2 Bolt pitch
Model
B
C
D
mm
inch
mm
inch
mm
inch
12K
549
21.61
325
12.80
350
13.78
17/18K
560
22.05
335
13.19
360
14.17
24K
640
25.20
405
15.94
448
17.64
36K
640
25.20
405
15.94
448
17.64
48K
634
24.96
404
15.91
448
17.64
14.3.3 Install the Unit
Since the gravity center of the unit is not at its
physical center, so please be careful when
lifting it with a sling.
Never hold the inlet of the outdoor unit to
prevent it from deforming.
Do not touch the fan with hands or other
objects.
Do not lean it more than 45, and do not lay it
sidelong.
Make concrete foundation according to the
specifications of the outdoor units.
Fasten the feet of this unit with bolts firmly to
prevent it from collapsing in case of earthquake
or strong wind.
12.4 Refrigerant pipe installation
12.4.1 Maximum pipe length and height
drop
Considering the allowable pipe length and
height drop to decide the installation position.
Make sure the distance and height drop
between indoor and outdoor unit not exceeded
the date in the following table.
Model
Max. Length
Max. Elevation
m
Ft.
m
Ft.
12,000Btu/h
25
82.2
10
32.9
18,000Btu/h
30
98.7
20
65.8
24,000Btu/h
50
164.5
25
82.2
36,000Btu/h
65
213.8
30
98.7
48,000Btu/h
65
213.8
30
98.7
12.4.2 The procedure of connecting pipes
1. Choose the pipe size according to the
specification table.
2. Confirm the cross way of the pipes.
3. Measure the necessary pipe length.
4. Cut the selected pipe with pipe cutter
 Make the section flat and smooth.
90
Lean
Crude
Burr
o
