17.2 Outdoor unit
 9K and 12K Outdoor Unit
No.
Part name
Procedures
Remarks
1
Panel plate
How to remove the panel
plate.
1) Stop operation of the air
conditioner and turn “OFF”
the power breaker.

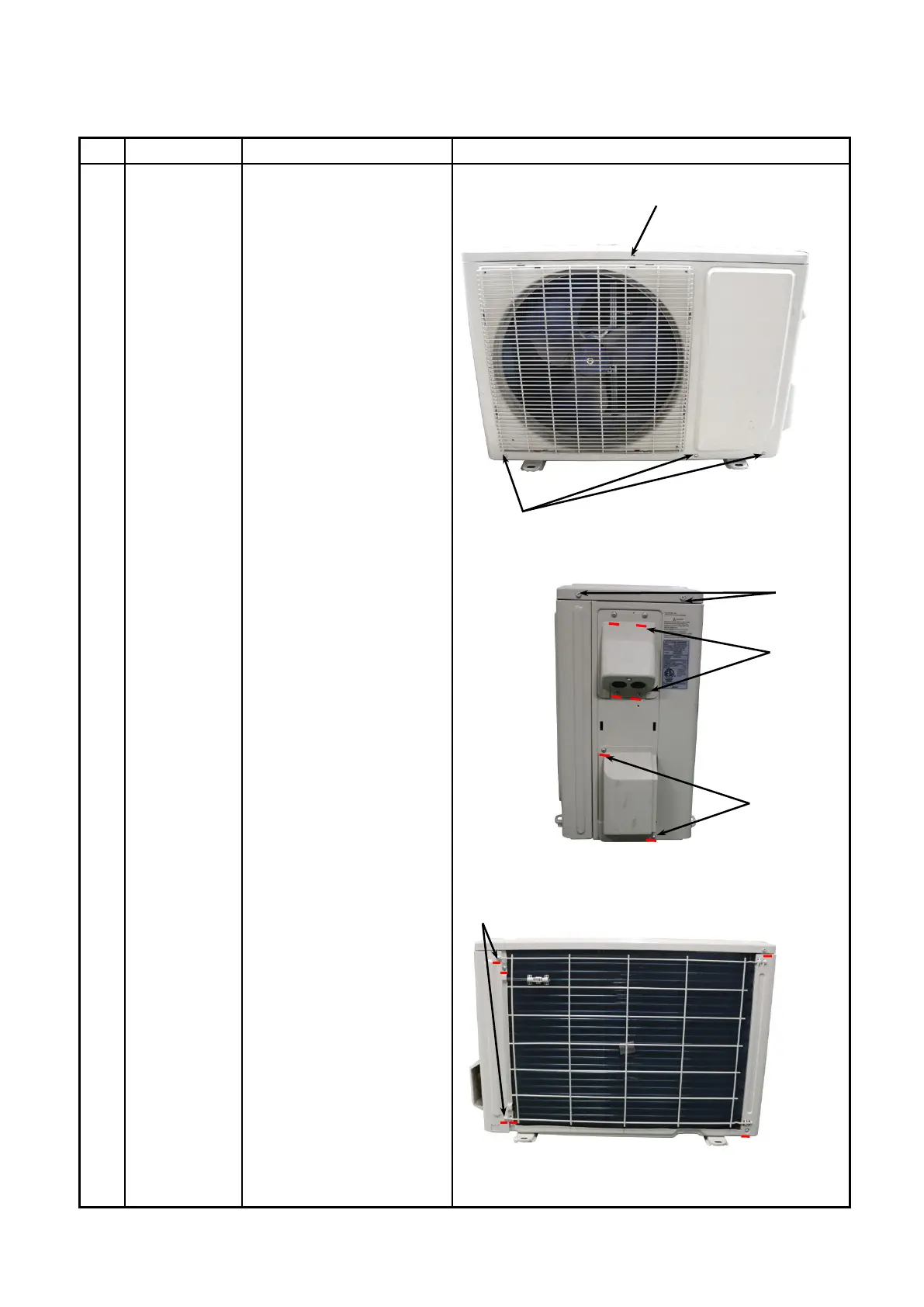

2) Refer to the right side
photos, find out the fixing
screws of the panels.
3) Remove the screws of
top panel and remove the
top panel.
4) Remove the screws of
the front panel and then
remove the front panel.
5) Remove the screws of
the right side plate and
remove the right side
plate.
Screw of
the top
panel
Screws of
water connector
on right side
plate
Screws of front panel
Screws of top panel
Screw of
top panel
Screws of
big handle
on right
side plate.
Screws of right rear plate
Screws of rear net
Screws of left plate
