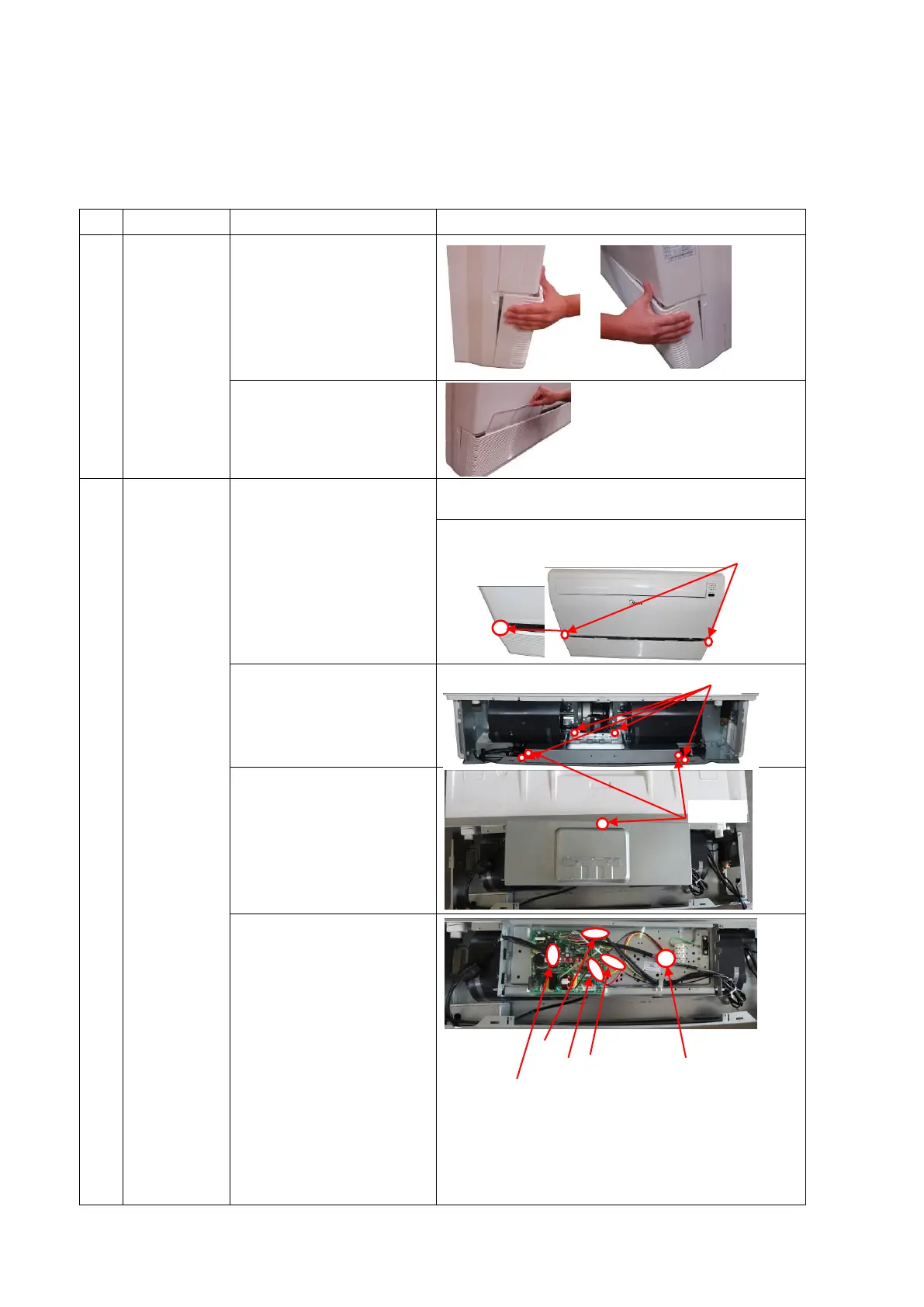

17. Disassembly Instructions
Note: This part is for reference, the photos may have slight difference with your machine.
17.1 Indoor unit
 Ceiling-floor Unit
No.
Parts name
Procedures
Remarks
1
Remove
the Filter
1) Open the air return
grille
2) Remove the filter
from the grille
2
Remove
the
electronic
control box
1) Remove the air
return grille
 Open the air return grille
Repeat the operation of step1 of No.1
 Screw off the screw connected to the left and right
guide beam.
2) Screw off the screws
to take out the
electronic control
box from the body
3) Remove the cover of
electronic control
box
4) Disconnect the outer
driver DC motor
wire, louver motor
wire, room
temperature
sensor(T1) and
evaporator coil
temperature
sensor(T2) wire, and
display board wire to
remove the
electronic control
4 screws
3 screws
2 screws
T1
T2
Louver motor connector
Display board wire
Outer driver DC motor connector
