Page 12
Installation
Instructions
50cm
50cm
19.7inch
50cm
19.7inch
19.7inch

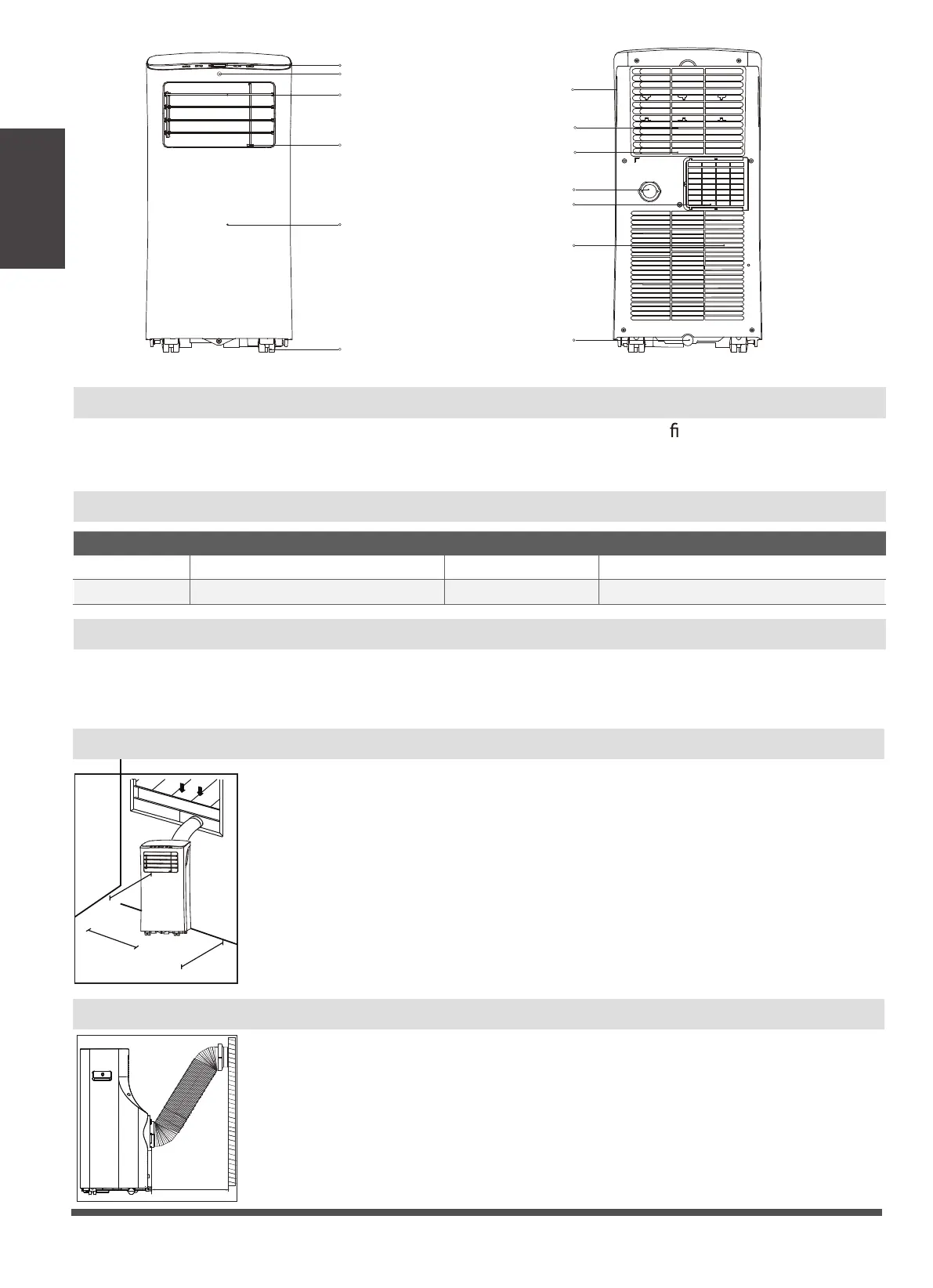

Choosing The Right Location
Recommend Installation
Your installation location should meet the following requirements:
-Make sure that you install your unit on an even surface to minimize noise and
vibration.
-The unit must be installed near a grounded plug, and the Collection Tray Drain
(found on the back of the unit) must be accessible.
-The unit should be located at least 50cm (19.7”) from the nearest wall to ensure
proper air conditioning. The horizontal louver blade should be at least 50cm
(19.7”) away from obstacles.
-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this
could cause damage to the unit.
50cm
19.7 inch
MODE Temperature Range MODE Temperature Range
Ambient Temperature Range For Unit Operating
Cool 17-35°C (62-95°F)
Dry
Heat(pump heat mode)
Heat(electrical heat mode) 13-35°C (55-95°F)
5-30°C (41-86°F)
Exhaust Hose Installation
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For
COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT
(electrical heat type) mode must be removed exhaust hose.
30°C (86°F)
≥
front
control panel
remote signal receptor
horizontal louver control
lever(adjust manually)
vertical louver control
lever(adjust manually)
panel
Caster
NOTE: PHA can not be
adjusted.
NOTE: PHA can not be
adjusted.
rear
handle
(both sides)
bottom tray
drain outlet
air filter
upper air intake
air outlet
lower air intake
drain outlet
Design Notice
In order to ensure the optimal performance of our products, the design speci cations of the unit and
remote control are subject to change without prior notice.
To Next Page
