Midea V6R Series User Manual

V6R VRF 50/60Hz
134
Midea
V6R
Series Engineering Data Book

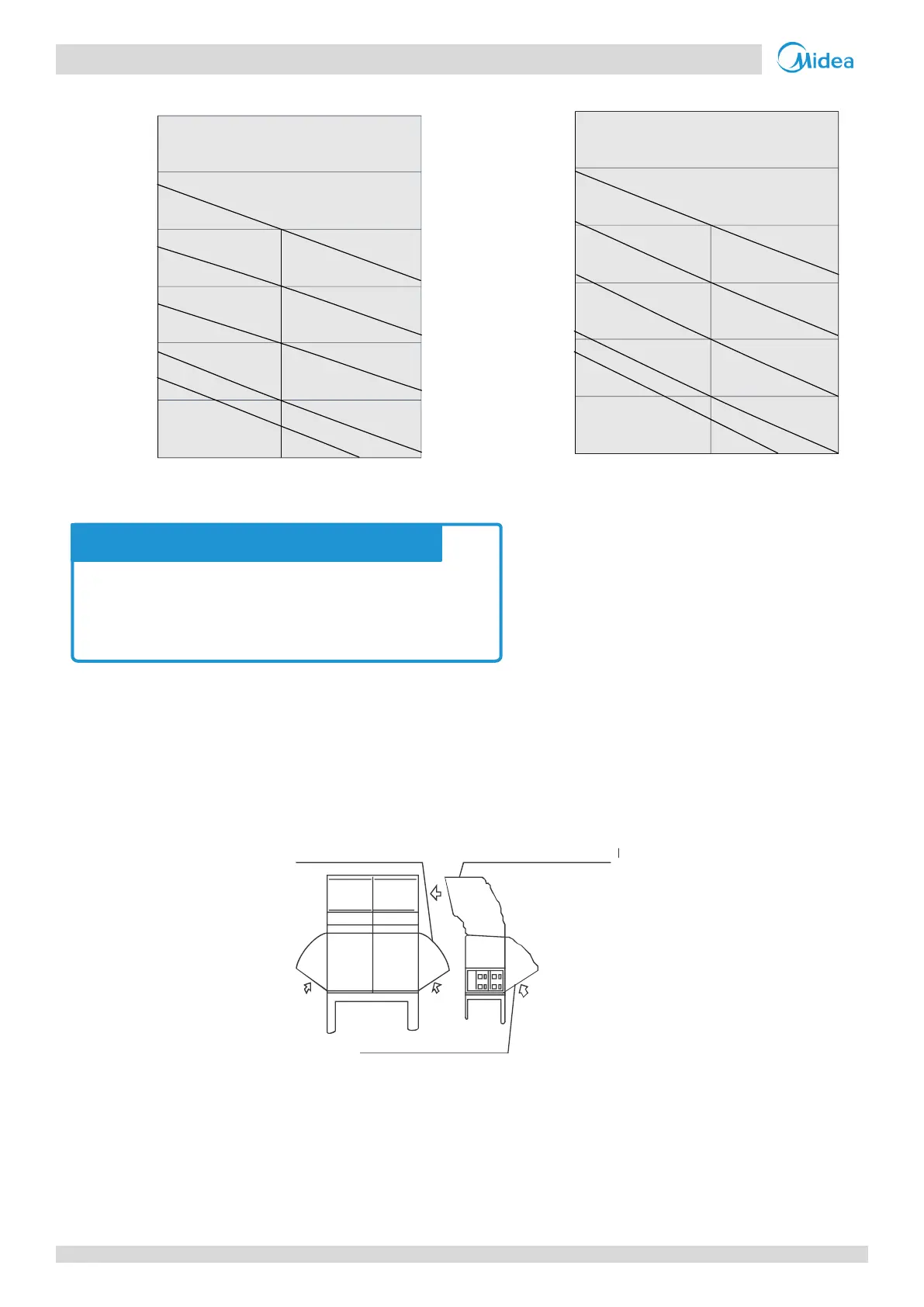

Figure 3-3.10: 16HP units fan performance
Figure 3-3.11: 18/20HP units fan performance
3.5 Snow Shielding
In areas of high snowfall, snow shields should be installed on air inlets and outlets to prevent snow from entering the units.
Additionally, the height of the base support should be higher than the highest snow level of local area.
Figure 3-3.12: Outdoor unit snow shielding
External ststic pressure (Pa)
Air flow（m
3
/h)
120
100
80
60
40
20
0
13500 14500 15500 16500
0Pa
20Pa
40Pa
60Pa
80Pa
14900(rated)
External ststic pressure (Pa)
Air flow（m
3
/h)
120
100
80
60
40
20
0
14000 15000 16000 17000
0Pa
20Pa
40Pa
60Pa
80Pa
15800(rated)
Snow shield for air outlet
Snow shield for air inlet
Snow shield for air inlet
 Before instal outdoor unit ducting, be sure to remove
the unit’s steel mesh cover, otherwise airflow will be
adversely affected.
Notes for installers

Snow shield for air outlet
