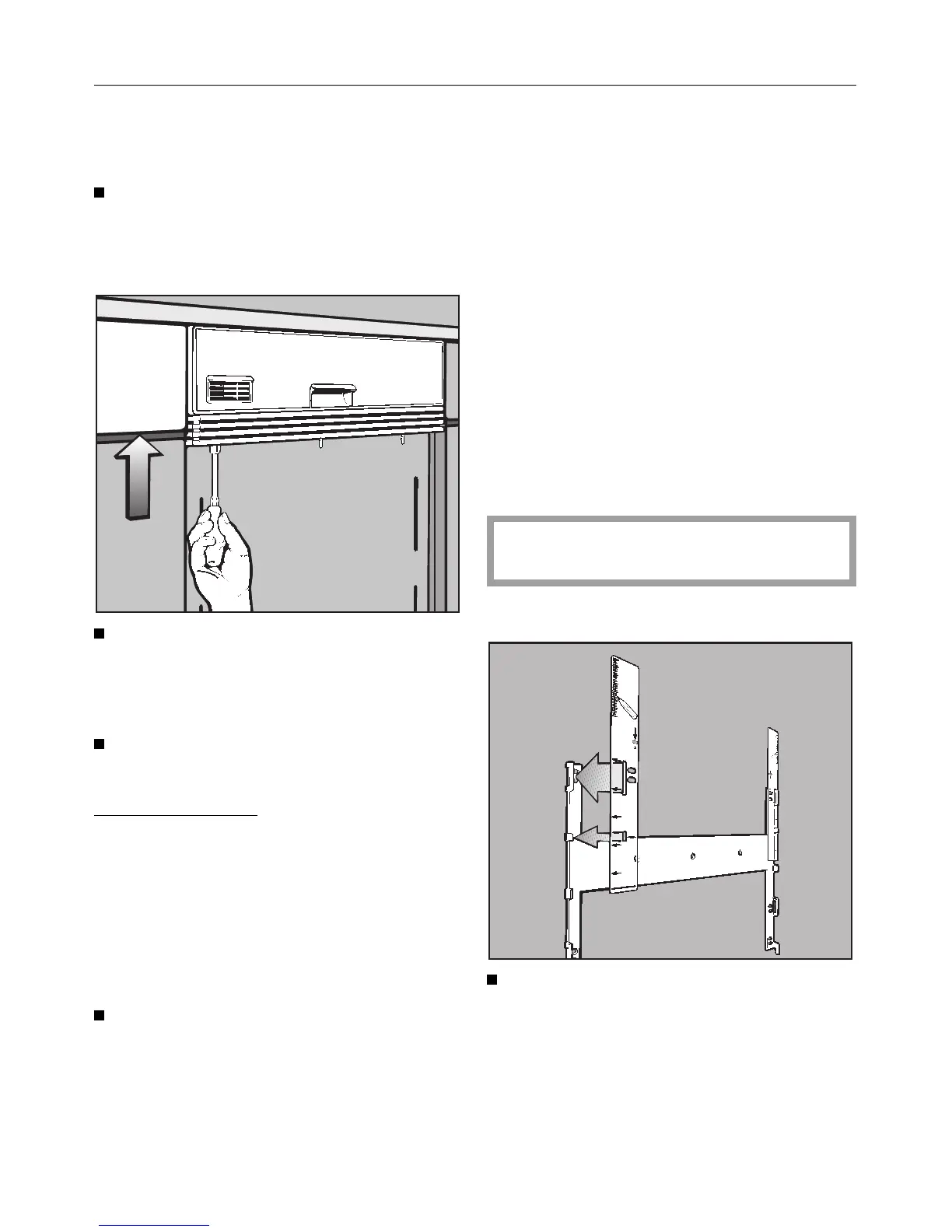

4.Aligning the control panel
with the drawer fronts.
The control panel can be aligned
with the drawer fronts of the kitchen
cabinets by adjusting the spacer
bars.
Using an 8 mm socket, turn the nut
clockwise or counterclockwise until
the spacers reach the required
height.
If necessary, individual (or all)
spacer bars can be removed.
Adjustment range
from 4 1/2" control panel with-
(112 mm): out spacer bars,
to 5 3/4" control panel with
(145 mm): four spacer bars,
to 6": using a fifth spacer bar
(154 mm): (optional accessory).
After adjusting the control panel
height, cut off the plastic screw ex-
cess.
5.Installing the custom
door panel.
A custom door panel matching the kit-
chen cabinetry can be installed on the
dishwasher by using the provided tem-
plates and bracket.
Length: 21" - 25 3/4" (53.3 - 65.4 cm)
Width: 23 1/2" (59.8 cm)
Note: The maximum panel length is
only applicable when no spacer bars
are used.
If a Stainless Steel panel is being used,
please follow the separate installation
instructions included with the panel.
After panel installation, see Step 6 “Ad-
justing the door springs”.
Place a template on each end of the
bracket as shown, making sure the
rule marks face the outside of the
bracket.
Dishwasher installation
55
