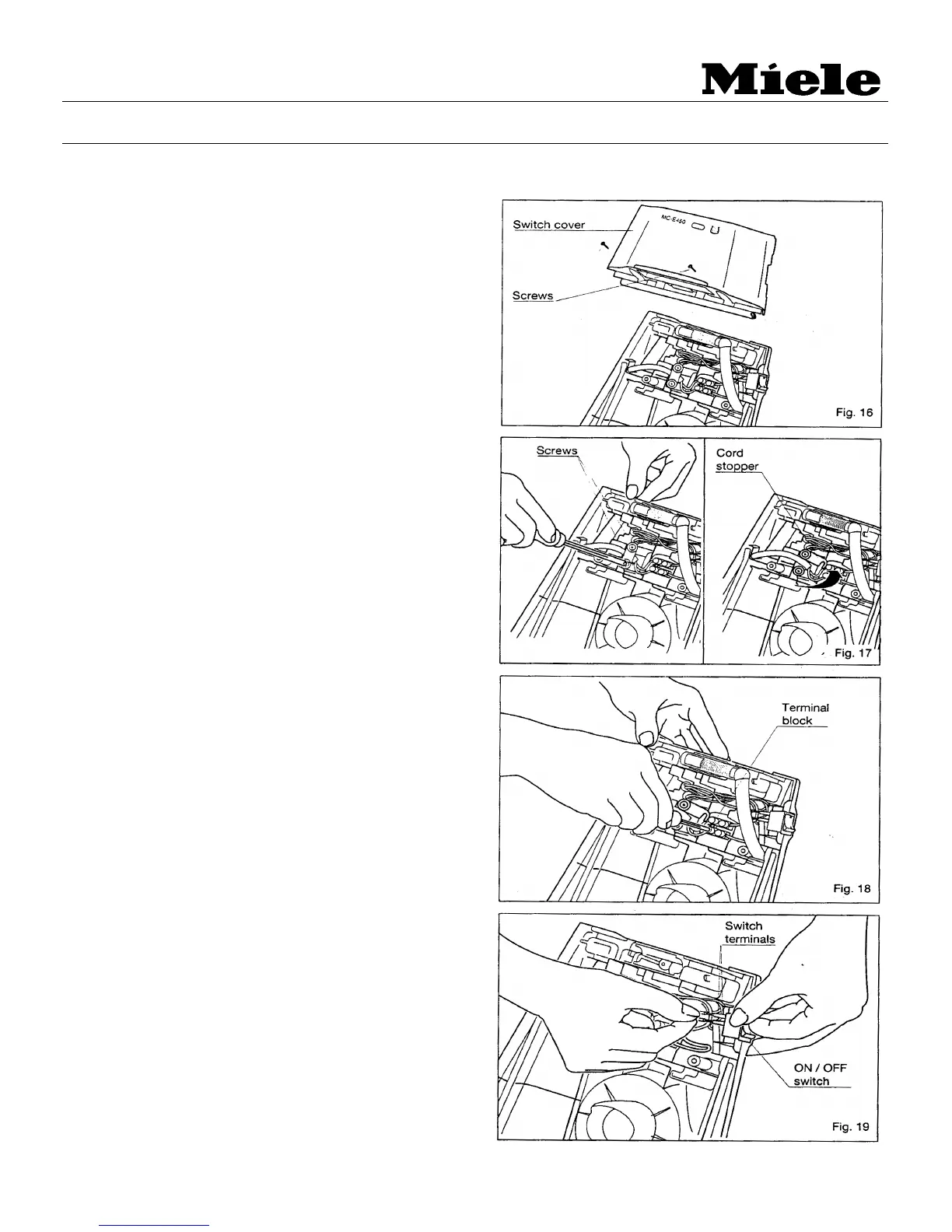

2.8 REPLACING THE POWER CORD
1. Loosen the two screws from the switch cover
and remove cover. (Fig. 16)
2. Remove the two screws from the cord stopper.
(Fig. 17)
3. Disconnect the blue and brown wires from the
terminal block to the power cord. (Fig. 18)
4. Replace the power cord and secure the new
cord using the cord stopper. Then connect the
wires to the terminal block according to the
wiring diagram.
5. Re-install the switch cover and tighten the two
screws.
2.8 REPLACING THE ON/OFF SWITCH
1. Remove the switch cover as outlined in section
2.8.
2. Disconnect the two wires (provided with
quick- terminal) from the ON/OFF switch
terminals. (Fig. 19)
3. Replace the ON/OFF switch and connect the
two wires according to the wiring diagram.
2.10 REPLACING THE POWER CONTROL
