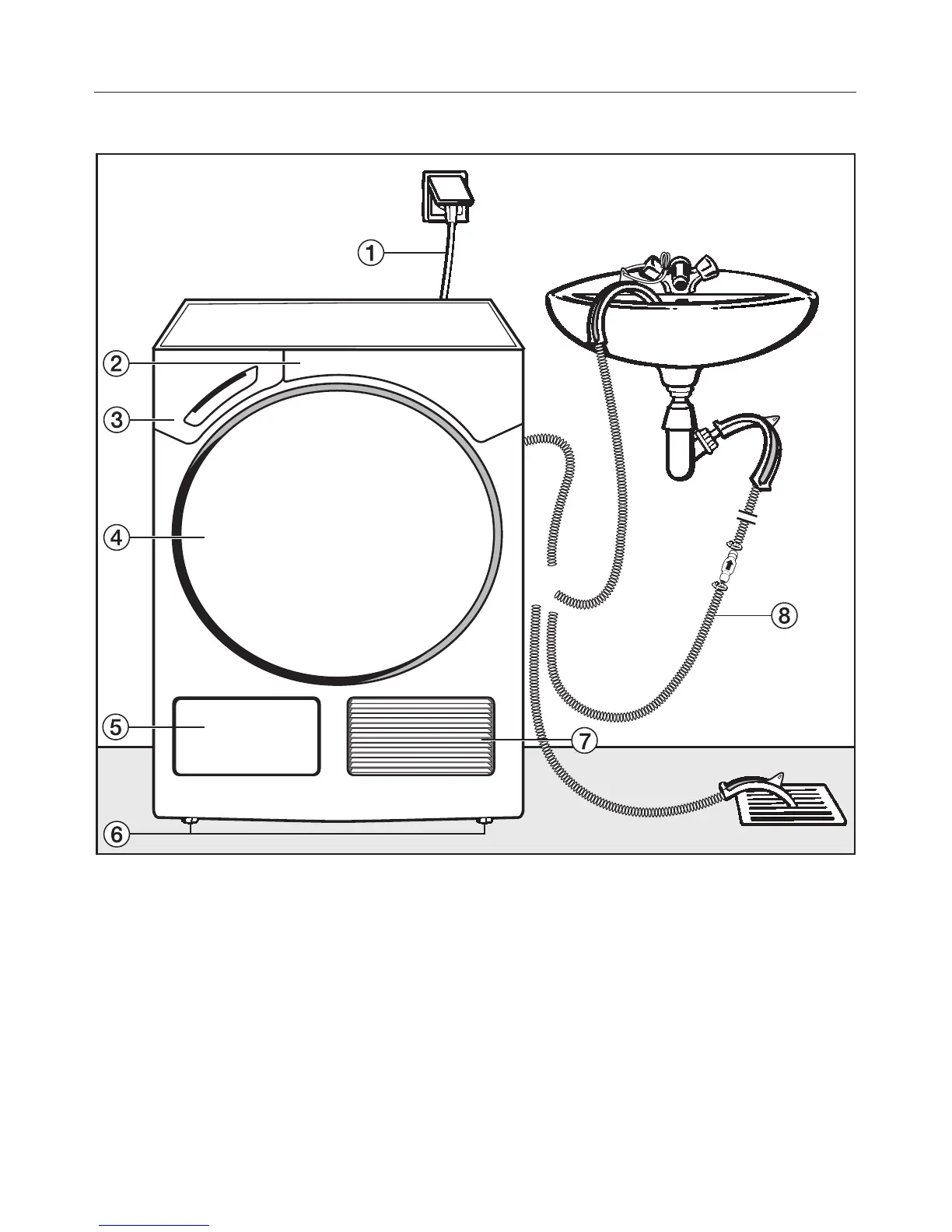

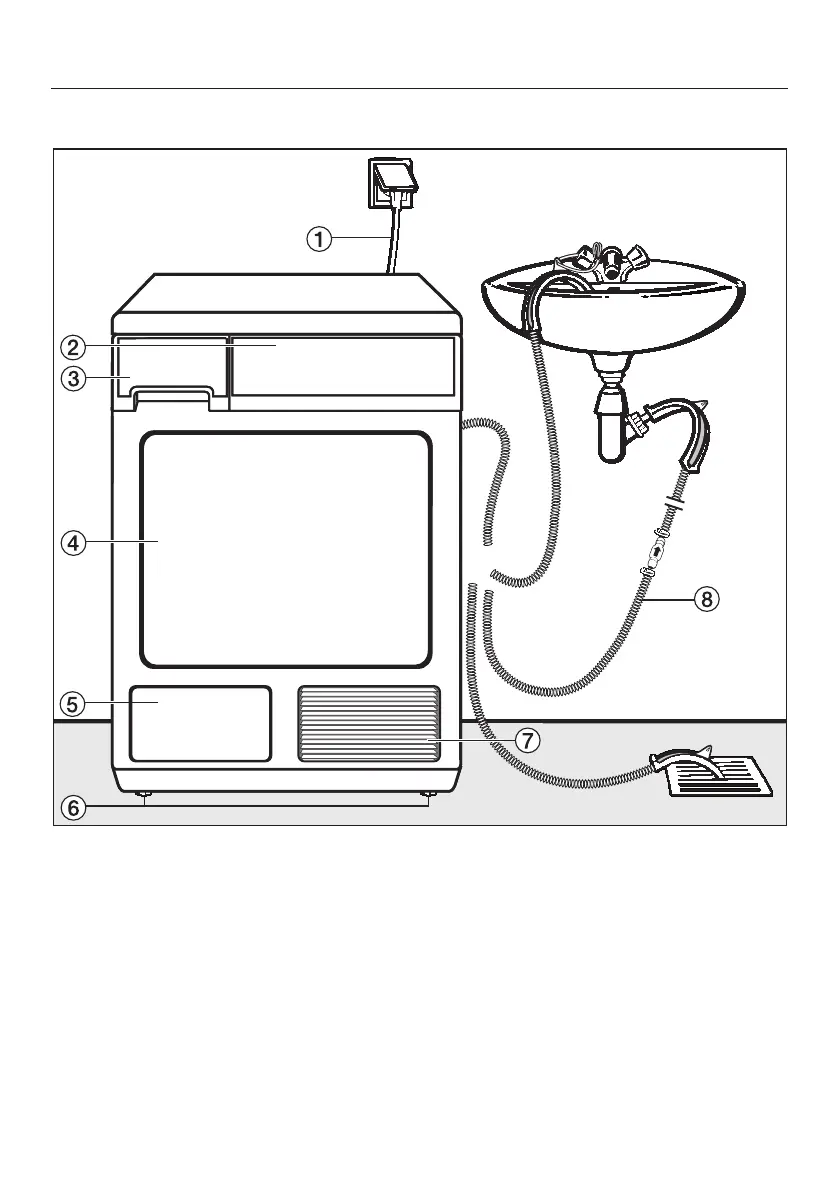

Front view
a Mains connection cable
b Control panel
c Condensed water container (empty
after every drying programme)
d Door
e Fine filter cover panel (do not open
during drying programme)
f Four height adjustable screw feet
g Cool air intake panel (do not block,
e.g. with wash basket)
h Hose for external drainage of
condensed water (see "External
condensed water outlet")
Installation and connection
41
