E Shorten the front panel from the
bottom to height H.
Preparing the fixing points
F Hold the pre-drilled front panel in the
correct position in front of the
machine door.

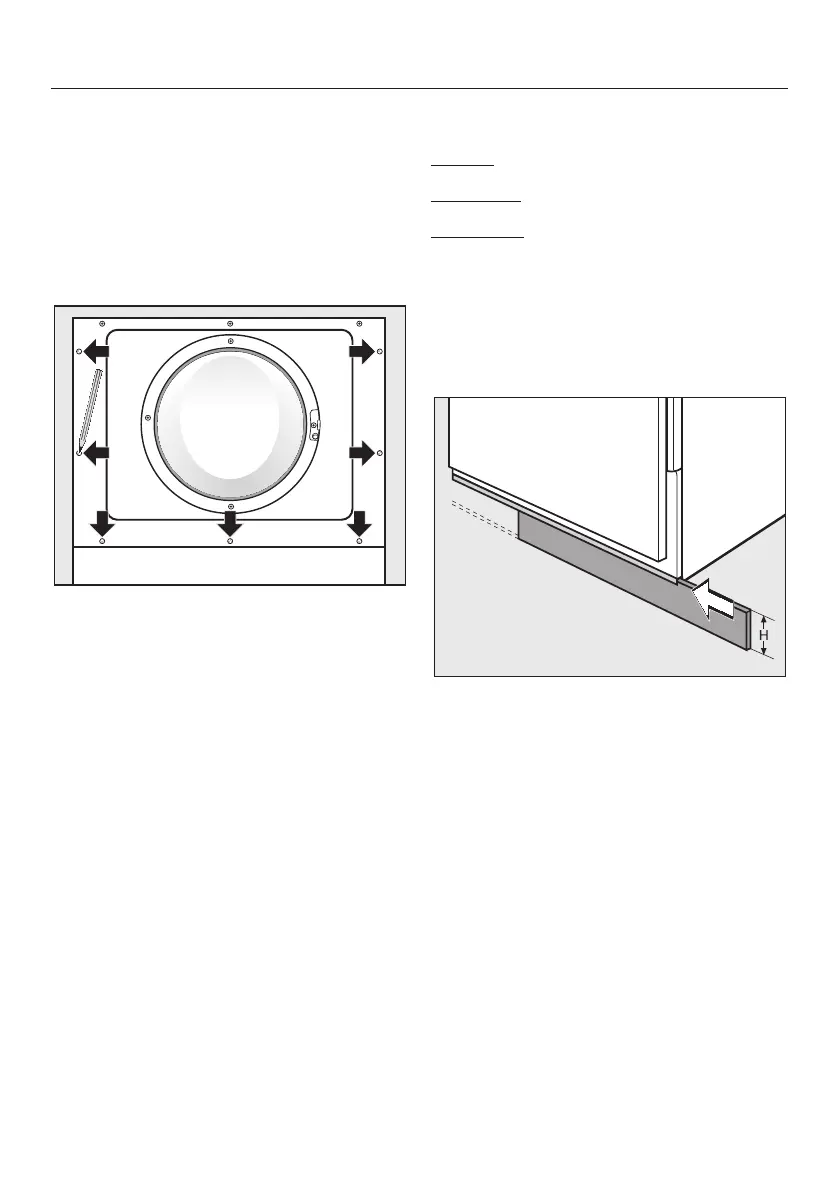

G Mark the fixing points on the back of
the front panel through the holes in
the machine door plate (see arrows
in the illustration).
H Remove the front panel.
I Now drill holes (C 2.5 mm/10 mm
deep) in the back of the front panel.
Fitting a plinth facing
The gap between the lower edge of the
machine plinth and the floor can be
closed up using a suitable kitchen
furniture plinth facing.
The machine plinth has a special
groove in which a plinth facing can be
fitted.
Plinth facing dimensions
Length
: 592-596 mm
Thickness
:8mm
Height (
H): The plinth facing height
must be calculated after aligning the
height of the machine with the screw
feet or after fitting one or two raising
kits.
Installation
^ Calculate height (H) from the floor up
into the groove (on the underside of
the washer-dryer).
^
Cut the plinth facing to size.
^
Slide it into the groove.
Useful tip:
If the machine is fitted on a raising kit,
you can use double-sided adhesive
tape on the back of the plinth facing to
secure it to the raising kit as well.
Installation and connection
75
