Pellerin Milnor Corporation
Installation Tag Guidelines
BNWG4I01.R01 0000187278 A.2 5/22/18 4:30 PM Released
42044SR2 42044SR3 42044WR2 42044WR3
60044SR2 60044SR3 60044WR2 60044WR3
72044SR2 72044SR3 72044WR2 72044WR3
NOTICE: This information may apply to models in addition to those listed above. It
applies to paper tags. It does not apply to the vinyl or metal safety placards, which must
remain permanently affixed to the machine and replaced if no longer readable.
Paper tags on the machine provide installation guidelines and precautions. The tags can be tie-on
or adhesive. You can remove tie-on tags and white, adhesive tags after installation. Yellow adhe-
sive tags must remain on the machine.

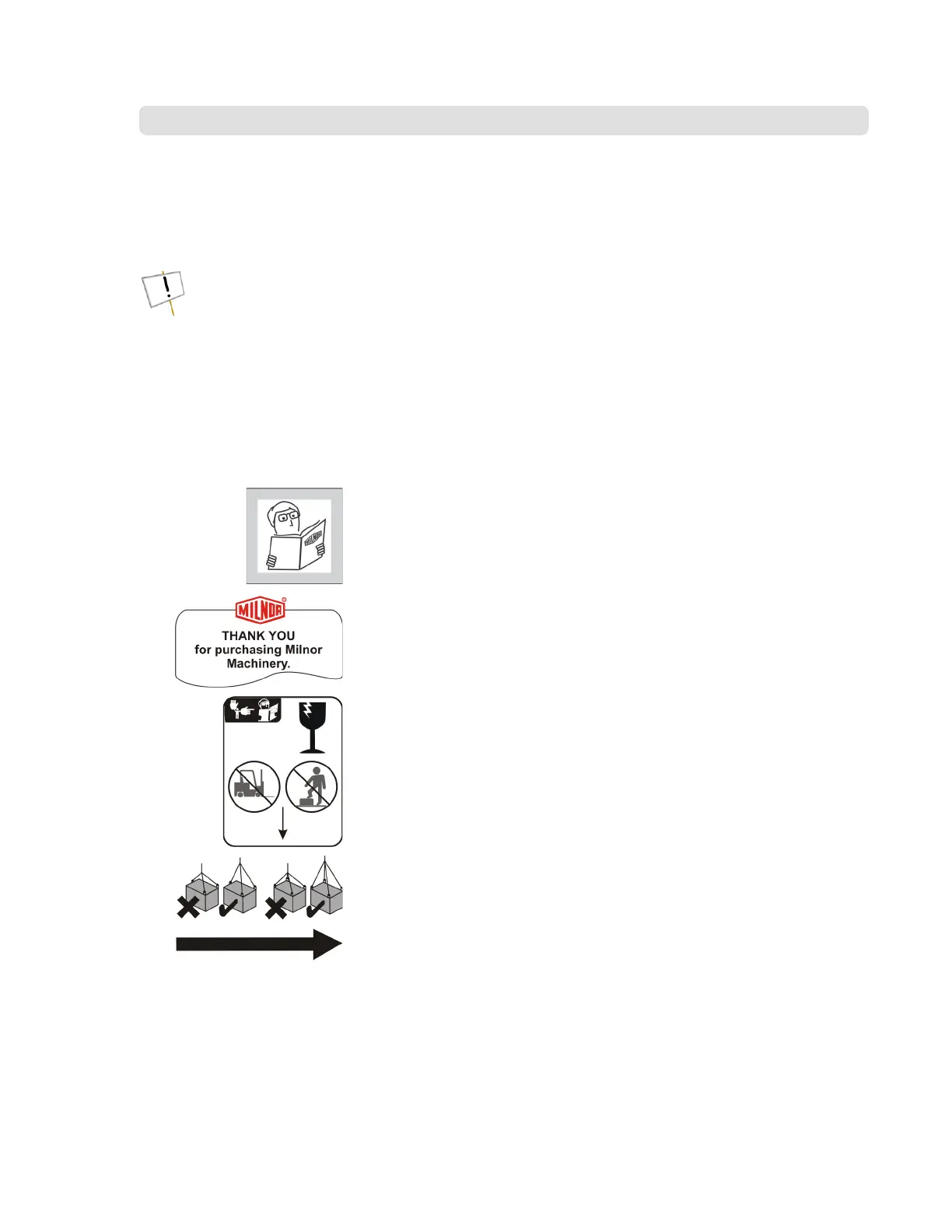

The following entries explain the installation tags. Each entry includes: 1) the tag illustration, 2)
the tag part number at the bottom of the tag, and 3) the meaning of the tag.
Display or Action Explanation
Read the manuals before proceeding. This symbol appears on
most tags. The machine ships with safety, operator, and routine
maintenance guides for customer use. Milnor dealer manuals for
installing, commissioning, and servicing the machine are also
available from the Milnor Parts department.
B2TAG88005: This carefully built product was tested and in-
spected to meet Milnor performance and quality standards by
(identification mark of tester).
B2TAG94078: Do not forklift here; do not jack here; do not step
here—whichever applies.
B2TAG94079: Rig for crane lifting (either 3-point or 4-point, de-
pending on the number of lifting eyes provided) using a steep an-
gle on the chains (closer to vertical than horizontal).
B2TAG94081: Motor must rotate in this direction. On single mo-
tor washer-extractors and centrifugal extractors, the drive motor
must turn in this direction during draining and extraction. This tag
is usually wrapped around a motor housing. If the motor turns in
the opposite direction when the machine is first tested, the electri-
cal hookup is incorrect and must be reversed as explained in the
schematic manual.
IBNWG4I01 / 2018213
BNWG4I01 0000187279 A.2 5/22/18 4:30 PM Released
14
