Pellerin Milnor Corporation
BPWMAB04.R01 0000168690 A.2 12/11/17 3:42 PM Released

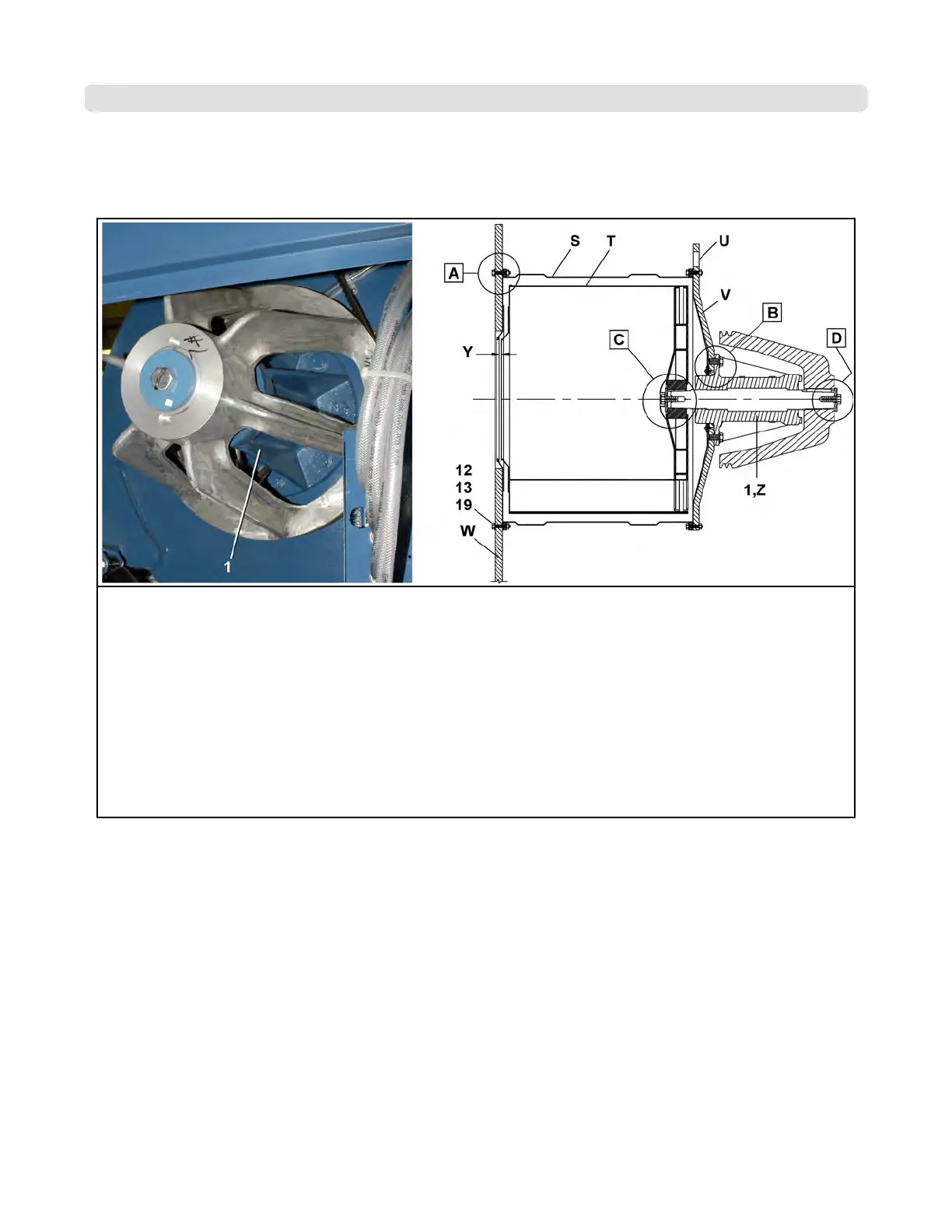

Figure 1. Cross Section: Shell, Cylinder, Bearing, Pulley
Legend
A. Top connection between the shell front and the shell side sheet.
B. Connection between the shell rear and the bearing housing
C. Connection between the cylinder rear and the bearing housing
D. Connection between the bearing housing and the pulley
S. Shell
T. Cylinder
U. Holes to lift the machine
V. Shell rear
W. Shell front
Y. This dimension must be in this range: .25 inches [6mm] — .625 inches [15mm].
Z. Bearing Housing Components, see BPWMAB03.
Bearing Installation MWF27
1 of 4
BPWMAB04 / 2017502A
BPWMAB04 0000168667 A.2 12/11/17 3:42 PM Released
