Page #8 background image

6

Basic Operations

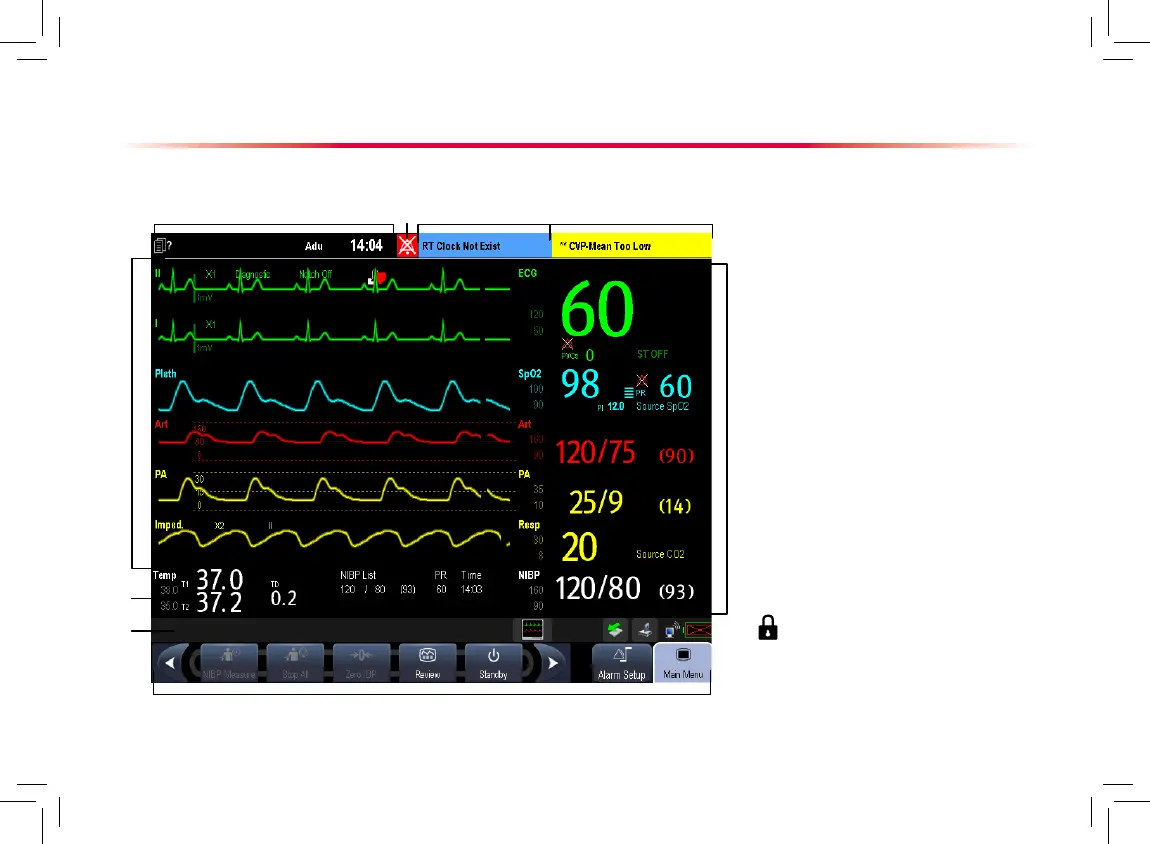

Display Screen

1 2

3

4

5

9

6

Patient Information Area

Alarm Symbols

Technical Alarm Area

1.

2.

3.

4. Physiological Alarm Area

5. Waveform Area

6. Parameter Area A

7. Parameter Area B

8. Prompt Message Area

9. QuickKeys area

Select screen items by pressing them direct-

ly on the patient monitor’s screen. You can

enable or disable touchscreen operation

by pressing and holding the [Main Menu]

QuickKey for 3 seconds. A padlock symbol

is displayed if touchscreen operation is

disabled.

Using the Touchscreen

8

7

Other manuals for Mindray BeneView T8

Service Manual234 pages

Operation Manual290 pages

Questions and Answers:

M
Melanie CollinsSep 8, 2025
What could cause the alarm lamp to fail on Mindray Medical Equipment?
- S
  Sandra WarnerSep 9, 2025
  If the alarm lamp on your Mindray Medical Equipment is not lighting up or is extinguished while the alarm sound is still active, check that the cables from the alarm LED board to the button board and from the button board to the motherboard are properly connected and undamaged. If the connections are secure, the alarm LED board, the button board, or the motherboard itself may be defective and require replacement.
R
Robin WilsonAug 23, 2025
What to do if there is no alarm sound but the alarm lamp is lit on my Mindray Medical Equipment?
- N
  nmartinezAug 23, 2025
  If your Mindray Medical Equipment's alarm lamp is lit but there's no sound, first, check if the audio alarm is disabled. To enable it, go to [Main Menu]?[Maintenance >>]?[User Maintenance >>]?enter the required password? [Alarm Setup >>], and in the popup menu, set [Minimum Alarm Volume] to an appropriate setting. Also, in the [Others] window of the [Alarm Setup] menu, set [Alm Volume] to an appropriate setting. Then check that the cable between the speaker and the motherboard is properly connected and undamaged. If the problem persists, consider that there may be an FPGA audio logic error, speaker failure, or motherboard failure, which may require an upgrade of the audio logic part of the FPGA program or replacement of the speaker or motherboard.
C
Christopher DrakeAug 25, 2025
Why is my Mindray Medical Equipment not printing?
- A
  Alex HernandezAug 25, 2025
  If your Mindray Medical Equipment is not printing, check the following: * Verify the recorder module is enabled in the [Factory Maintenance>>] menu, and check if the recorder status LED lights. * Ensure the paper roll is installed correctly. * Check that the cable between the recorder and the motherboard is properly connected and undamaged. * Confirm that the power module outputs 5 V DC and 12V DC correctly. * If the issue persists, the recorder itself may be defective and require replacement.
L
Lauren SteeleAug 26, 2025
Why does the program upgrade fail on my Mindray Medical Equipment?
- M
  Miguel RiceAug 27, 2025
  If the program upgrade fails on your Mindray Medical Equipment, consider these potential causes: * Ensure you are using the correct network connection (not the iView network connector) and that the hub or switch is functioning correctly, with properly connected network cables. * Verify that the upgrade package is a .pkg file and is selected according to system requirements. * Configure a fixed IP address in range C as specified for the patient monitor. It's recommended to avoid upgrading the program when the patient monitor is connected to a network with multiple PCs.
E
Emily Gordon PhDAug 27, 2025
What to do if the integrated display is blank on my Mindray Medical Equipment?
- C
  Christopher ZavalaAug 28, 2025
  If the integrated display on your Mindray Medical Equipment is blank but the monitor still works, check that the cables from the display to the motherboard and from the backlight board to the button board/display are correctly connected and undamaged. If the connections are secure, the backlight board, power module, or the display itself may be defective and require replacement.
C
Carolyn ArmstrongAug 29, 2025
Why does my Mindray Medical Equipment have frequent dropouts and network disconnects?
- L
  lorijonesAug 29, 2025
  Frequent dropouts and network disconnects in Mindray Medical Equipment can be caused by an incorrect LAN cable connection. Ensure the LAN cable is properly connected and is no longer than 50 meters. Also, check for IP address conflicts and reconfigure the IP address if necessary.
W
whernandezSep 16, 2025
What to do if the touchscreen does not response on Mindray Medical Equipment?
- V
  Victoria WalkerSep 16, 2025
  If the touchscreen on your Mindray Medical Equipment does not respond, check if there is a symbol shown above the [Main Menu] QuickKey. If there is, press the [Main Menu] QuickKey for more than 3 seconds to enable the touchscreen.
M
Ms. Jennifer PettySep 18, 2025
How do I fix an invalid touch position on Mindray Medical Equipment?
- J
  James MaysSep 18, 2025
  If the touch position is invalid on your Mindray Medical Equipment, calibrate the touchscreen.
B
Brittany MasseySep 7, 2025
Why is the knob not working on my Mindray Medical Equipment?
- M
  Michelle BrownSep 7, 2025
  If the knob on your Mindray Medical Equipment is not working, verify that the cables from the knob to the button board, and from the button board to the motherboard, are properly connected and undamaged. If the connections are good, the knob encoder or the button board itself may be defective and require replacement.
K
kestradaSep 4, 2025
What should I do if a USB device doesn't work with my Mindray Medical Equipment?
- A
  Amy StrongSep 4, 2025
  If a device connected to the USB port on your Mindray Medical Equipment is not functioning (assuming the peripheral device is working correctly), check that the cable between the USB interface board and the motherboard is properly connected and undamaged. If the connection is good, the USB interface board or the motherboard itself may be defective and require replacement.

Mindray BeneView T8 Specifications

General

Touchscreen	Yes
Battery Life	Up to 4 hours (depending on usage)
Connectivity	Wi-Fi
Monitoring Parameters	ECG, SpO2, NIBP
Display Type	LED Backlight
Battery Type	Lithium-ion battery
