Calibration and System Checks Calibration/Maintenance
2 - 2 0070-10-0591-01 Trio™ Service Manual
2.4 Calibration and System Checks
2.4.1 Device Appearance and Installation Checks
Inspect the Trio Monitor to ensure that:
• The outer housing of the device is clean and has no scratches or cracks
• When shaking the device, there are no loose components
• All keys are smooth and free for operation
• Labels are complete, sufficient and accurate
• Standard configuration is complete and all connectors are installed securely
2.4.2 Maintenance Menu
The MAINTENANCE menu provides access to all user operable calibration checks. It also
provides access to certain technical information and settings. To access the
MAINTENANCE menu, turn the unit on, rotate the Navigator™ knob to highlight the
MENU icon at the bottom of the screen and push the knob to select the SYSTEM MENU.
From the SYSTEM MENU, select MAINTENANCE.

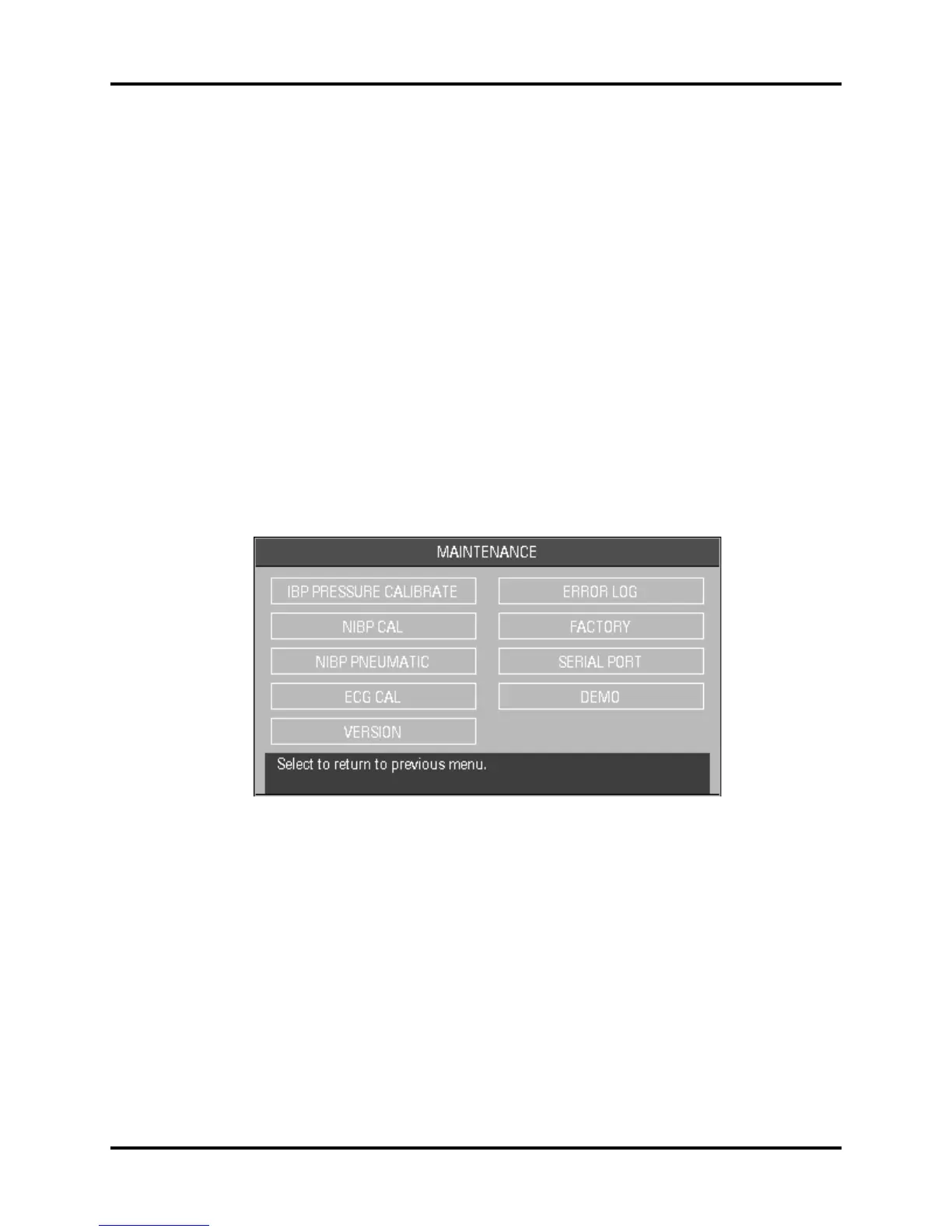

FIGURE 2-1 Maintenance Menu DIAP units (S/N MC15000-XX and above)
