Repair Information ECG Cable ESIS and Non ESIS
4.6 ECG Cable ESIS and Non ESIS

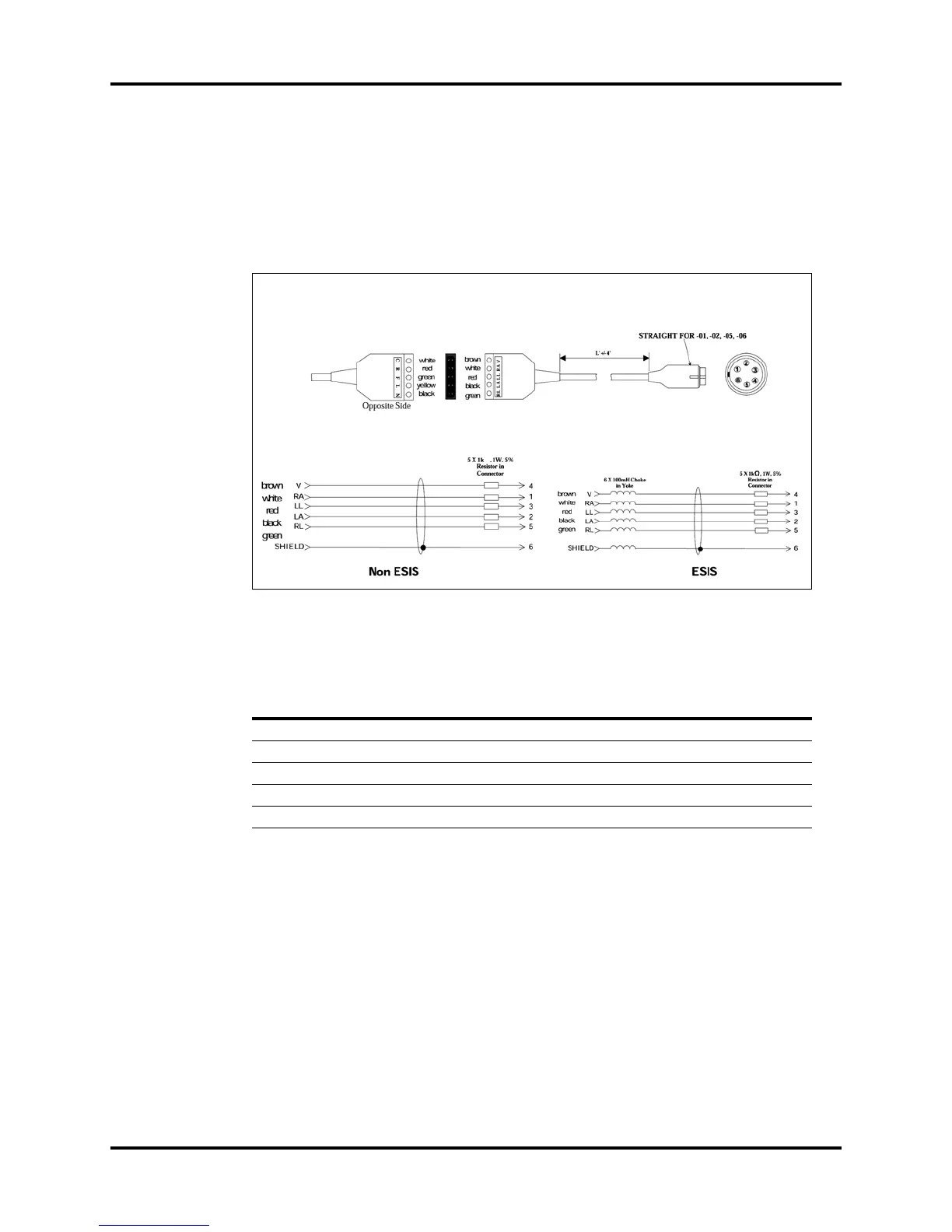

FIGURE 4-5 ECG Cable ESIS and Non ESIS (P/N 0012-00-1255-XX)
P/N 0012-00-1255-XX
- 01 10’ Straight Non ESIS - 05 10’ Straight ESIS
- 02 20’ Straight Non ESIS - 06 20’ Straight ESIS
ANSI/AAMI EC53-1995 IEC CONVENTIONAL STANDARD
LEAD COLOR LEAD COLOR
V Brown Chest (C) White
Right Arm (RA) White Right Arm (R) Red
Left Leg (LL) Red Left Leg (F) Green
Left Arm (LA) Black Left Arm (L) Yellow
Right Leg (RL) Green Right Leg (N) Black
