| 25 |
The washer is recommended to be installed by a professional service engineer.

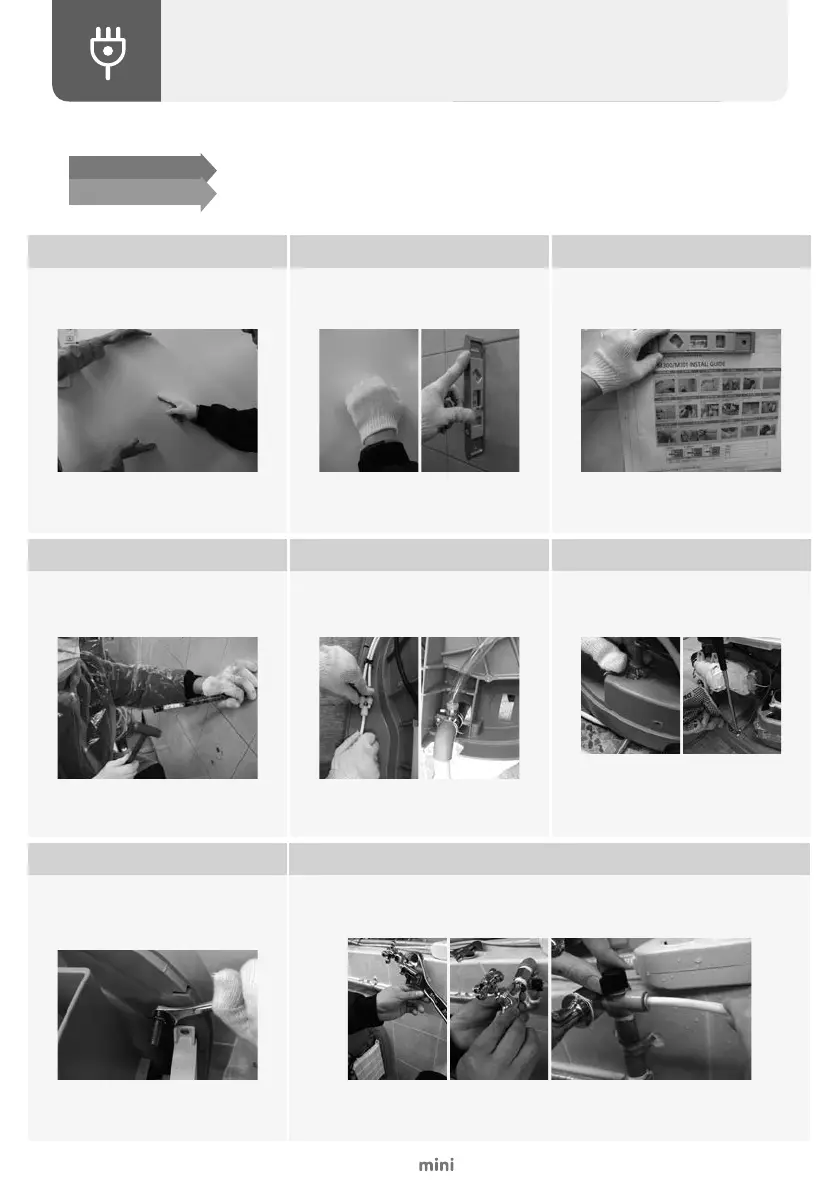

Installation Guide
- Determine the installation site after discussing
the site structure with the customer.
※ Breast-high location is convenient for installation.
※ Installation and use are convenient with access to water
supply, drainage, and electric outlets.
1. Determine the location for installation
- Knock on the wall with your hand to check the
existence of retaining wall inside.
※ Install the washer on an even wall.
2. Inspect wall
- Use a level meter for attachment.
- Attach a guide and mark the hole spot.
※ Attach the manual in consideration of actual product
size.
3. Attach installation instruction manual
- Fix set anchors with an anchor hammer.
※ Redo the fixation if the anchor cap protrudes above the
wall surface after fixation.
6. Fix set anchors
- Insert the inlet hose until the elbow makes a snapping sound.
- Connect the clamp inside the synchronous motor after fixing the
drain house to the synchronous motor.
※ Connect hoses properly to prevent leaks.
※ Insert the inlet/drain hoses into the back holes after
connection.
7. Connect inlet and drain hoses
- Clean the power cord to release
- Disconnect the ground wire to the connector and clean or
replace if you want to see the description below.
8. Clean up the power code
- Connect the fixing nut (1EA) after inserting the
flat washer (1EA) and spring washer (1EA) and
then connecting a regular nut (1EA).
- Fasten the nut with Ø14 spanner.
※ Excessive fastening of nut may destroy the product or
wall tile.
※Fixing nut must be fastened tight.
12. Fix the washing machine
Lock the water supply valve Disassemble the water supply valve
Install the branching adapter Branch off the inlet hose
※ Wrap the connection of branching adapter and water supply valve with Teflon tape.
※ Examine whether a water leak occurs after instillation.
13-1. Install the inlet hose - Regular Tap
Install the washer without plugging in the power cord.
Before installation
Perform a test run to identify any water leaks or abnormal noise.
After installation
※
Disconnect the connector and the ground wire to connect the
power cord as shown in the figure.
※
Fix the upward power cord tight with clamp cords.
※
Fix the grounding wire with grounding screws.
※
Do not ground multiple grounding wires in a single place.
미니_DWD-M221MB(영)_호주향_1도.indd 25 2017-07-04 오후 4:46:36
