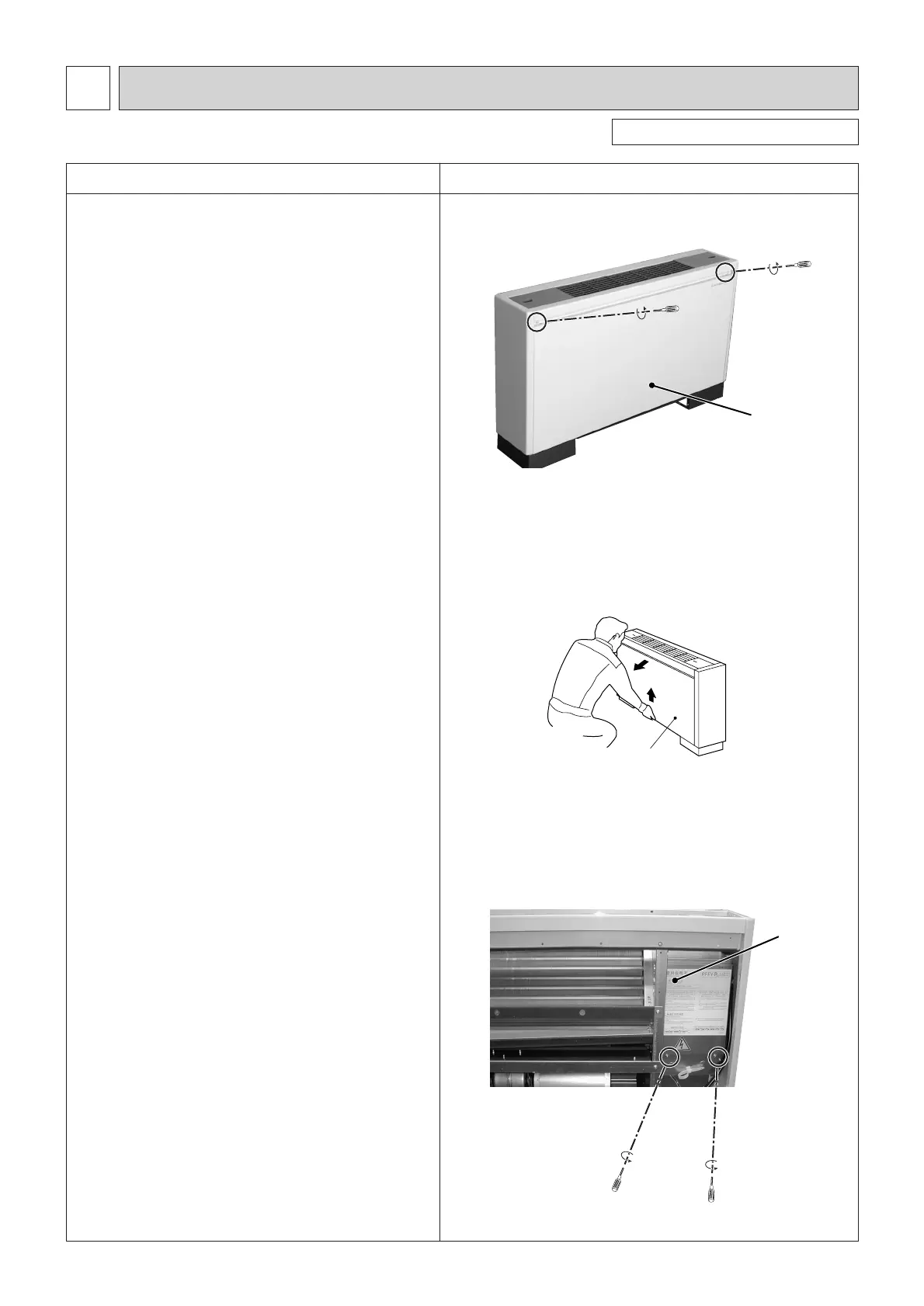

DISASSEMBLY PROCEDURE8
8-1 CONTROL BOX (Exposed type PFFY-NEMU)
Be careful removing heavy parts.
1.Removing the front panel (A)
(1)Remove the fixing screws(two) of the front
panel(A).(Fig.1)
(2)Hold the bottom of the front panel with your
hands,and gently lift it. The front panel should fall
down forward.(Fig.2)
2.Removing the control box cover (B)
(1)Remove the fixing screws(two) of the cover(B) and
remove the cover.(Fig.3)
OPERATING PROCEDURE PHOTOS
