Weight of product:
PUHY-P400 PUHY-P500
455 kg 475 kg
Caution:
Be very careful to carry product.
- Do not have only one person to carry product if it is more than 20 kg.
- PP bands are used to pack some products. Do not use them as a
mean for transportation because they are dangerous.
- Do not touch heat exchanger fins with your bare hands. Otherwise you
may get a cut in your hands.
- Tear plastic packaging bag and scrap it so that children cannot play
with it. Otherwise plastic packaging bag may suffocate children to death.
- When carrying in outdoor unit, be sure to support it at four points. Car-
rying in and lifting with 3-point support may make outdoor unit unsta-
ble, resulting in a fall of it.

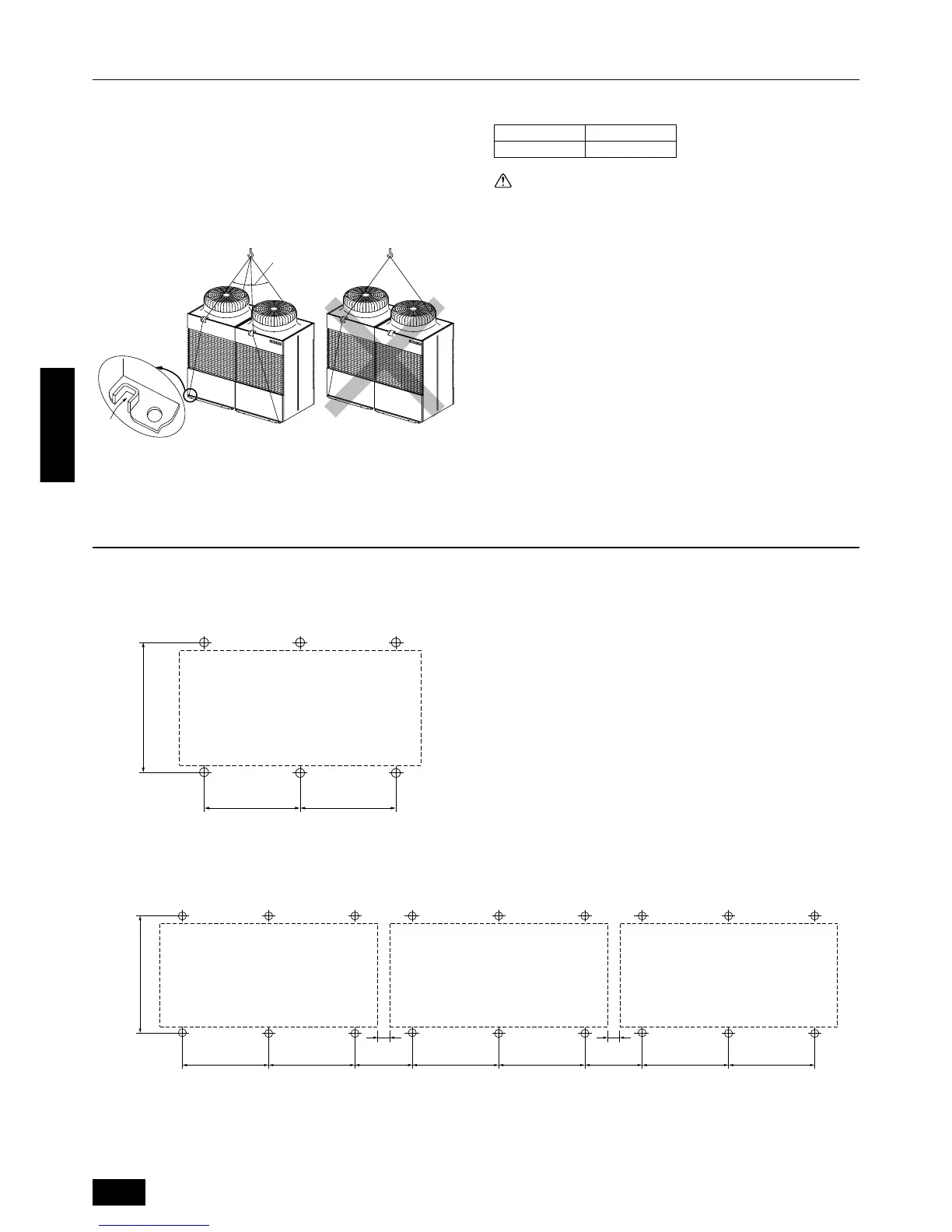

7. Lifting method and weight of product
8.1. Location of anchor bolt
• Individual installation
• Example of collective installation
10 10
780±2
880±5
780±2 440 440780±2 780±2 780±2 780±2
For collective installation, provide a 10 mm gap between units.
A (Service side)
8. Installation of unit
Dangerous!
• When carrying the unit suspended, pass the ropes under the unit
and use the two suspension points each at the front and rear.
• Always lift the unit with ropes attached at four points so that impact is
not applied to the unit.
• Attach the ropes to the unit at an angle of 40° or less.
• Use two ropes at least 8 m long.
B
A
A 40° or less
B Rope suspension part
780±2
880±5
A
780±2
To Next Page
