M-Series - Controls (December 2016)
Due to continuing improvement, above specication may be subject to change without notice.
© 2016 Mitsubishi Electric US, Inc.
* MAC-333IF-E required
New functions have been added to the CITY MULTI series that
enable the setting of certain indoor unit functions (such as static
pressure) from the remote controller. (For more detailed infor-
mation, please contact your nearest sales ofce or distributor.)
MSY-GL09/12/15/18/24NA*
MSZ-D30/36NA*
SLZ-KA09/12/15NA
SEZ-KD09/12/15/18NA4
MVZ-A09/12/15/18/24AA4
MSZ-FH06/09/12/15NA*
MSZ-FH18NA2*
MSZ-FE09/12NA*
MSZ-EF09/12/15/18NAW(B)(S)
*
MSZ-GL06/09/12/15/18/24NA
*
MSZ-D30/36NA*
14.5[9/16]
83.5[3-9/32]
120[4-3/4]
70[2-3/4]
Unit:mm[in.]
14.5[9/16]
83.5[3-9/32]
120[4-23/32]
70[2-3/4]
Unit:mm[in.]
Controller specifications
Specifications
Product size 70 (W) × 120 (H) × 14.5 (D) mm (2-3/4 × 4-3/4 × 9/16 [in])
(not including the protruding part)
Net weight 0.1 kg (1/4 lb.)
Rated power supply voltage 12 VDC (supplied from indoor units)
Power consumption 0.3 W
Usage environment Temperature 0 ~ 40ºC (32 ~ 104ºF)
Humidity 30 ~ 90%RH (with no dew condensation)
SBA + CPlairetaM
Specications
Applicable Models
Dimensions
Descriptions

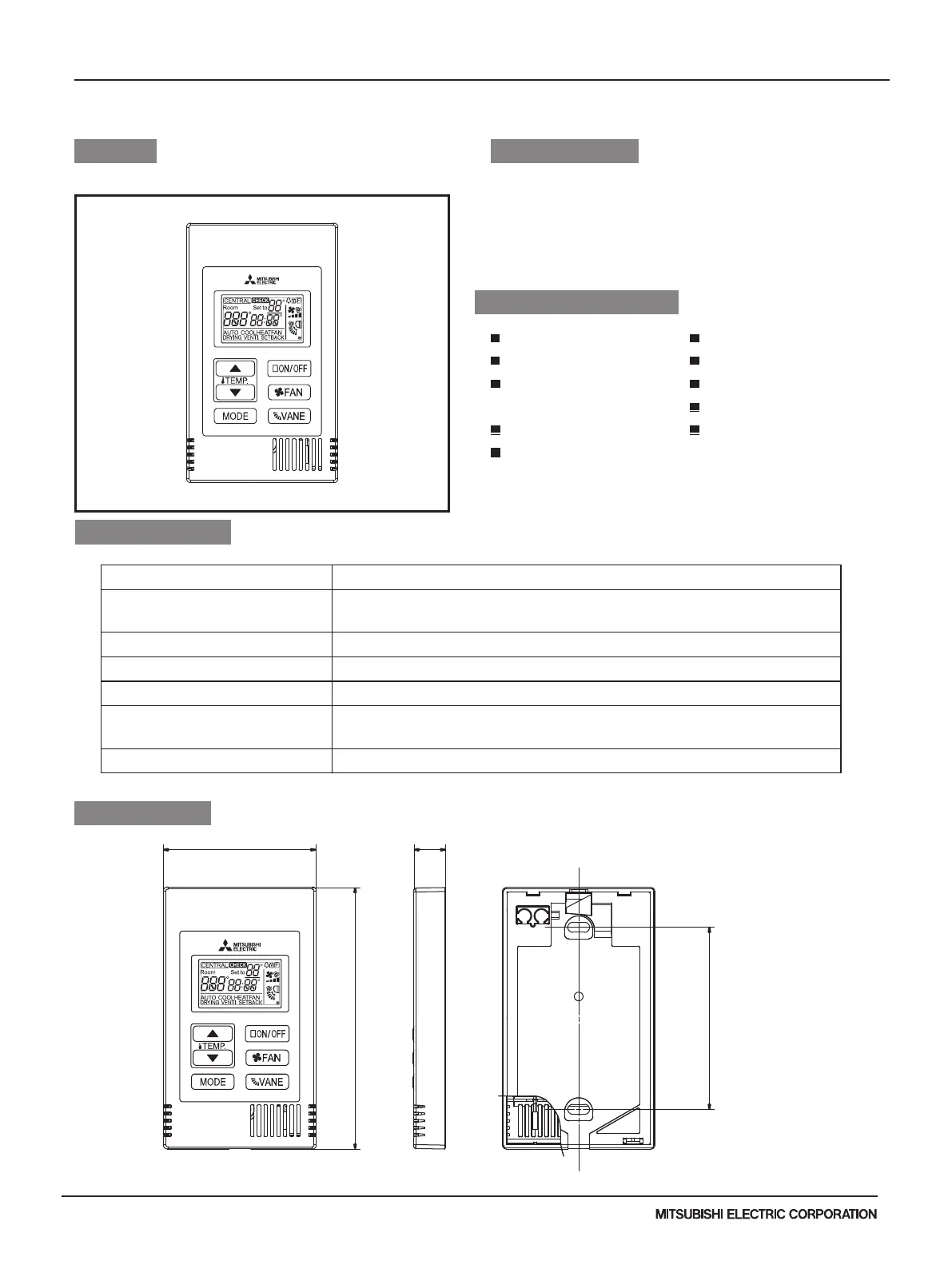

1-3. Simple MA Remote Controller [PAC-YT53CRAU]
