90
M-Series - Controls (December 2016)
Due to continuing improvement, above specication may be subject to change without notice.
© 2016 Mitsubishi Electric US, Inc.
A-control MXZ models can be connected to “M-NET” through optional M-NET
converter so that they can be monitored / controlled effectively and meticulously.
Mounted inside the electrical utility box of outdoor
unit. (Temperature: -20 to 60 , humidity: 90% or
less (no condensation))
Supplied from power supply unit
Power
Operating conditions
Weight
0.3kg
0.8 W (at 30 V DC)
Power consumption
Unit: mm
18
50
SW1
CN5
(Connect to outdoor controller board)
140
SW11 (M-NET Address<ones digit>)
SW12 (M-NET Address<tens digit>)
CN2M (M-NET)
MXZ-3C24/3C30/4C36/5C42NA2
Specications
Descriptions
Dimensions
Applicable Models

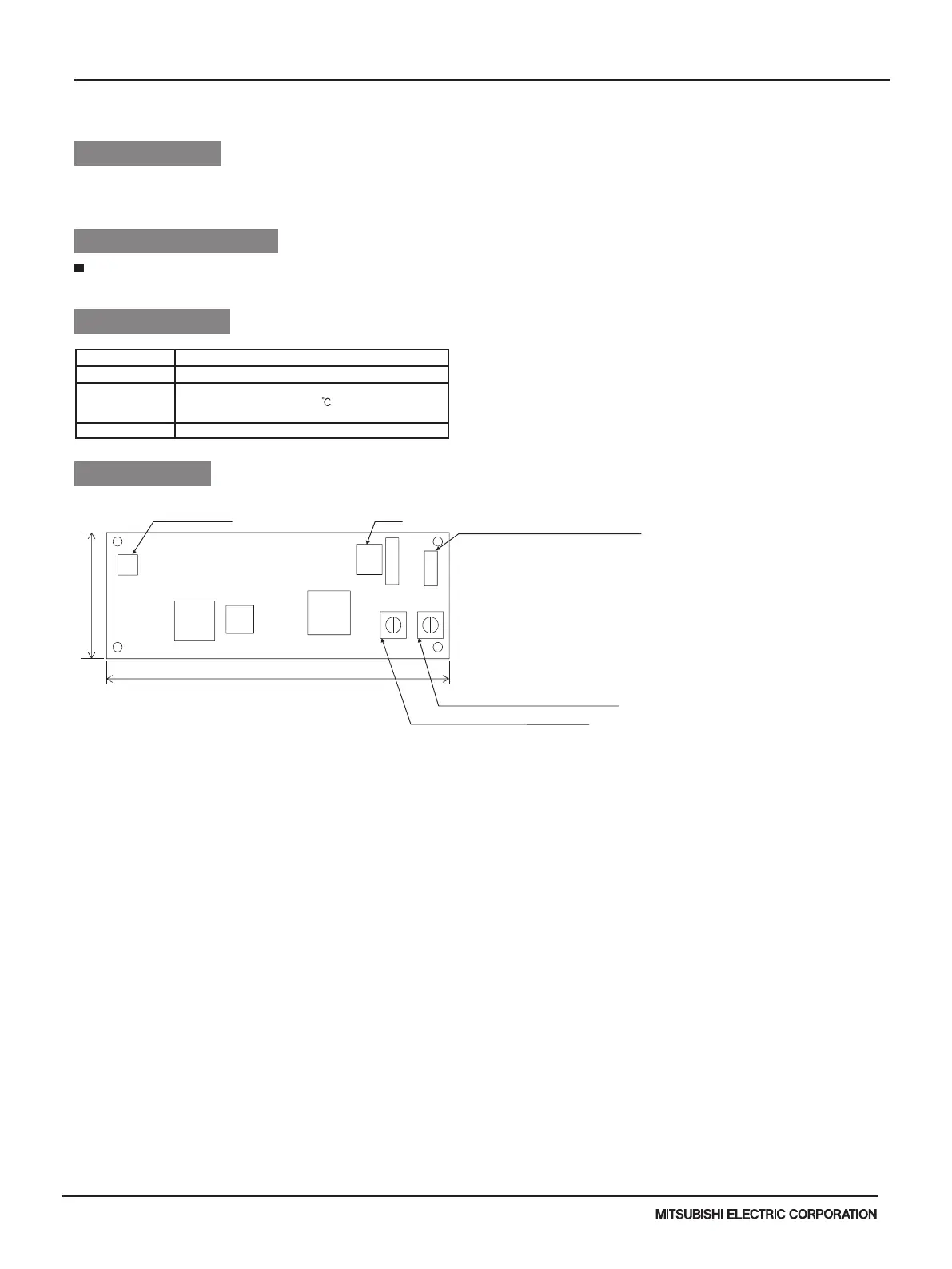

1.12. System Control Interface [PAC-IF01MNT-E]
1. CONTROLS
