Enables to pick up the room temperature at the remote position.
Cover
Base
Cord entrance
ø6 hole
Cord entrance
70
15
10
10
R
55
R
7
83.5(Installation pitch)
120
Unit : mm
Temperature: -20 to 65 Humidity: 30 to 90% RH (no condensation)
White gray (Munsell 4.48Y 7.92/0.66)
Material: ABS resin
Installation method
Mounting on single-type switch box (JIS C8336) or directly mounting on wall
Accessory
2-wire cable (12m), Connector with post, Fixing screw (x2)
Exterior
120 (H) x 70 (W) x 15 (D)
External dimensions (mm)
Operating conditions
When combining with environmental measurement controller
Temperature measuring range
-20 to 65
Measurement resolution
0.1 (10 to 35 ), 0.5 (other temperature ranges)
SLZ-KA09/12/15NA
SEZ-KD09/12/15/18NA4
PKA-A12/18HA6
PKA-A24/30/36KA6
PCA-A24/30/36/42KA6
PLA-A12/18/24/30/36/42BA6
PEA-A12/18AA6
PEAD-A24/30/36/42AA5
PVA-A30/36/42AA4
1. CONTROLS
Dimensions
Figure
Descriptions
Applicable Models
Specications

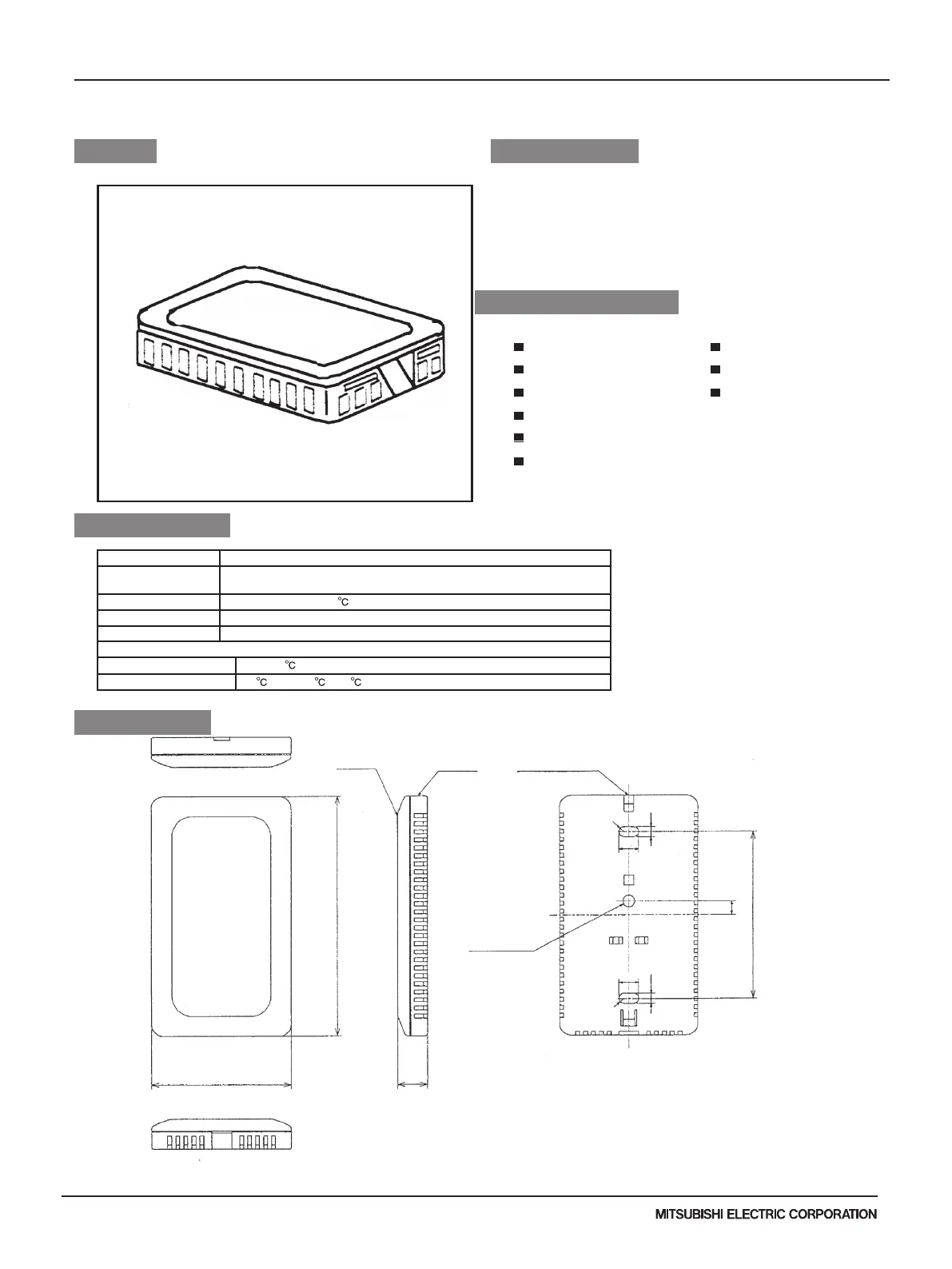

1-9. Remote Sensor [PAC-SE41TS-E]
To Next Page
