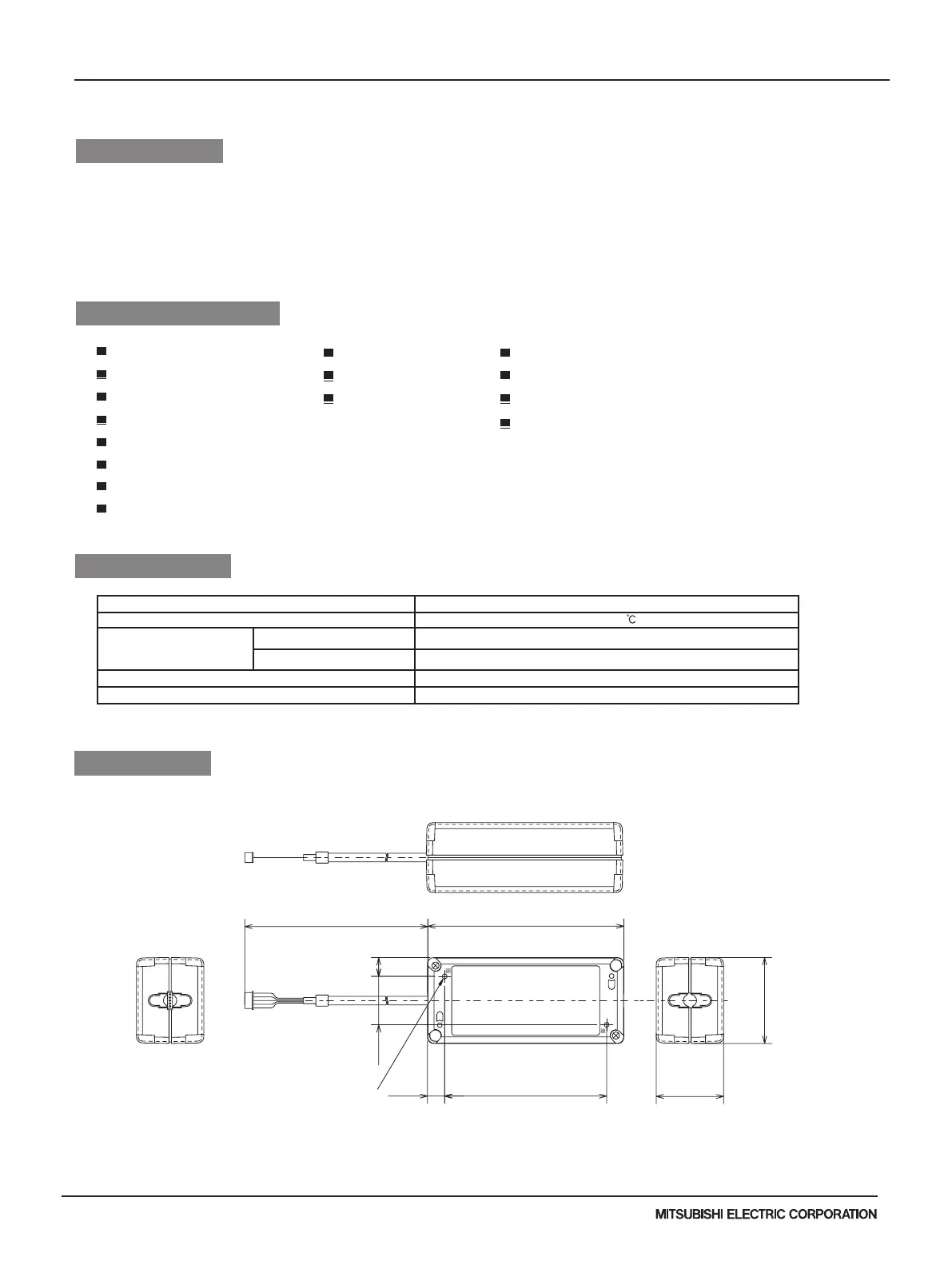

M-Series - Controls (December 2016)

Due to continuing improvement, above specication may be subject to change without notice.

484

Specications

System Control Interface

MAC-333IF-E

Descriptions

Applicable Models

Dimensions

(2 places indicated by asterisks)

Holes to fix the interface to the wall

2000

160

13.5

132

39.5

Unit: mm

Indoor only (ambient temperature: 0 to 40 , no condensation)

Operating conditions

12V DC (supplied from indoor unit)

Power

2-wire (recommended: optional PAC remote controller cable PAC-YT81HC)

Connection of

MA smooth remote controller

/ MA deluxe remote controller

Communication cable

Communication cable distance Max. 10m

Indoor unit connecting cable

Weight

Dedicated 5-wire cable

360 g (including indoor unit connecting cable)

Enables to control multiple air conditioners from a (remote) location by con-

necting the On/Off contact point. It can also control the operation of the relay

with error signals by connecting the MA remote controller PAR-32MAA.

SLZ-KA09/12/15NA

SEZ-KD09/12/15/18NA4

MVZ-A09/12/15/18/24AA4

PCA-A24KA6 *1

PLA-A18/24BA6 *1

PEA-A12/18AA6 *1

PEAD-A24AA5 *1

*1 P series indoor units can be

used in combination SUZ or

MXZ outdoor units.

MSZ-FH06/09/12/15NA

MSZ-FH18NA2

MSZ-FE09/12NA

MSZ-EF09/12/15/18NAW(B)(S)

MSZ-GL06/09/12/15/18/24NA

MSZ-D30/36NA

MSY-GL09/12/15/18/24NA

MSY-D30/36NA
