M-Series - Controls (December 2016) 61
© 2016 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
Allows for a Mitsubishi Electric indoor unit to communicate
with to the kumo cloud
TM
app and web.
SLZ-KA09/12/15NA
SEZ-KD09/12/15/18NA4
MVZ-A09/12/15/18/24AA4
PKA-A12/18HA6
PKA-A24/30/36KA6
PCA-A24/30/36/42KA6
PLA-A12/18/24/30/36/42BA6
PEA-A12/18AA6
PEAD-A24/30/36/42AA5
PVA-A30/36/42AA4
MSZ-FH06/09/12/15NA
MSZ-FH18NA2
MSZ-EF09/12/15/18NAW(B)(S)
MSZ-GL06/09/12/15/18/24NA
MSZ-D30/36NA
MSY-GL09/12/15/18/24NA
MSY-D30/36NA
Input Voltage DC12.7V (from indoor unit)
Power consumption MAX 2W
Size W×H×D (mm,inch) 89×48.6×19.2, 3.5×1.9×0.8
Weight 105g, 3.7oz (including cable )
RF channel 1ch ~ 11ch
Radio protocol IEEE 802.11b/g/n (20)
Encryption AES
Authentication PSK
2
1
No Item Description
1 WPS switch It activates WPS.
2 RESET switch It resets the system and ALL settings.
3 LED1 (Green) It shows the wireless communication state.
4 LED2 (Orange) It shows the PAC-WHS01WF-E state.
5 LED3 (Green) It shows the local communication state.
4
3
5
Interface unit
[with connecting cable
(5-core)]
1
Mounting cord
clamp
1
Screw for mounting
3.5×16
1
Fastener
(for bundling the wires)
1
Screw for mounting
4×16
1
Components

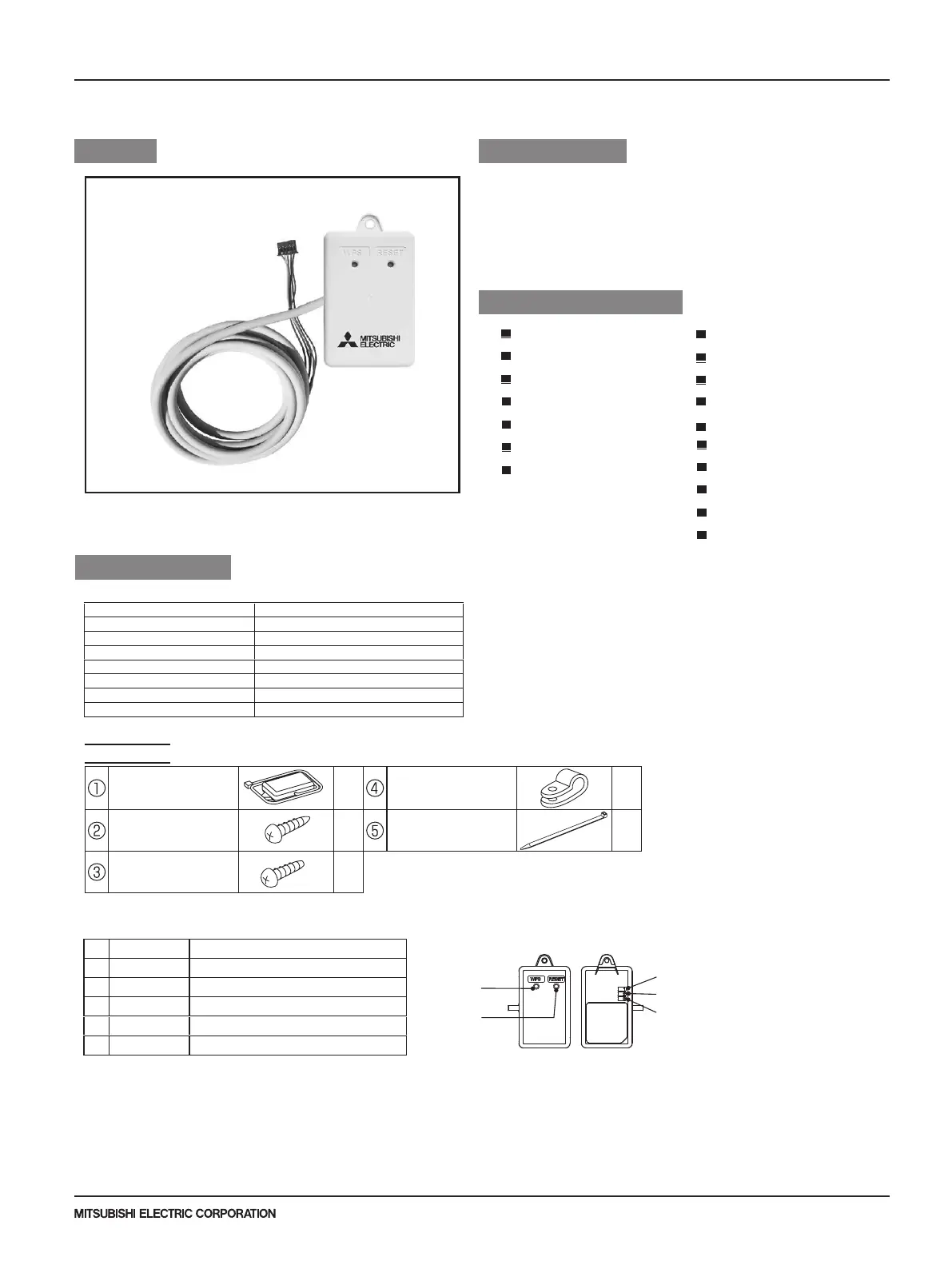

1-5. Wireless Adapter [PAC-WHS01WF-E]
Specications
Applicable Models
Descriptions
1. CONTROLS
To Next Page
