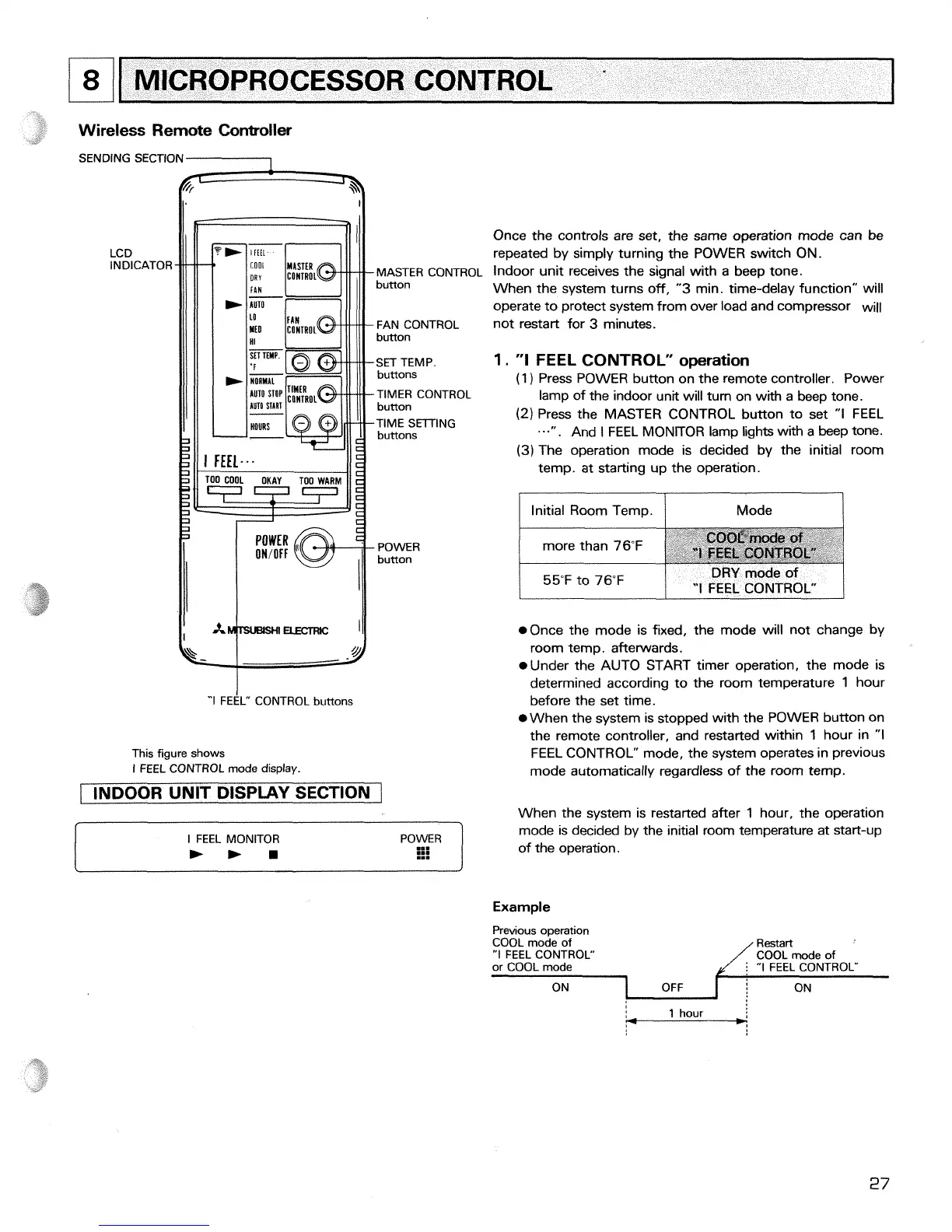

MICROPROCESSOR CONTROL
Wireless Remote Controller
SENDING SECTION I
LCD
INDICATOR
rooi
DRY MASTER CONTROL
button
LO
FAN CONTROL
HI bunon
St1 TEMP
SET TEMP.
bunons
AUTO STOP TIMER CONTROL
AUTO SPRT bunon
HOURS TIME SETTING
bunons
TO0 COOL OKAY TOO WARM
POWER
bunon
I
'I FEEL" CONTROL bunons
This figure shows
I FEEL CONTROL mode display.
[ INDOOR UNIT DISPLAY SECTION I
I FEEL MONITOR
bb.
POWER
... ...
Once the controls are set, the same operation mode can be
repeated by simply turning the POWER switch ON.
Indoor unit receives the signal with a beep tone.
When the system turns off,
"3 min. time-delay function" will
operate to protect system from over load and compressor will
not restart for
3 minutes.
1. "I FEEL CONTROL" operation
(1 ) Press POWER button on the remote controller. Power
lamp of the indoor unit will tum on with a beep tone.
(2) Press the MASTER CONTROL button to set "I FEEL
. . . ". And I FEEL MONITOR lamp lights with a beep tone.
(3) The operation mode is decided by the initial room
temp. at starting up the operation.
1 Initial Room Temp. / Mode
!
*Once the mode is fixed, the mode will not change by
room temp. afterwards.
*Under the AUTO START timer operation, the mode is
determined according to the room temperature
1 hour
before the set time.
When the system is stopped with the POWER button on
the remote controller, and restarted within
1 hour in "I
FEEL CONTROL" mode, the system operates in previous
mode automatically regardless of the room temp.
When the system is restarted after 1 hour, the operation
mode is decided by the initial room temperature at start-up
of the operation.
Example
Previous operation
COOL mode of
"I FEEL CONTROL"
COOL mode of
or COOL mode
