Menu system
INDOORCLIMATE
HOTWATER
MYINSTALLATION
INFO
22
o
-5
o
54
o
Outdoor
tempeature
Indoor temperature
(if room sensors are installed)
Hot water temperature
Information about
operation
Temporary lux
(if activated)
Menu 1 - INDOOR CLIMATE
Setting and scheduling the indoor climate. See information in
the help menu or user manual.
Menu 2 - HOT WATER
Setting and scheduling hot water production. See information
in the help menu or user manual.
This menu only appears if a water heater is installed in the
system.
Menu 3 - INFO
Display of temperature and other operating information and
access to the alarm log. See information in the help menu or
user manual.
Menu 4 - MY INSTALLATION
Setting time, date, language, display, operating mode etc. See
information in the help menu or user manual.
Menu 5 - SERVICE
Advanced settings. These settings are not available to the end
user. The menu is made visible by pressing the Back button for
7 seconds in the top screen. See page 68 for details.

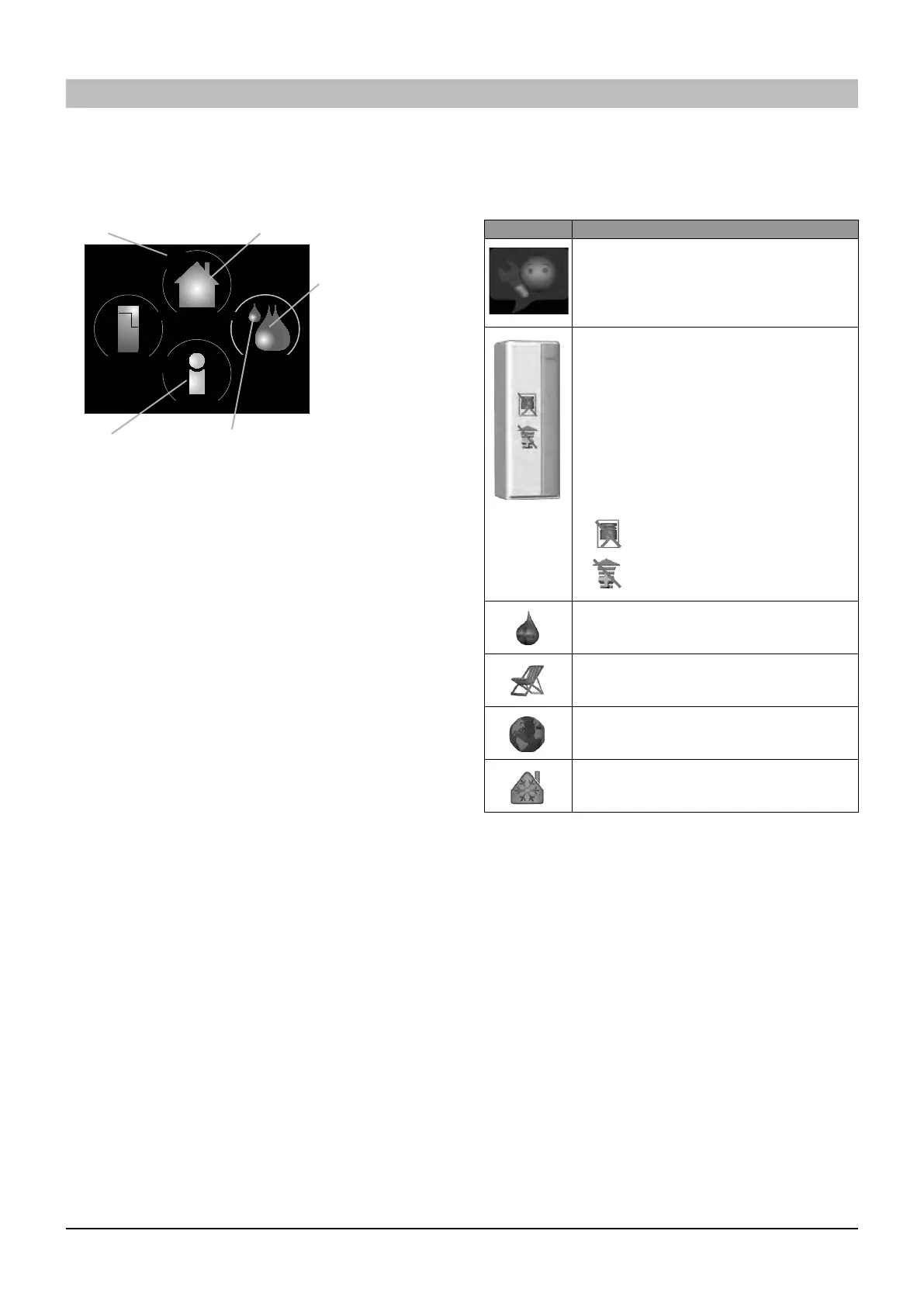

Symbols in the display
Symbol Description
This symbol appears when there is informa-
tion to be noticed in menu 3.1.
These two symbols indicate whether the
compressor in the outdoor unit or additional
heat in the installation is blocked via
controller.
These functions will be blocked for example,
when either of the operation mode is blocked
in menu 4.2, when blocking of either function
is scheduled in menu 4.9.5, or when an alarm
for blocking the operation occurs.
Blocking the compressor.
Blocking additional heat.
This symbol appears if periodic increase or
lux mode for the hot water is activated.
This symbol indicates if "holiday setting" is
active in menu 4.7.
This symbol indicates if the controller has
contact with myUpway.
This symbol indicates if cooling is active.
The following symbols can appear in the display during
operation.
These two symbols indicate whether the
compressor in the outdoor unit or additional
heat in the installation is blocked via control-
ler.
