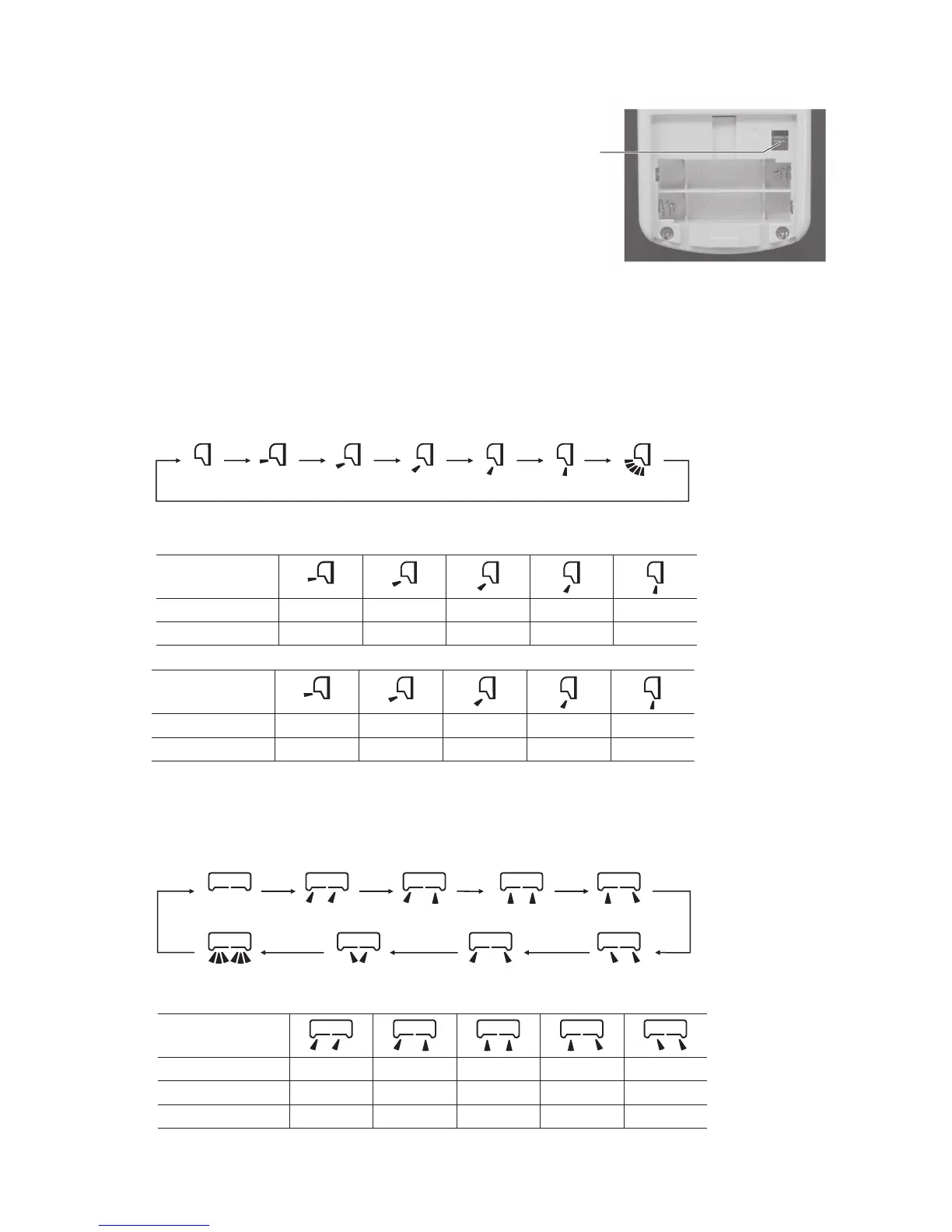

(b) Modifying the wireless remote controller
1)
Remove the battery.
2)
Cut the jumper wire shown in the figure at right.
Cut
(5) Flap and louver control (SRK and SRF series only)
4
SRK series
Control the flap and louver by AIRFLOW


(UP/DOWN) and

(LEFT/RIGHT) button on the wireless remote controller.
(a) Flap
Each time when you press the AIRFLOW


(UP/DOWN) button the mode changes as follows.
COOL , DRY, FAN
Remote controller
display
HEAT
Approx. 5°
Approx. 20°
Approx. 20°
Approx. 35°
Approx. 35°
Approx. 45° Approx. 75°
(Swing)
(Flap stopped)
Approx. 45°
Approx. 60°
Approx. 60°
󱓻

Angle of Flap from Horizontal
Mode SRK20~60ZJX-S
COOL , DRY, FAN
Remote controller
display
HEAT
Approx. 10°
Approx. 25°
Approx. 25°
Approx. 40°
Approx. 40°
Approx. 50° Approx. 70°
Approx. 50°
Approx. 60°
Approx. 60°

Model SRK20~50ZJ-S
(b) Louver
Each time when you press the AIRFLOW

(LEFT/RIGHT) button the mode changes as follows.
Center installation
Remote controller
display
Right end installation
Left end installation
󱓻

Angle of Louver
Left Approx. 50°
Left Approx. 50°
Left Approx. 20°
Left Approx. 45°
Center
Left Approx. 30°
Right Approx. 20°
Center
Right Approx. 50°
Right Approx. 20°
Left Approx. 20° Center Right Approx. 30° Right Approx. 45° Right Approx. 50°
(Louver stopped)
(Swing) (Spot) (Wide)
