Disassembly and Reassembly
Console Box
Disassembly

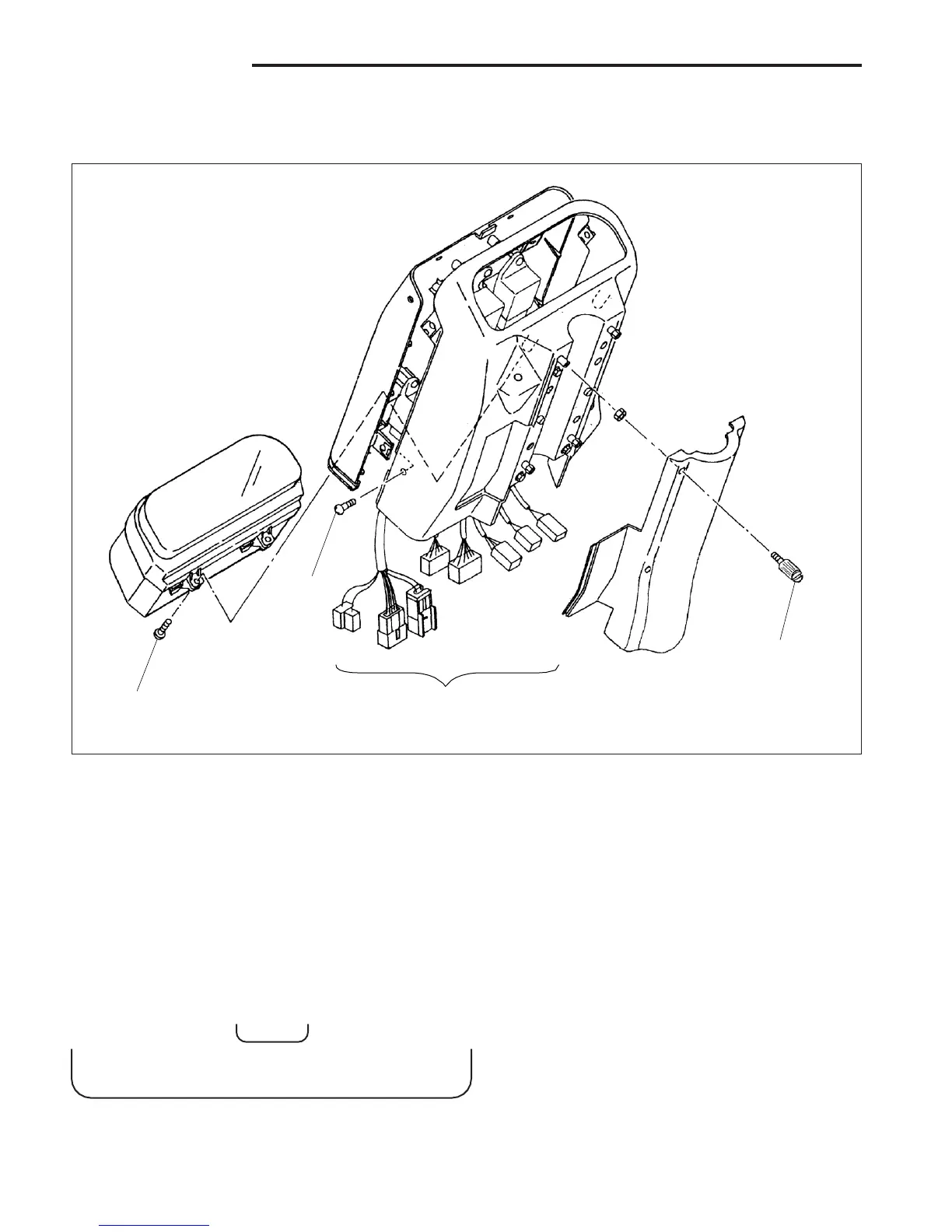

1.
Disconnect the electrical wires at connectors 1.
(In the gasoline models, disconnect the choke cable
on the engine side.)
2.
Remove screws 2 (four) securing the cover.
3.
Remove screws 3 (six) and separate the front and
rear panels.
4.
Remove screws 4 (four) securing the instrument
panel.
Reassembly
To reassemble the console box, follow the reverse of
disassembly procedure.
To replace the instrument panel bulbs, remove screws
3 and 4.
