ELECTRICAL SYSTEM
3-7
A
B
C
D
E
F
G
H
J
101441D

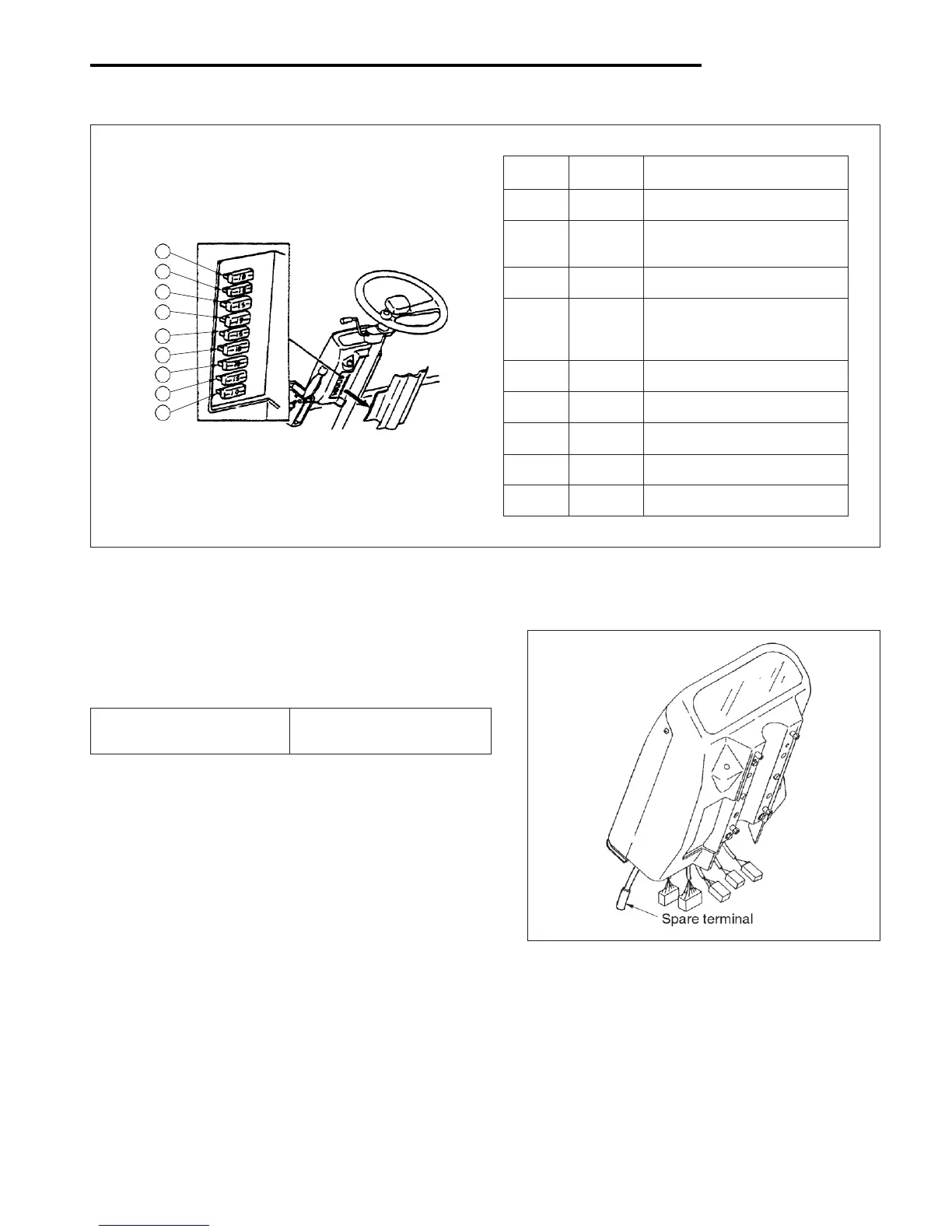

Fuse Box
Code
Amp
Circuit
A
10 A
SOLENOID (F-R)
B
15 A
Stop lamp, turn signals,
backup lamps
C
15 A
Spare terminal
D
15 A
Tail lamps, clearance lamps,
working lamps (option),
Instrument panel lamps
E
15 A
Head lamps
F
10 A
Spare fuse
G
10 A
Horn
H
15 A
Fuel pump relay
J
10 A
Engine, ECU
Spare Terminals
The spare terminal cord extends from the fuse box in the
console box. (Another spare terminal is located on the
chassis-side main harness.)
Removing the console box rear panel will expose this spare
terminal which is fastened to the harness protector with vinyl
tape.
Cord color
Lg (yellowish green)
206424
