3 Controller
Parallel I/O unit 3-78
■ Installation method
The expansion parallel input/output unit is installed outside of the controller. Connect with the network
connection cable (NETcable-1) from the RIO connector in the rear/into of the controller.(Terminator is connected
at the time of shipment)

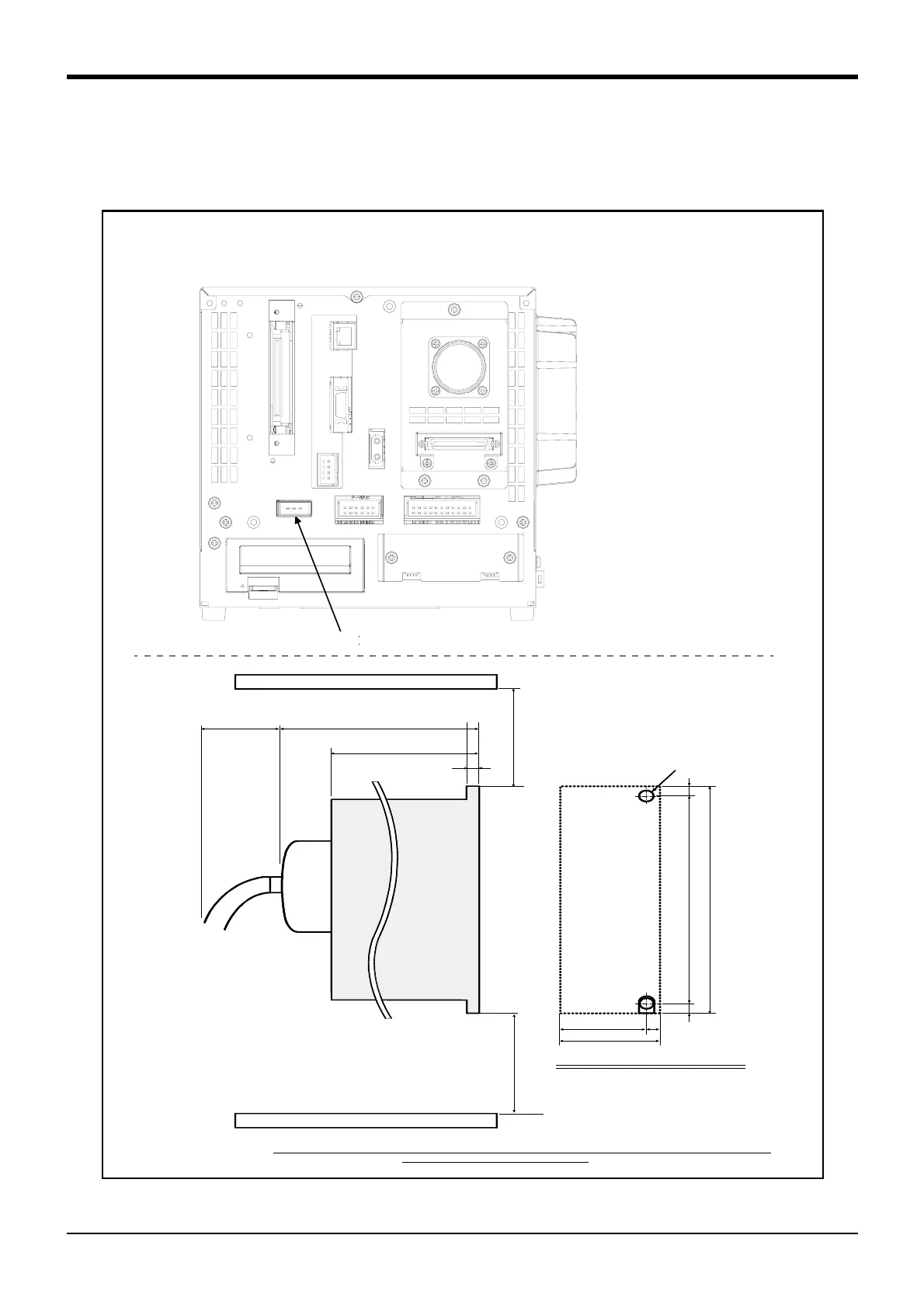

Fig.3-27 ： Installing the parallel I/O unit （CR1DA-700 series）
60
54 6
放熱、配線余裕
150
6
156
2-Ｍ ５ネ ジ
6
168
放熱余裕
128
(1 75 )
100
天
配線余裕
(4 0)
地
<2A-RZ361>
制御盤取付寸法
2A-RZ361の取付寸法
6
<CR1DA-700 series>
RIOコネクタ
コントローラ背面
Controller rear
upside
downside
Wiring space
Heat radiation space
Radiation/wiring space
2-M5 screw
Control panel installation dimensions
Installation dimensions of 2A-RZ361/371 (The controller outside installation)
* The figure is standard specification.
(CE marking specification is the same.)
