Part II: Installation
Connecting a DTV Receiver
Connecting a DTV Receiver
DTV Receiver with RGB Video
Connections
(Figure 2)
Connect the outside antenna, cable, or
satellite to ANT, or SATELLITE IN on the
DTV receiver (see your DTV receiver’s
owner’s guide for instructions, and cable
compatibility).
Connect the incoming terrestrial antenna,
or cable (not satellite) to ANT-A on the
TV back panel (a coaxil splitter, available
at most electronic supply stores, may be
required to complete this installation).
Connect the RGB cables from the DTV
receiver to the TV back panel as listed
below (if your DTV receiver uses BNC-
type cables, use the adaptors shown in
gure 1, page 20):
DTV Receiver TV Back Panel
G (green) = Y
R (red) = Pr
B (blue) = Pb
If the DTV receiver has outputs for H
and V sync, connect as listed below
(DO NOT connect if DTV receiver uses
“Sync on Green”):
H (horizontal sync) = H
V (vertical sync) = V
Connect the L (left) and R (right) audio
cables from the DTV receiver and to
DTV AUDIO on the TV back panel.
To utilize the benets of a digital A/V
receiver, connect your DTV receiver’s
digital audio out to a digital input on your
digital A/V receiver.

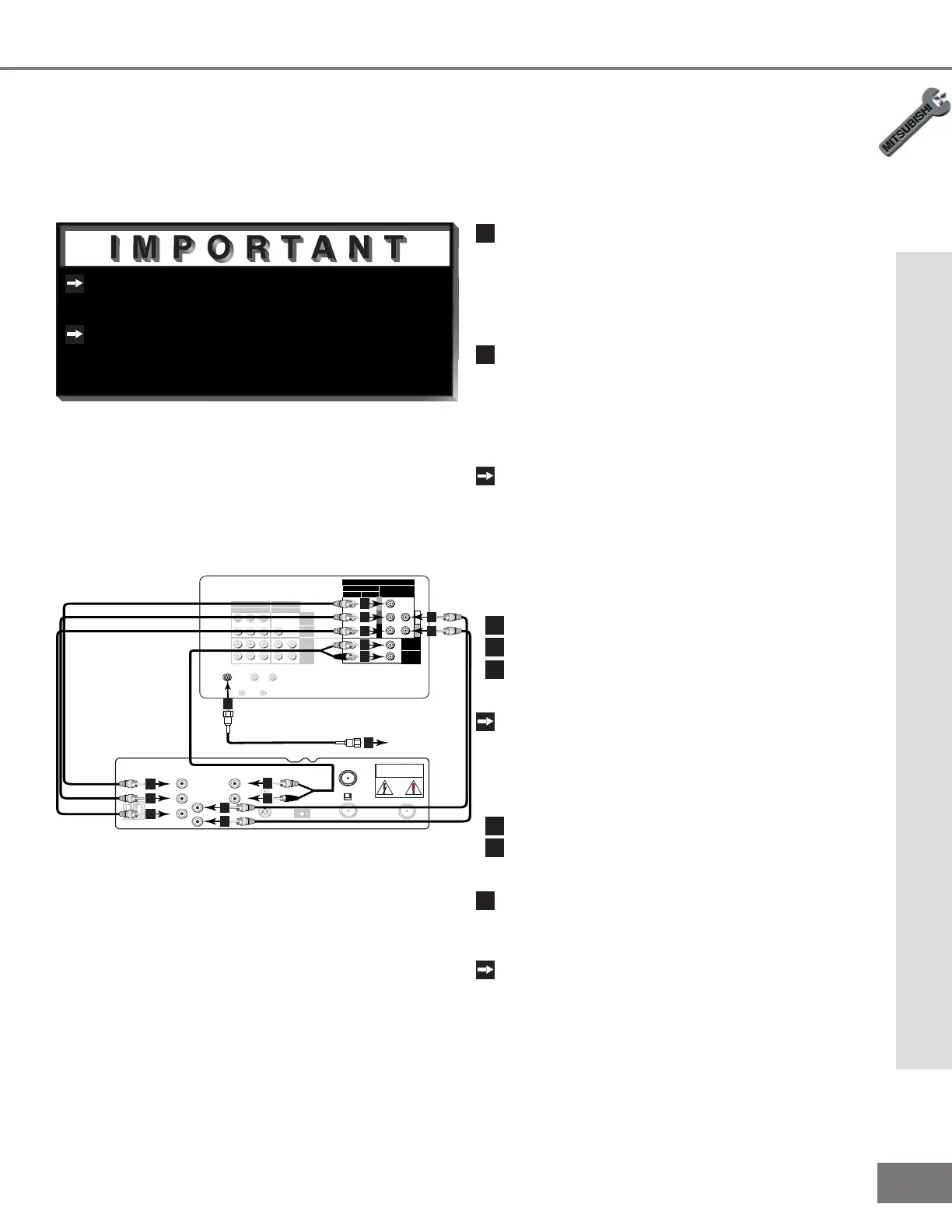

Figure 1. Connecting the DTV receiver with RGB video
connections.
Y
G
Pb
B
Pr
R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
COMPONENT
480i /480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i /480p /1080i
VIDEO
MONITOR
ACTIVE A/V
NETWORK
IR - HOME
THEATER
21
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
ANT-BLOOP OUTANT-A
AUDIO
L
R
H
V
G
R
B
S-VIDEO
VCR
CONTROL
DIGITAL
AUDIO OUT
PHONE JACK
RF
REMOTE
SATELLITE IN
IN FROM ANT
OUT TO TV
CH 3
CH 4
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
White
Red
3
3
3
6
7
6
7
4
4
4
4
3
3
3
TV back panel
2
Incoming Antenna,
or Cable.
2
See Appendix B, page 65, for RGB video
signal compatibility information.
For digital audio connections, see your
DTV receiver and A/V receiver Owner’s
Guides.
