8 INSPECTION AND MAINTENANCE
Mitsubishi Diesel Engine S16R & S16R2 OPERATION & MAINTENANCE MANUAL
164
Pub. No. K29001-00320 Revision: 1
Corresponding Equipment -
Location
Examples of corresponding equipment at the
engine side are given as follows. For the actual
location, refer to
"2 ENGINE - OUTLINE" (→ Page
73).

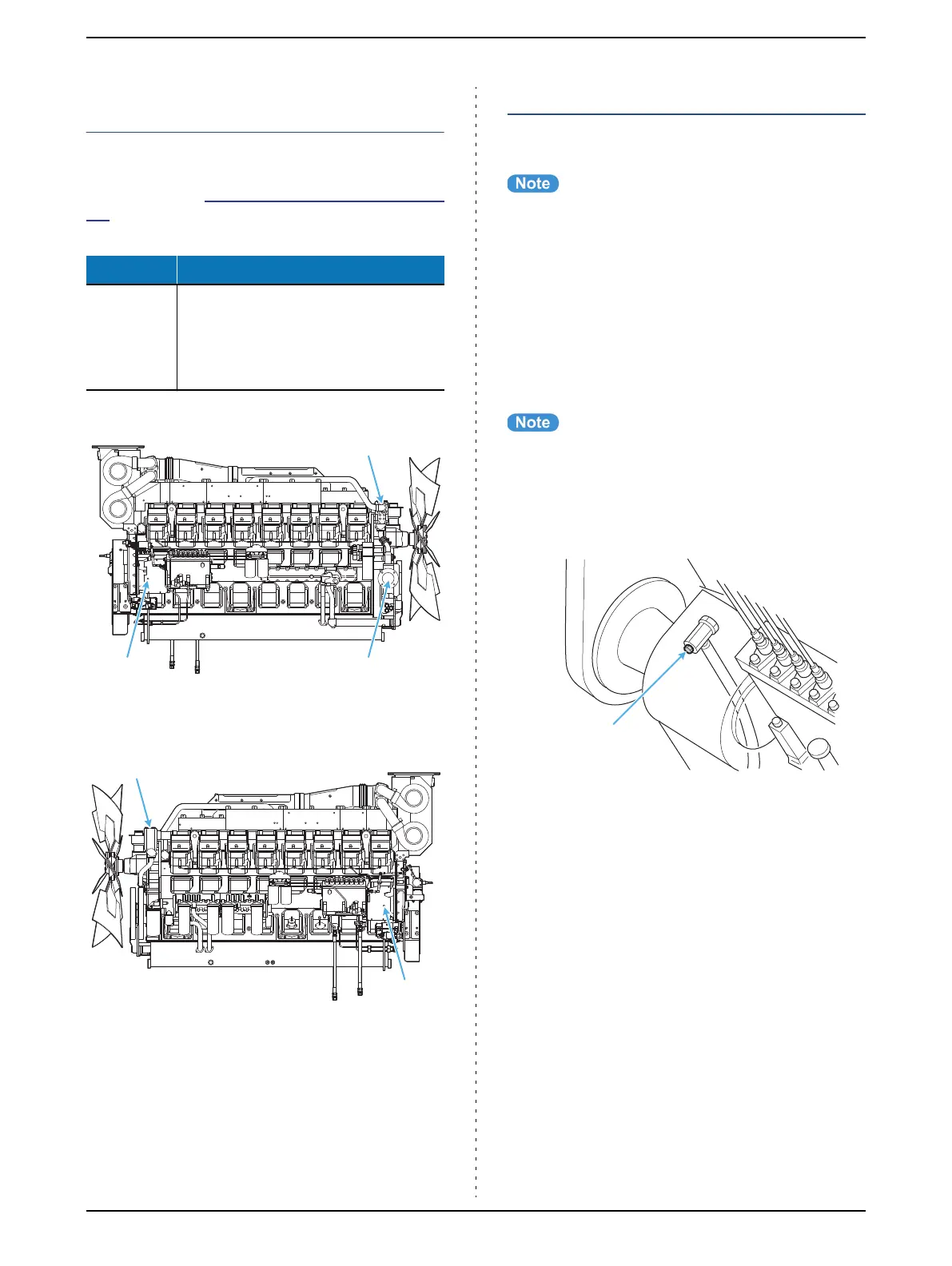

<S16R-PTA-C - Right-Side View>
Fig. 8-78 <S16R-PTA-C- Right-Side View>
<S16R-PTA-C - Left-Side View>
Fig. 8-79 <S16R-PTA-C - Left-Side View>
Coolant - Change
â– Coolant - Drain
• When draining coolant immediately
after engine operation, run the engine
at low idle for 5 to 6 minutes and check
that the coolant becomes to the room
temperature.
1 Prepare a container for receiving
drained coolant and place it under
the coolant drain cock on the engine
body.
• The customer is required to prepare
the container.
2 Slightly open the coolant drain cock
(1) on the engine body.
Fig. 8-80 Coolant Drain Cock on Engine Body
Table 8-7 Corresponding Equipment - Location
Part Name
(1) Coolant drain cock
(engine body)
(2) Thermostat
(3) Water pump
(1) (3)
(2)
(1)
(2)
(1)
To Next Page
