INLET AND EXHAUST SYSTEMS
11-2
1.

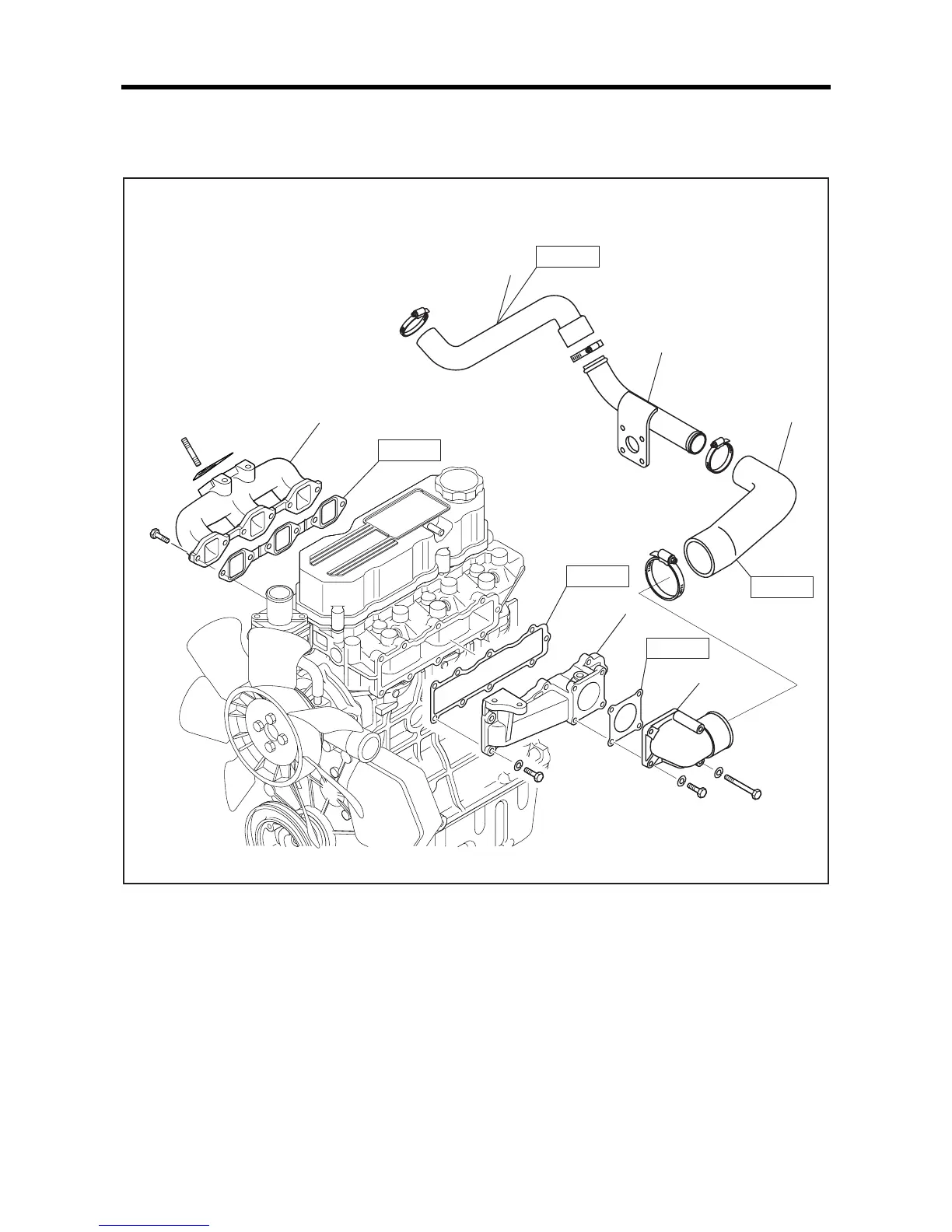

Removing inlet and exhaust sysytem
Removing inlet and exhaust sysytem
Removing sequence
5
1
3
2
6
4
The illustration is an example of S3Q2-T
Replace
Replace
Replace
Replace
Replace
1
Air hose
4
Air in
let elbow
2
Air hose
5
Inlet manifold
3
Air pipe
6
Exhaust manifold
127
129
