25
OCH688A

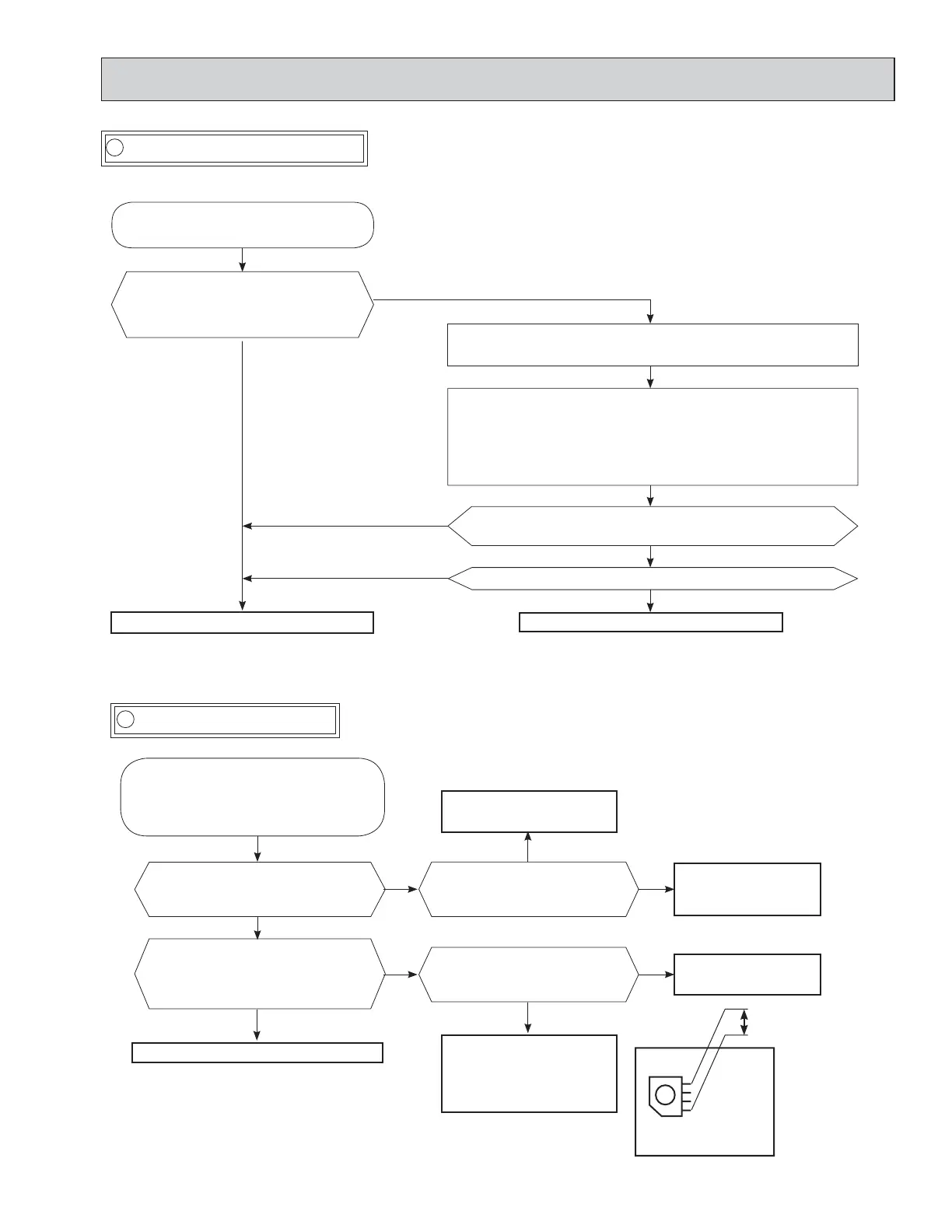

I Check of outdoor fan motor
Is the resistance between each termi-
nal of outdoor fan motor normal?
(Refer to"10-4. TROUBLE CRITERION
OF MAIN PARTS".)
Check the connection between the
connector CN931 and CN932.
Disconnect CN932 from the inverter P.C. board, and turn on the
power supply.
Rotate the outdoor fan motor manually and measure the voltage
of CN931.
Between 1(+) and 5(-)
Between 2(+) and 5(-)
Between 3(+) and 5(-)
Does the voltage between each terminal become 5 and 0
VDC repeatedly?
Does the outdoor fan motor rotate smoothly?
Replace the outdoor fan motor.
Replace the inverter P.C. board.
Yes
Yes
No
(Fixed to either 5 or 0 VDC)
No
No
Yes
J Check of power supply
Is there voltage 208/230 VAC
between the indoor terminal
block S1 and S2?
No
Yes
Replace the indoor
electronic control P.C.
board.
Rectify indoor/outdoor
connecting wire.
Yes
If light up, OK.
If blink, refer to
"10-3. HOW TO
PROCEED "SELF-DIAGNOSIS"".
Does the POWER lamp on remote
controller light up?
Does LED on the inverter P.C. board
light up or blink? (Refer to "10-6.TEST
POINT DIAGRAM AND VOLTAGE.")
No
Replace the inverter
P.C. board.
Is there bus-bar voltage 260-370 VDC
between DB61 (+) and DB61 (–) on
the inverter P.C. board?
(Refer to
"10-
6.TEST POINT DIAGRAM AND VOLTAGE.")
No
Check the electric parts in main circuit.
Yes
Yes
No
Disconnect the connector (CN61)
between compressor and intelligent
power module.
Turn ON power supply and press
the TEST button twice.
Inverter P.C. board
(Solder side)
DB61
260-370 VDC
To Next Page
