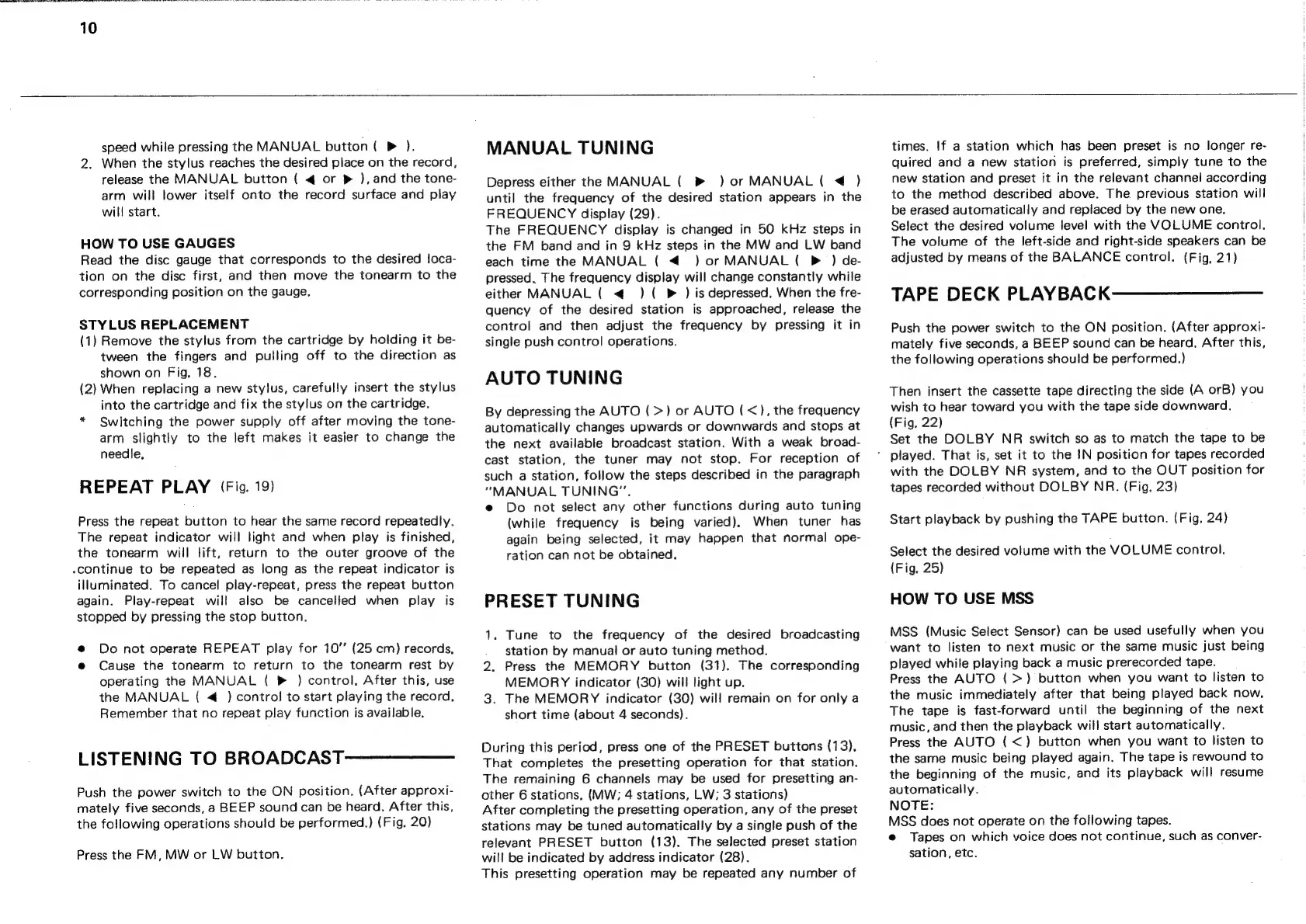

speed while pressing the MANUAL button ( P ).
2. When the stylus reaches the desired place on the record,
release the MANUAL button ( ¢ or p> ), and the tone-
arm will lower itself onto the record surface and play
will start,
HOW TO USE GAUGES
Read the disc gauge that corresponds to the desired loca-
tion on the disc first, and then move the tonearm to the
corresponding position on the gauge.
STYLUS REPLACEMENT
(1) Remove the stylus from the cartridge by holding it be-
tween the fingers and pulling off to the direction as
shown on Fig. 18.
(2) When replacing a new stylus, carefully insert the stylus
into the cartridge and fix the stylus on the cartridge.
* Switching the power supply off after moving the tone-
arm slightly to the left makes it easier to change the
needle,
REPEAT PLAY (Fig. 19)
Press the repeat button to hear the same record repeatedly.
The repeat indicator will tight and when play is finished,
the tonearm will lift, return to the outer groove of the
.continue to be repeated as long as the repeat indicator is
illuminated. To cancel play-repeat, press the repeat button
again. Play-repeat will also be cancelled when play is
stopped by pressing the stop button.
@ Do not operate REPEAT play for 10° (25 cm) records,
@ Cause the tonearm to return to the tonearm rest by
operating the MANUAL ( P ) control. After this, use
the MANUAL ( € ) control to start playing the record.
Remember that no repeat play function is available.
LISTENING TO BROADCAST
Push the power switch to the ON position. (After approxi-
mately five seconds, a BEEP sound can be heard. After this,
the following operations should be performed.) (Fig. 20)
Press the FM, MW or LW button.
MANUAL TUNING
Depress either the MANUAL { B® ) or MANUAL ( <4 )
until the frequency of the desired station appears in the
FREQUENCY display (29).
The FREQUENCY display is changed in 50 kHz steps in
the FM band and in 9 kHz steps in the MW and LW band
each time the MANUAL ( < ) or MANUAL ( P ) de-
pressed. The frequency display will change constantly while
either MANUAL ( << ) (B® ) is depressed. When the fre-
quency of the desired station is approached, release the
control and then adjust the frequency by pressing it in
single push control operations.
AUTO TUNING
By depressing the AUTO (>) or AUTO (<)}, the frequency
automatically changes upwards or downwards and stops at
the next available broadcast station. With a weak broad-
cast station, the tuner may not stop. For reception of
such a station, follow the steps described in the paragraph
“MANUAL TUNING”.
@ Do not select any other functions during auto tuning
(while frequency is being varied). When tuner has
again being selected, it may happen that normal ope-
ration can not be obtained.
PRESET TUNING
1. Tune to the frequency of the desired broadcasting
station by manual or auto tuning method.
2. Press the MEMORY button (31), The corresponding
MEMORY indicator (30) will light up.
3. The MEMORY indicator (30) will remain on for only a
short time (about 4 seconds).
During this period, press one of the PRESET buttons (13).
That completes the presetting operation for that station.
The remaining 6 channels may be used for presetting an-
other 6 stations, (MW; 4 stations, LW; 3 stations)
After completing the presetting operation, any of the preset
stations may be tuned automatically by a single push of the
relevant PRESET button (13). The selected preset station
will be indicated by address indicator (28).
This presetting operation may be repeated any number of
times. {f a station which has been preset is no longer re-
quired and a new station is preferred, simply tune to the
new station and preset it in the relevant channel according
to the method described above. The previous station will
be erased automatically and replaced by the new one.
Select the desired volume level with the VOLUME control.
The volume of the left-side and right-side speakers can be
adjusted by means of the BALANCE control. (Fig, 21)
TAPE DECK PLAYBACK
Push the power switch to the ON position. (After approxi-
mately five seconds, a BEEP sound can be heard. After this,
the following operations should be performed.)
Then insert the cassette tape directing the side (A orB) you
wish to hear toward you with the tape side downward.
(Fig, 22)
Set the DOLBY NR switch so as to match the tape to be
* played. That is, set it to the IN position for tapes recorded
with the DOLBY NR system, and to the OUT position for
tapes recorded without DOLBY NR. (Fig. 23)
Start playback by pushing the TAPE button. (Fig, 24)
Select the desired volume with the VOLUME control.
(Fig. 25)
HOW TO USE MSS
MSS (Music Select Sensor) can be used usefully when you
want to listen to next music or the same music just being
played while playing back a music prerecorded tape.
Press the AUTO (>) button when you want to listen to
the music immediately after that being played back now.
The tape is fast-forward until the beginning of the next
music, and then the playback will start automatically.
Press the AUTO ( <) button when you want to listen to
the same music being played again. The tape is rewound to
the beginning of the music, and its playback will resume
automatically.
NOTE:
MSS does not operate on the following tapes.
@ Tapes on which voice does not continue, such as conver-
sation, etc.
